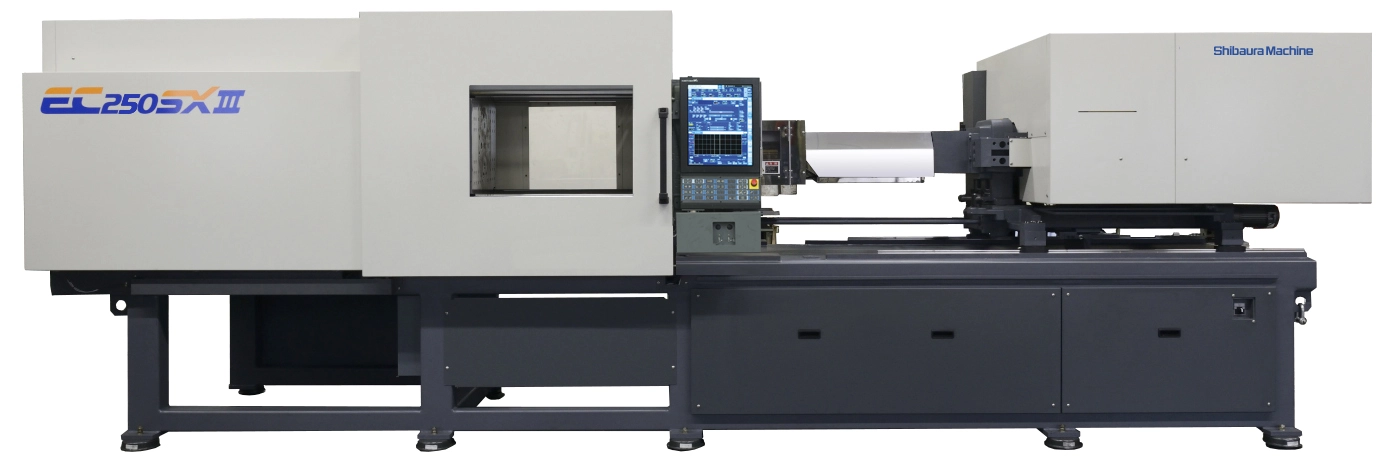

NEW Shibaura Machine EC250SXIIIV70-U48 6Y
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 250 | 230.425 t |
| Barrel Code | 6Y | 6Y |
| Shot Volume (PS) | 7.3 oz | 208.1 g |
| Shot Volume (PE) | 5.8 oz | 165 g |
| Screw Diameter | 1.57" | 39.878 mm |
| Maximum Injection Pressure | 36700 psi | |
| Maximum Holding Pressure | 36700 psi | |
| Screw Speed STD | 320 rpm | 320 RPM |
| Injection Rate STD | 201 cm3/sec | 5.7 m³/min. |
| Injection Rate High Speed | 440 cm3/sec | 12.5 m³/min. |
| Screw Torque STD | 761 NxM | 761 NxM |
| Plasticizing Capacity (PS) STD | 30.6 g/sec | 867.5 g |
| Nozzle Touch Force | 3.3 T | 2.994 t |
| Tie Bar Distance H | 24" | 609.6 mm |
| Tie Bar Distance V | 22" | 558.8 mm |
| Platen Dimension H | 34.6" | 878.84 mm |
| Platen Dimension V | 32.7" | 830.58 mm |
| Clamp Stroke | 21.7" | 551.18 mm |
| Maximum Daylight | 48.4" | 1,229.4 mm |
| Mold Height Min | 9.84" | 249.94 mm |
| Mold Height Max | 26.8" | 680.72 mm |
| Ejector Force | 5.5 T | 4.99 t |
| Ejector Stroke | 5.12" | 130.05 mm |
| Main Breaker Electric Capacity | 59 kva | |
| Heater Capacity | 13.6 kw | 13.6 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 20.4 x 5.4 x 6.5 Feet | 20.4 x 5.4 x 6.5 Feet |
| Weight | 10.2 US Ton | 10.2 US Ton |
