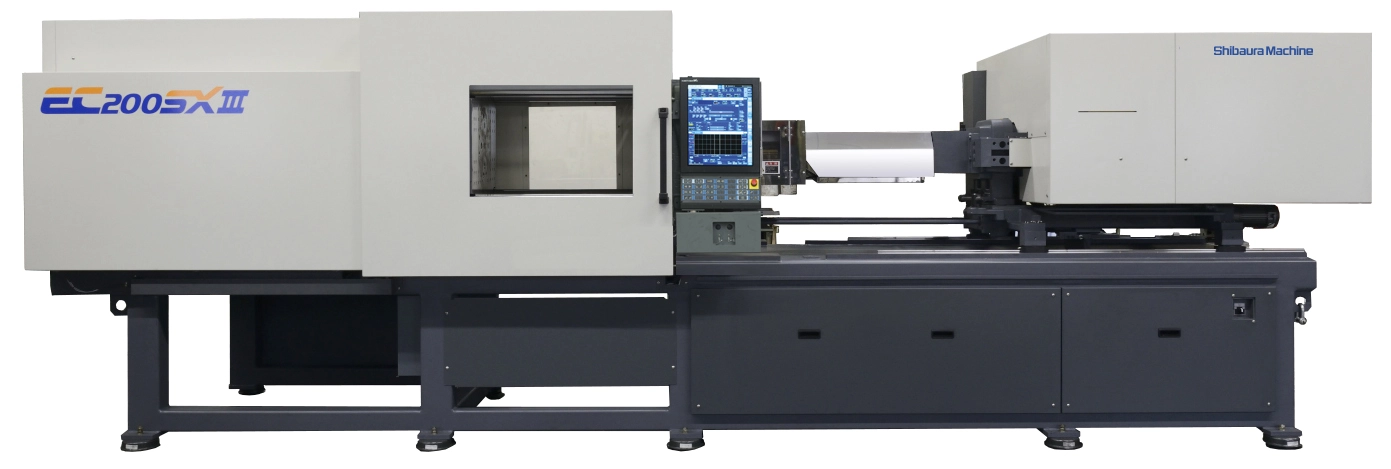

NEW Shibaura Machine EC200SXIIIV70-U48 8B
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 200 | 179.623 t |
| Barrel Code | 8B | 8B |
| Shot Volume (PS) | 15.4 oz | 436.6 g |
| Shot Volume (PE) | 12.2 oz | 345.9 g |
| Screw Diameter | 2.17" | 55.118 mm |
| Maximum Injection Pressure | 23900 psi | |
| Maximum Holding Pressure | 23900 psi | |
| Screw Speed STD | 230 rpm | 230 RPM |
| Injection Rate STD | 380 cm3/sec | 10.8 m³/min. |
| Injection Rate High Speed | 832 cm3/sec | 23.6 m³/min. |
| Screw Torque STD | 1421 NxM | 1421 NxM |
| Plasticizing Capacity (PS) STD | 52.8 g/sec | 1,496.9 g |
| Nozzle Touch Force | 3.3 T | 2.994 t |
| Tie Bar Distance H | 22" | 558.8 mm |
| Tie Bar Distance V | 20.1" | 510.54 mm |
| Platen Dimension H | 31.1" | 789.94 mm |
| Platen Dimension V | 29.1" | 739.14 mm |
| Clamp Stroke | 17.7" | 449.58 mm |
| Maximum Daylight | 41.3" | 1,049 mm |
| Mold Height Min | 7.87" | 199.9 mm |
| Mold Height Max | 23.6" | 599.44 mm |
| Ejector Force | 5.5 T | 4.99 t |
| Ejector Stroke | 5.12" | 130.05 mm |
| Main Breaker Electric Capacity | 61 kva | |
| Heater Capacity | 15.8 kw | 15.8 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 19.9 x 5.1 x 5.9 Feet | 19.9 x 5.1 x 5.9 Feet |
| Weight | 8.0 US Ton | 8.0 US Ton |
