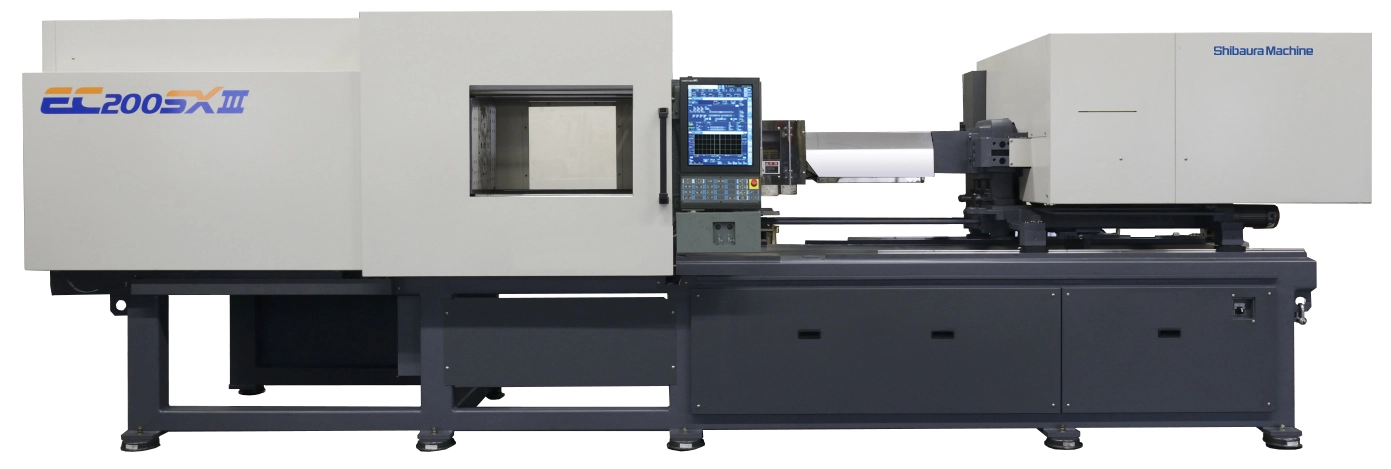

NEW Shibaura Machine EC200SXIIIV70-U34 4B
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 200 | 179.623 t |
| Barrel Code | 4B | 4B |
| Shot Volume (PS) | 8.1 oz | 229.9 g |
| Shot Volume (PE) | 6.5 oz | 184.8 g |
| Screw Diameter | 1.77" | 44.958 mm |
| Maximum Injection Pressure | 22900 psi | |
| Maximum Holding Pressure | 22900 psi | |
| Screw Speed STD | 285 rpm | 285 RPM |
| Injection Rate STD | 318 cm3/sec | 9 m³/min. |
| Injection Rate High Speed | 636 cm3/sec | 18 m³/min. |
| Screw Torque STD | 761 NxM | 761 NxM |
| Plasticizing Capacity (PS) STD | 33.3 g/sec | 944 g |
| Nozzle Touch Force | 3.3 T | 2.994 t |
| Tie Bar Distance H | 22" | 558.8 mm |
| Tie Bar Distance V | 20.1" | 510.54 mm |
| Platen Dimension H | 31.1" | 789.94 mm |
| Platen Dimension V | 29.1" | 739.14 mm |
| Clamp Stroke | 17.7" | 449.58 mm |
| Maximum Daylight | 41.3" | 1,049 mm |
| Mold Height Min | 7.87" | 199.9 mm |
| Mold Height Max | 23.6" | 599.44 mm |
| Ejector Force | 5.5 T | 4.99 t |
| Ejector Stroke | 5.12" | 130.05 mm |
| Main Breaker Electric Capacity | 48 kva | |
| Heater Capacity | 11.9 kw | 11.9 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 18.7 x 5.1 x 5.9 Feet | 18.7 x 5.1 x 5.9 Feet |
| Weight | 7.7 US Ton | 7.7 US Ton |
