New | Build-to-Order

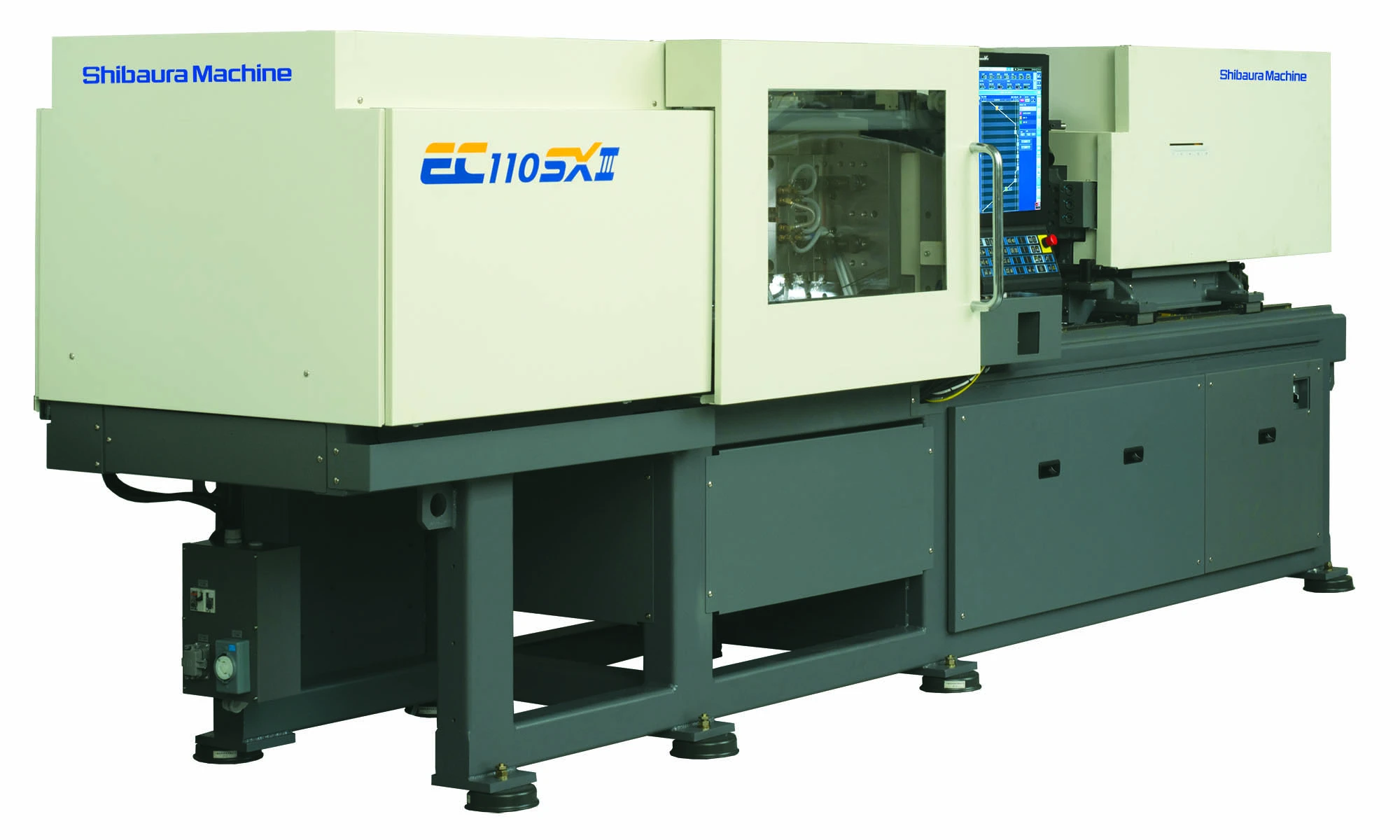

NEW Shibaura Machine EC110SXIIIV70-U34 4B

Canada
485Listings|84Followers
Overview
Injection Molding Machines

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

Specs
Type
All Electric
All Electric
Clamping Force Tonnage
110
99.79 t
Barrel Code
4B
4B
Shot Volume (PS)
8.1 oz
229.9 g
Shot Volume (PE)
6.5 oz
184.8 g
Screw Diameter
1.77"
44.958 mm
Maximum Injection Pressure
22900 psi
Maximum Holding Pressure
22900 psi
Screw Speed STD
285 rpm
285 RPM
Injection Rate STD
318 cm3/sec
9 m³/min.
Injection Rate High Speed
636 cm3/sec
18 m³/min.
Screw Torque STD
761 NxM
761 NxM
Plasticizing Capacity (PS) STD
33.3 g/sec
944 g
Nozzle Touch Force
2 T
1.814 t
Tie Bar Distance H
18.1"
459.74 mm
Tie Bar Distance V
16.1"
408.94 mm
Platen Dimension H
26"
660.4 mm
Platen Dimension V
24"
609.6 mm
Clamp Stroke
13.8"
350.52 mm
Maximum Daylight
35.4"
899.16 mm
Mold Height Min
7.1"
180.34 mm
Mold Height Max
21.7"
551.18 mm
Ejector Force
3.3 T
2.994 t
Ejector Stroke
3.54"
89.916 mm
Main Breaker Electric Capacity
45 kva
Heater Capacity
11.9 kw
11.9 kW
Control
CNC (V70)
CNC (V70)
Dimensions
16.1 x 4.2 x 5.4 Feet
16.1 x 4.2 x 5.4 Feet
Weight
4.7 US Ton
4.7 US Ton
