USED 2005 AIR-VAC ONYX29

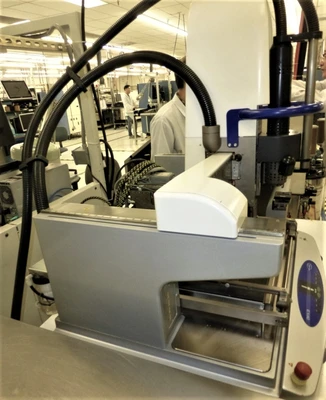

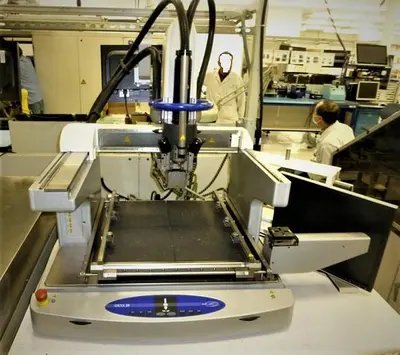

Air-Vac Onyx29 Rework Station
Vintage: 2005
Lead Free Capable
Site cleaning feature
9 micron placement accuracy (0.0003”) @ 3 Sigma High volume rework
Ultra-fast heat up for Lead-Free Rework
Fast controlled board cool down
Process repeatability
Uniform joint temperature
Precision air flow
Simple, fast & easy to use software
Large, clear images for component alignment
Components up to 3.0” (75mm) Micro site cleaning Clean and uniform pads for replacement device Solder dots or lines down to 0.010”
Dispensing of solder paste, epoxy, under fill or flux Heater
Specifications:

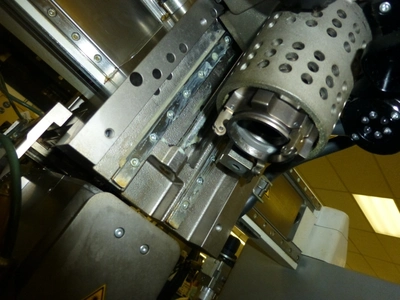

Board size minimum = 3.0"W Board size maximum = 20.0"W x Unlimited Top and bottom side clearance = 1.20" (optional 2.75") Bottom heating: 19" x 19", 4 zones, 6000 watts Axes speed (X,Y,Z) = .15 ms Axes resolution (X,Y,Z) = .001 mm Top heater power Powerful 2000 watt top heater. Lead-Free Infra-red (IR) bottom heating technology. The heating element provides extremely uniform preheat over the entire surface. The bottom heating panel is 19" x 19" and features four (4) independently programmable heating zones (6000 watts).
Programmable cold air injection and linear air knife provide precise cool down control to optimize time over reflow. Interactive thermal profiling provides "on-the-fly" adjustments.

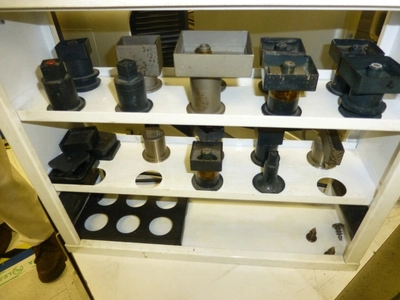

Includes: 10 nozzles. Additional nozzles can be purchased.
