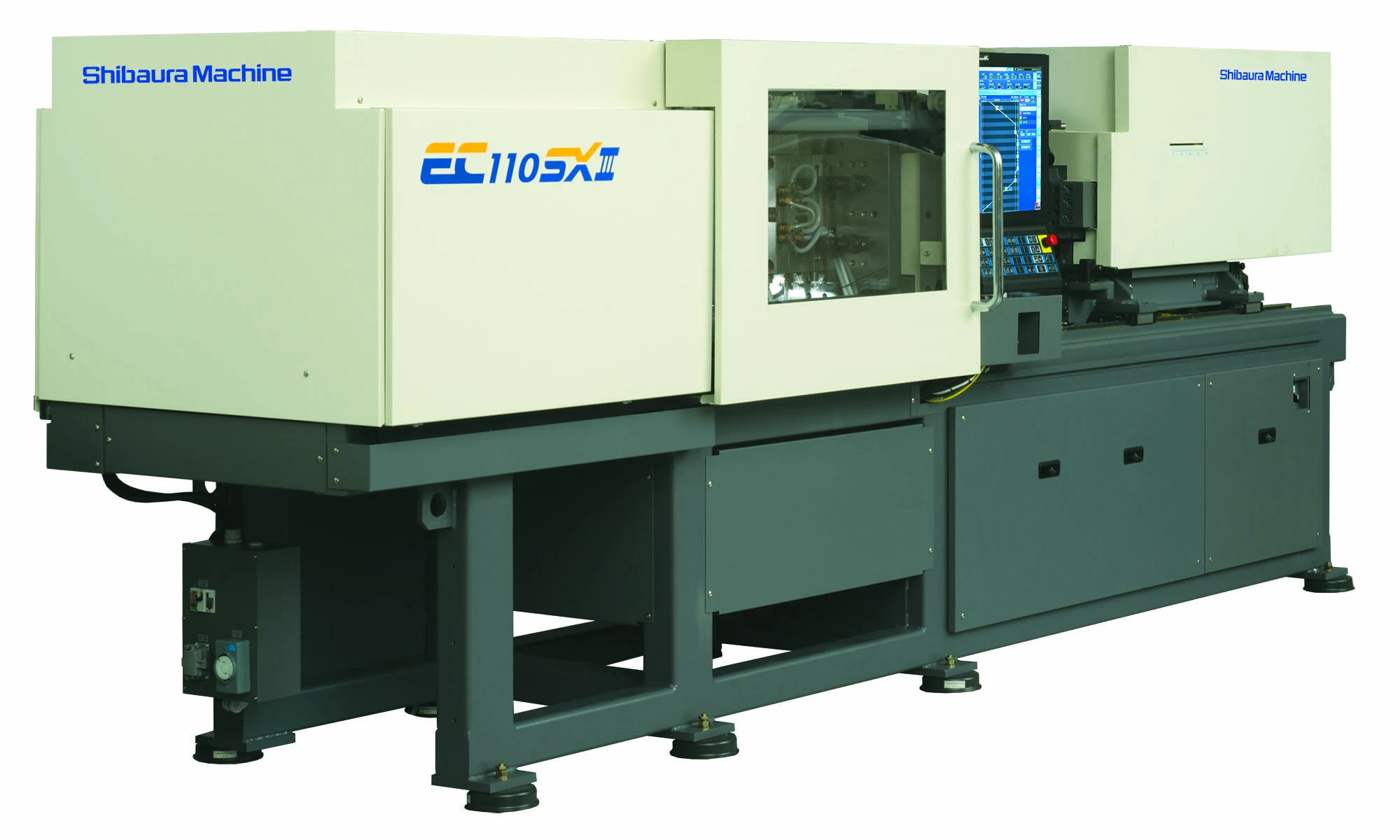

NEW Shibaura Machine EC110SXIIIV70-U34 4A
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 110 | 99.79 t |
| Barrel Code | 4A | 4A |
| Shot Volume (PS) | 6.4 oz | 180 g |
| Shot Volume (PE) | 5.1 oz | 144.9 g |
| Screw Diameter | 1.57" | 39.878 mm |
| Maximum Injection Pressure | 29000 psi | |
| Maximum Holding Pressure | 29000 psi | |
| Screw Speed STD | 320 rpm | 320 RPM |
| Injection Rate STD | 251 cm3/sec | 7.1 m³/min. |
| Injection Rate High Speed | 503 cm3/sec | 14.2 m³/min. |
| Screw Torque STD | 761 NxM | 761 NxM |
| Plasticizing Capacity (PS) STD | 30.6 g/sec | 867.5 g |
| Nozzle Touch Force | 2 T | 1.814 t |
| Tie Bar Distance H | 18.1" | 459.74 mm |
| Tie Bar Distance V | 16.1" | 408.94 mm |
| Platen Dimension H | 26" | 660.4 mm |
| Platen Dimension V | 24" | 609.6 mm |
| Clamp Stroke | 13.8" | 350.52 mm |
| Maximum Daylight | 35.4" | 899.16 mm |
| Mold Height Min | 7.1" | 180.34 mm |
| Mold Height Max | 21.7" | 551.18 mm |
| Ejector Force | 3.3 T | 2.994 t |
| Ejector Stroke | 3.54" | 89.916 mm |
| Main Breaker Electric Capacity | 45 kva | |
| Heater Capacity | 11.2 kw | 11.2 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 16.1 x 4.2 x 5.4 Feet | 16.1 x 4.2 x 5.4 Feet |
| Weight | 4.7 US Ton | 4.7 US Ton |
