New | Build-to-Order

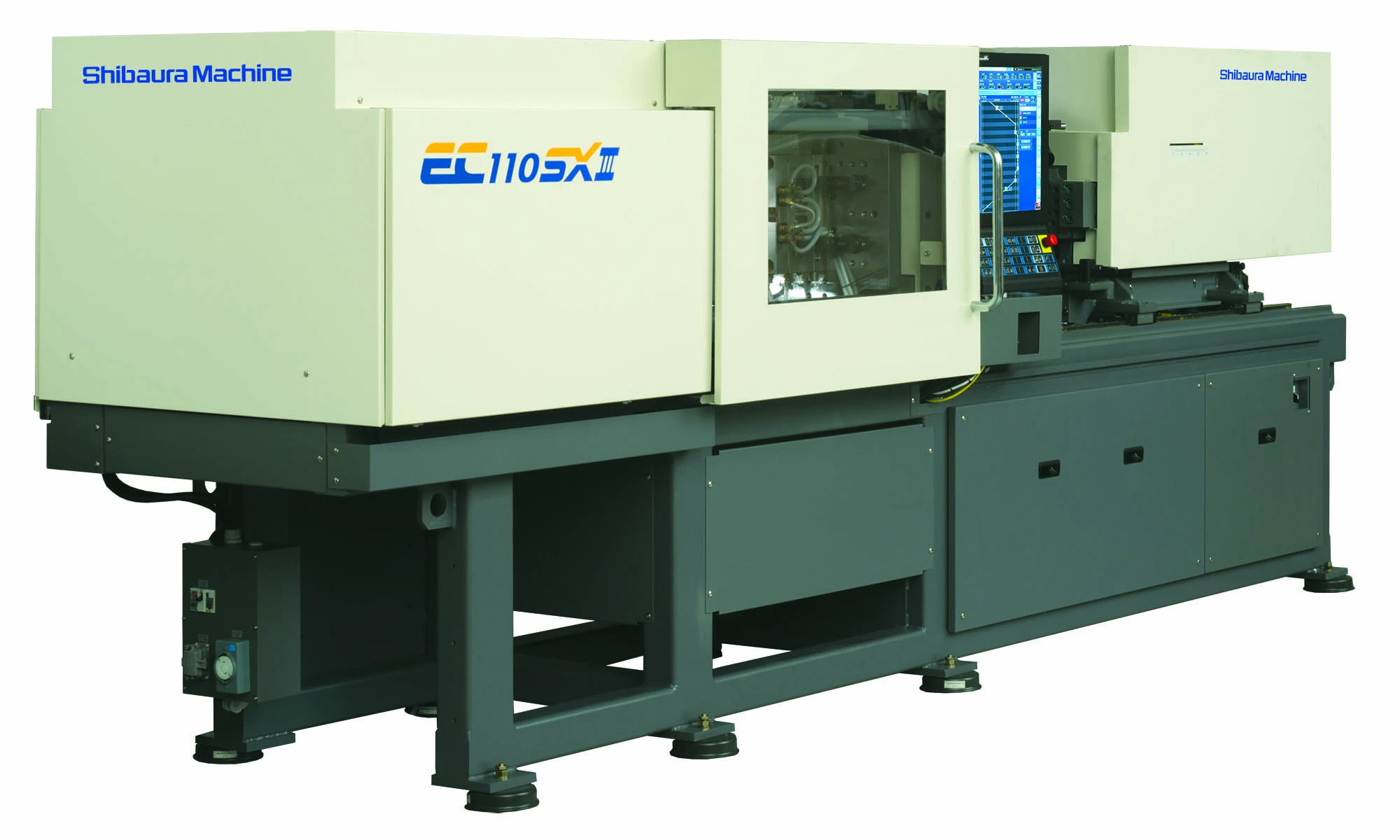

NEW Shibaura Machine EC110SXIIIV70-U34 4Y

Canada
487Listings|87Followers
Overview
Injection Molding Machines

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

Specs
Type
All Electric
All Electric
Clamping Force Tonnage
110
99.79 t
Barrel Code
4Y
4Y
Shot Volume (PS)
5.1 oz
144.9 g
Shot Volume (PE)
4.1 oz
115.1 g
Screw Diameter
1.42"
36.068 mm
Maximum Injection Pressure
35800 psi
Maximum Holding Pressure
35800 psi
Screw Speed STD
350 rpm
350 RPM
Injection Rate STD
204 cm3/sec
5.8 m³/min.
Injection Rate High Speed
407 cm3/sec
11.5 m³/min.
Screw Torque STD
407 NxM
407 NxM
Plasticizing Capacity (PS) STD
23.1 g/sec
654.9 g
Nozzle Touch Force
2 T
1.814 t
Tie Bar Distance H
18.1"
459.74 mm
Tie Bar Distance V
16.1"
408.94 mm
Platen Dimension H
26"
660.4 mm
Platen Dimension V
24"
609.6 mm
Clamp Stroke
13.8"
350.52 mm
Maximum Daylight
35.4"
899.16 mm
Mold Height Min
7.1"
180.34 mm
Mold Height Max
21.7"
551.18 mm
Ejector Force
3.3 T
2.994 t
Ejector Stroke
3.54"
89.916 mm
Main Breaker Electric Capacity
45 kva
Heater Capacity
11.2 kw
11.2 kW
Control
CNC (V70)
CNC (V70)
Dimensions
16.1 x 4.2 x 5.4 Feet
16.1 x 4.2 x 5.4 Feet
Weight
4.7 US Ton
4.7 US Ton
