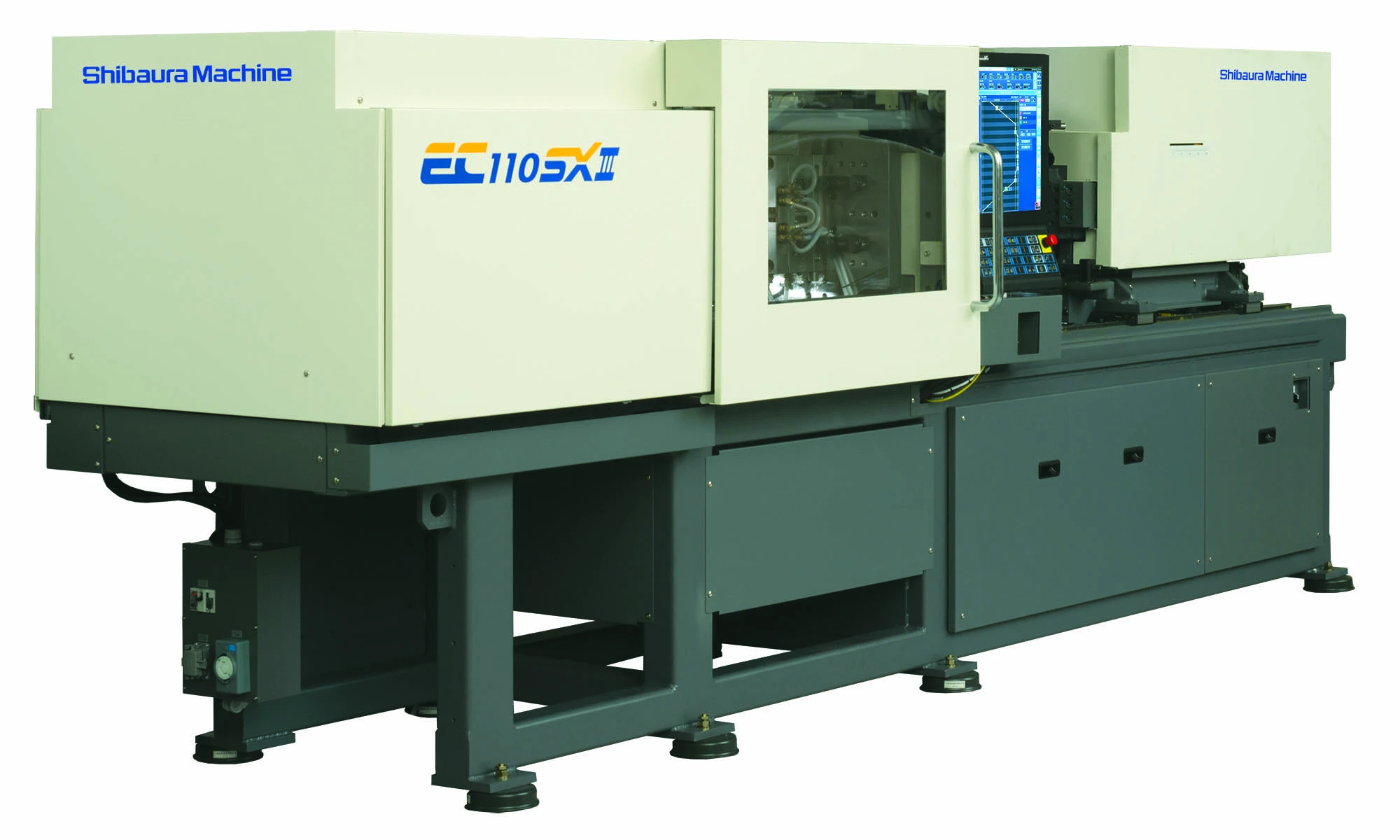

NEW Shibaura Machine EC110SXIIIV70-U32 2B
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 110 | 99.79 t |
| Barrel Code | 2B | 2B |
| Shot Volume (PS) | 4.2 oz | 119.9 g |
| Shot Volume (PE) | 3.4 oz | 95 g |
| Screw Diameter | 1.42" | 36.068 mm |
| Maximum Injection Pressure | 25200 psi | |
| Maximum Holding Pressure | 25200 psi | |
| Screw Speed STD | 350 rpm | 350 RPM |
| Injection Rate STD | 204 cm3/sec | 5.8 m³/min. |
| Screw Torque STD | 407 NxM | 407 NxM |
| Plasticizing Capacity (PS) STD | 23.1 g/sec | 654.9 g |
| Nozzle Touch Force | 2 T | 1.814 t |
| Tie Bar Distance H | 18.1" | 459.74 mm |
| Tie Bar Distance V | 16.1" | 408.94 mm |
| Platen Dimension H | 26" | 660.4 mm |
| Platen Dimension V | 24" | 609.6 mm |
| Clamp Stroke | 13.8" | 350.52 mm |
| Maximum Daylight | 35.4" | 899.16 mm |
| Mold Height Min | 7.1" | 180.34 mm |
| Mold Height Max | 21.7" | 551.18 mm |
| Ejector Force | 3.3 T | 2.994 t |
| Ejector Stroke | 3.54" | 89.916 mm |
| Main Breaker Electric Capacity | 35 kva | |
| Heater Capacity | 7.6 kw | 7.6 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 15.2 x 4.2 x 5.4 Feet | 15.2 x 4.2 x 5.4 Feet |
| Weight | 4.6 US Ton | 4.6 US Ton |
