New | Build-to-Order

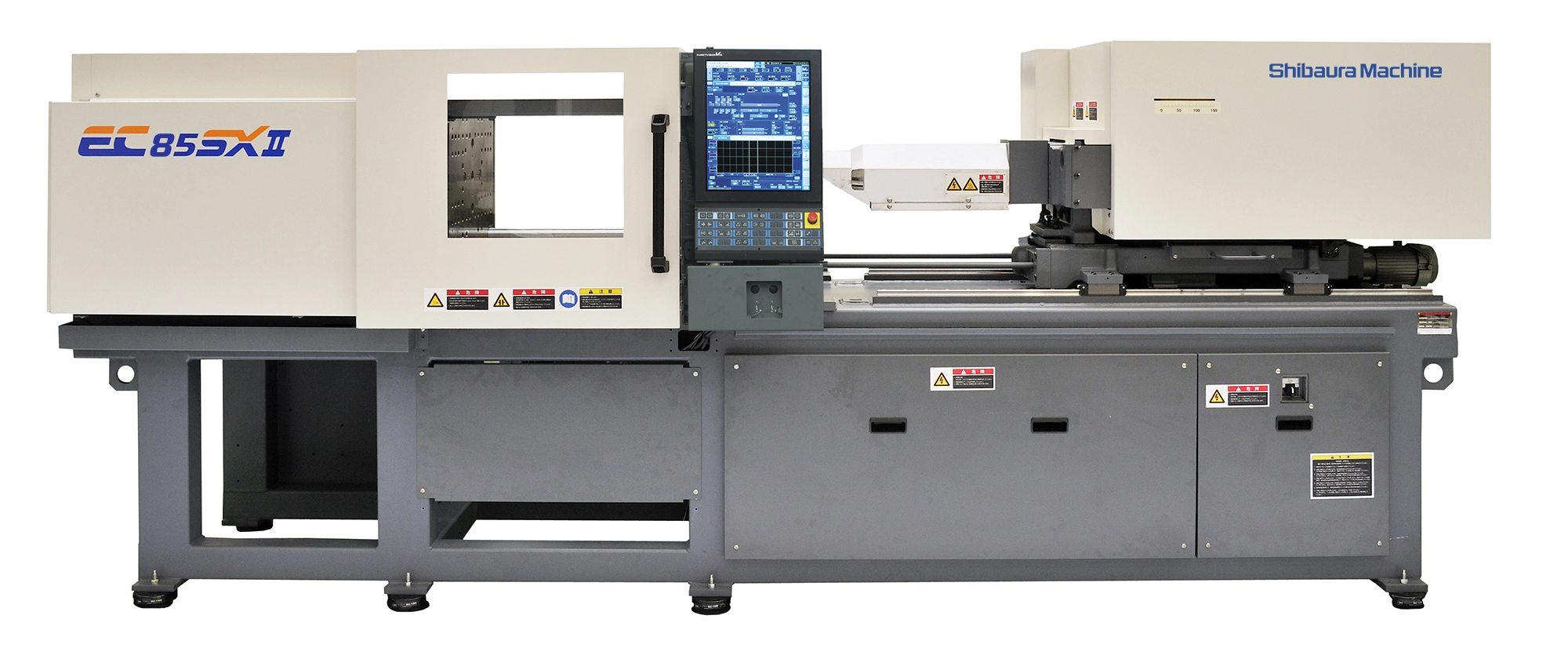

NEW Shibaura Machine EC85SXIIIV70-U22-2B

Canada
485Listings|84Followers
Overview
Injection Molding Machines

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

Specs
Type
All Electric
All Electric
Clamping Force Tonnage
85
75.296 t
Barrel Code
2B
2B
Shot Volume (PS)
4.2 oz
119.9 g
Shot Volume (PE)
3.4 oz
95 g
Screw Diameter
1.42"
36.068 mm
Maximum Injection Pressure
25200 psi
Maximum Holding Pressure
25200 psi
Screw Speed STD
350 rpm
350 RPM
Injection Rate STD
204 cm3/sec
5.8 m³/min.
Screw Torque STD
407 NxM
407 NxM
Plasticizing Capacity (PS) STD
23.1 g/sec
654.9 g
Nozzle Touch Force
2 T
1.814 t
Tie Bar Distance H
16.1"
408.94 mm
Tie Bar Distance V
14.2"
360.68 mm
Platen Dimension H
22.8"
579.12 mm
Platen Dimension V
20.9"
530.86 mm
Clamp Stroke
11.8"
299.72 mm
Maximum Daylight
30.3"
769.62 mm
Mold Height Min
5.9"
149.86 mm
Mold Height Max
18.5"
469.9 mm
Ejector Force
2.2 T
1.996 t
Ejector Stroke
2.76"
70.104 mm
Main Breaker Electric Capacity
35 kva
Heater Capacity
7.6 kw
7.6 kW
Control
CNC (V70)
CNC (V70)
Dimensions
13.7 x 4.0 x 5.2 Feet
13.7 x 4.0 x 5.2 Feet
Weight
3.6 US Ton
3.6 US Ton
