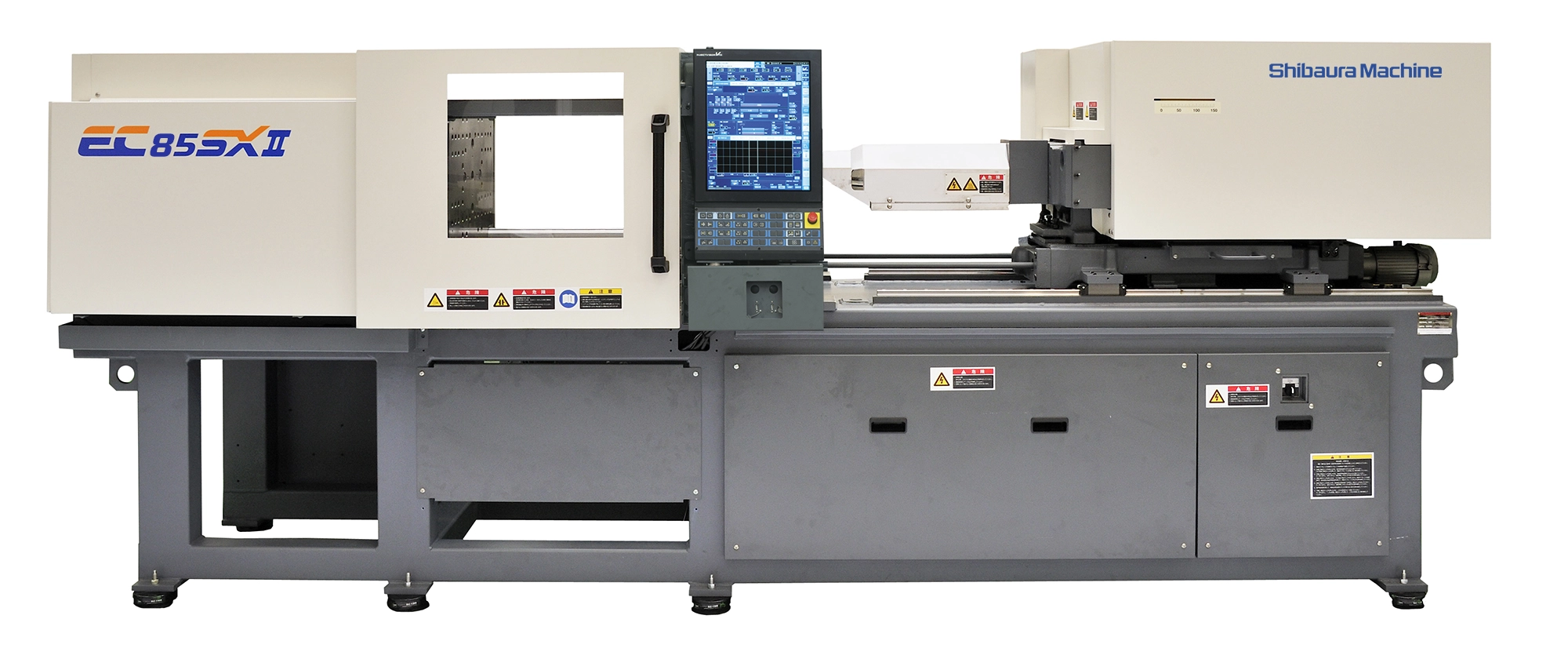

NEW Shibaura Machine EC85SXIIIV70-U22-2A
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 85 | 75.296 t |
| Barrel Code | 2A | 2A |
| Shot Volume (PS) | 3.3 oz | 94.1 g |
| Shot Volume (PE) | 2.6 oz | 75.1 g |
| Screw Diameter | 1.26" | 32.004 mm |
| Maximum Injection Pressure | 31900 psi | |
| Maximum Holding Pressure | 31900 psi | |
| Screw Speed STD | 390 rpm | 390 RPM |
| Injection Rate STD | 161 cm3/sec | 4.6 m³/min. |
| Screw Torque STD | 407 NxM | 407 NxM |
| Plasticizing Capacity (PS) STD | 16.9 g/sec | 479.1 g |
| Nozzle Touch Force | 2 T | 1.814 t |
| Tie Bar Distance H | 16.1" | 408.94 mm |
| Tie Bar Distance V | 14.2" | 360.68 mm |
| Platen Dimension H | 22.8" | 579.12 mm |
| Platen Dimension V | 20.9" | 530.86 mm |
| Clamp Stroke | 11.8" | 299.72 mm |
| Maximum Daylight | 30.3" | 769.62 mm |
| Mold Height Min | 5.9" | 149.86 mm |
| Mold Height Max | 18.5" | 469.9 mm |
| Ejector Force | 2.2 T | 1.996 t |
| Ejector Stroke | 2.76" | 70.104 mm |
| Main Breaker Electric Capacity | 35 kva | |
| Heater Capacity | 6.8 kw | 6.8 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 13.7 x 4.0 x 5.2 Feet | 13.7 x 4.0 x 5.2 Feet |
| Weight | 3.6 US Ton | 3.6 US Ton |
