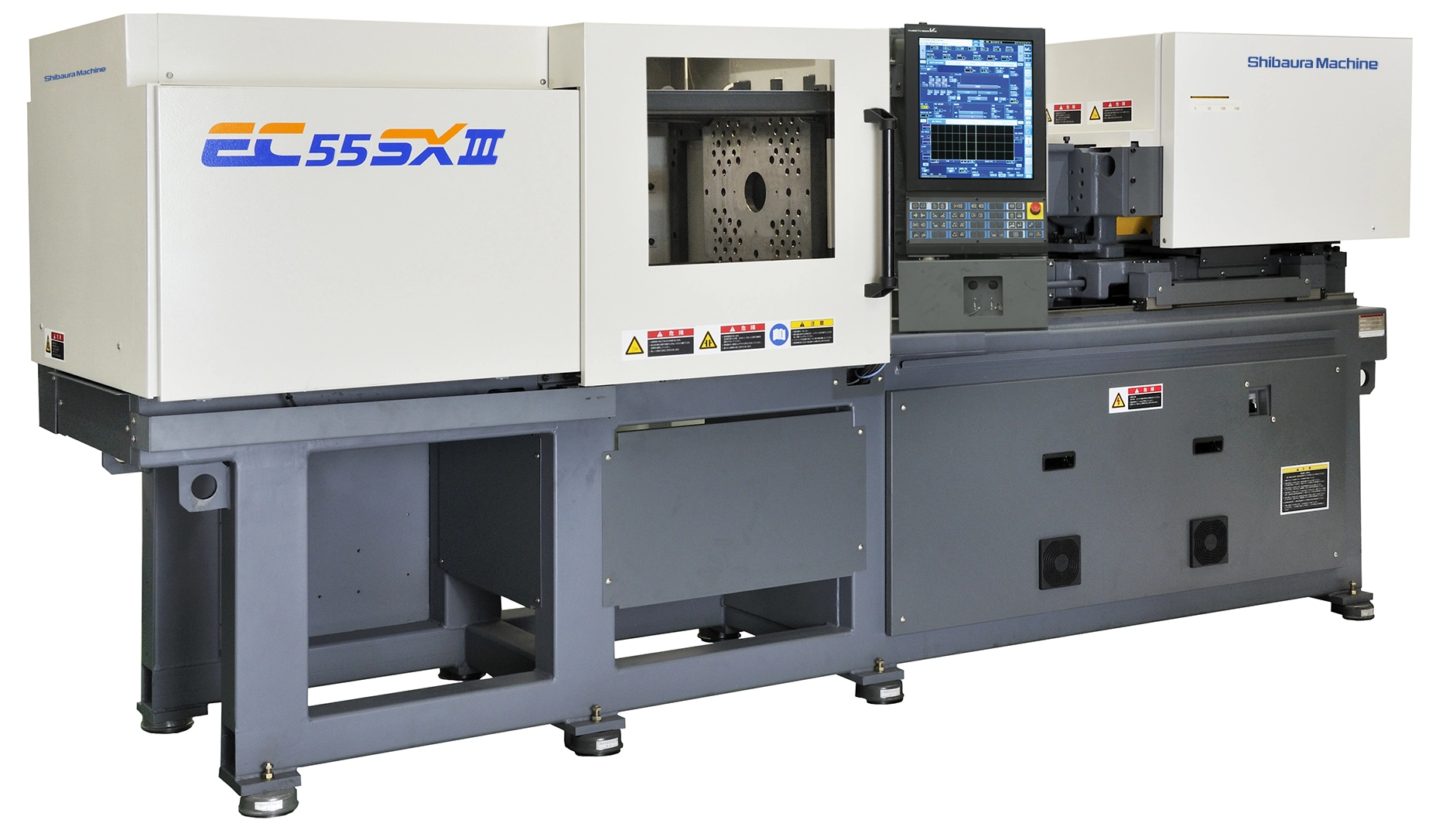

NEW Shibaura Machine EC55SXIIIV70-U1.5 1.5A
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 55 T | 49.895 t |
| Barrel Code | 1.5A | 1.5A |
| Shot Volume (PS) | 2.2 oz | 62.9 g |
| Shot Volume (PE) | 1.8 oz | 49.9 g |
| Screw Diameter | 1.1" | 27.94 mm |
| Maximum Injection Pressure | 31900 psi | |
| Maximum Holding Pressure | 31900 psi | |
| Screw Speed STD | 390 rpm | 390 RPM |
| Injection Rate STD | 123 cm3/sec | 3.5 m³/min. |
| Screw Torque STD | 280 NxM | 280 NxM |
| Plasticizing Capacity (PS) STD | 9.7 g/sec | 275 g |
| Nozzle Touch Force | 2 T | 1.814 t |
| Tie Bar Distance H | 16.1" | 408.94 mm |
| Tie Bar Distance V | 14.2" | 360.68 mm |
| Platen Dimension H | 20.1" | 510.54 mm |
| Platen Dimension V | 18.1" | 459.74 mm |
| Clamp Stroke | 11.8" | 299.72 mm |
| Maximum Daylight | 57.9" | 1,470.7 mm |
| Mold Height Min | 5.9" | 149.86 mm |
| Mold Height Max | 14.5" | 368.3 mm |
| Ejector Force | 2.2 T | 1.996 t |
| Ejector Stroke | 2.76" | 70.104 mm |
| Main Breaker Electric Capacity | 28 kva | |
| Heater Capacity | 6.6 kw | 6.6 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 12.6 x 4.0 x 5.2 Feet | 12.6 x 4.0 x 5.2 Feet |
| Weight | 3.4 US Ton | 3.4 US Ton |
