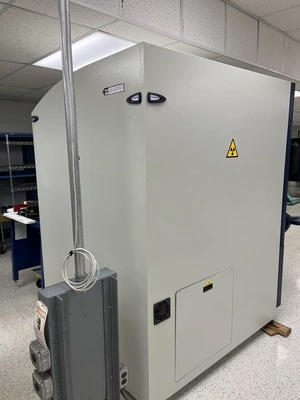

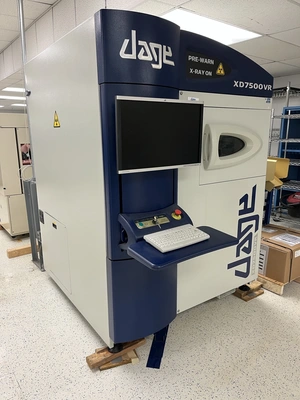

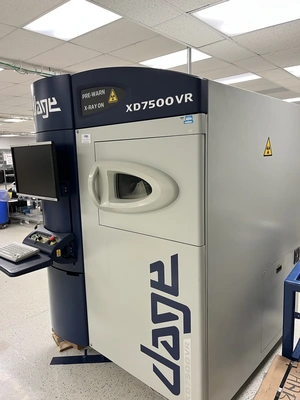

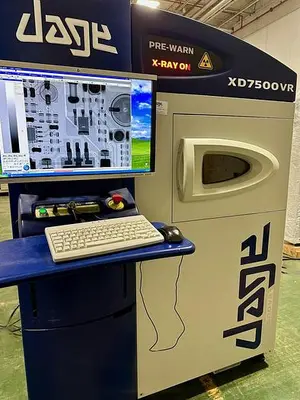

Dage XD7500VR X-ray Inspection System
DOM: 2008
Standalone
Open Tube
160kV
70 degree Oblique view
1,500 X Geometric Magnification (7,000 X system magnification)
Easy Collision-Free, High Magnification Inspection – even at oblique angle views
Maximum Board Size / Inspection Area – 20” x 17.5” (508 x 444 mm) with no oblique views
Maximum Inspection Area – 18” x 16” (458 x 407 mm) with oblique views

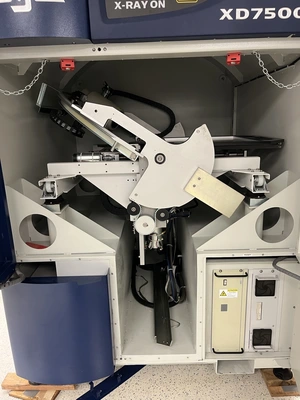

70° Oblique Angle Views – for any location 360° around entire inspection area
1.3 Mpixel Digital CCD Camera – 25 frames per second ‘real time’ image acquisition

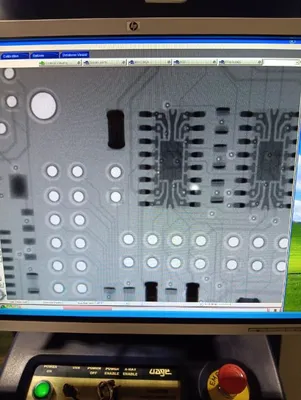

20” Digital Colour Flat Panel, Wide-Screen, LCD Operator Display
Tube:
High Resolution
950nm (0.95µm) feature recognition
Power – up to 3W
High Magnification – 1500X geometric mag.
Extra Filaments
Fully Functional
