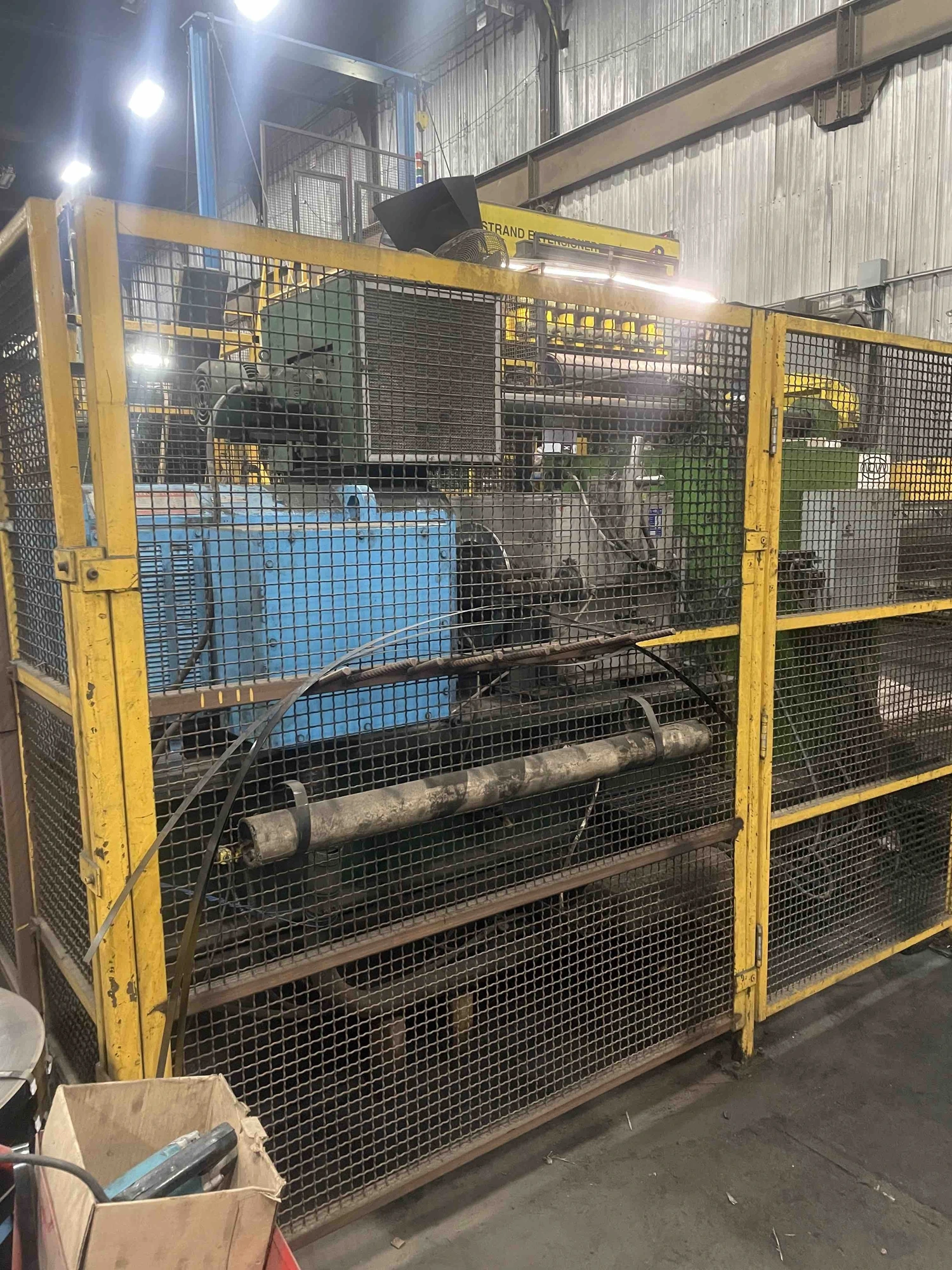

USED CINCINNATI & HERR VOSS 60" x .135" x 50,000Lb Slitting Line
Overview
Specifications
| Max Width | 60" | 1,524 mm |
|---|---|---|
| Max Thickness | 135" | 3,429 mm |
Make: Cincinnati - Herr Voss
Material Width: 12" - 60"
Material Thickness: .010" - .135"
Coil Weight: 50,000Lb
Coil ID: 16" - 24"
Coil OD: 72"
Speed: 1600 feet per minute
Direction: L-R
Entry Pit Type Coil Car
Powered Lift and Traverse
Double Mandrel Uncoiler
Powered Hold Down Roll
Sliding Base
Motorized Brake
Hydraulic Peeling Table
Edge Guiding Stand
Driven Entry Pinch Rolls
Mechanical Crop Shear
Three (3) Slitting Heads
Crane Removable Design
Adjustable Arbors
Motor: 200HP @ 1750 RPM DC
Knives & Tooling
Two (2) Scrap Winders
Drag Board Tension Stand
Herr Voss Leveler
Work Roll Width: 72"
Work Roll Diameter: 1.5"
Number of Work Rolls: 17
Up & Down Back Up Flights
Digital Control Panel
Recoiler
Powered Drum
Hydraulic Push-Off
Powered Over-Arm Separator
Motor: 200HP @ 650 / 2200 RPM DC
Exit Floor Standing Coil Car
Powered Lift & Traverse
Self Contained Hydraulics
4-Arm Turnstile
Powered Rotation
72" x 15,000Lb Packaging Line
Hydraulic Down-Ender
Driven Conveyors
Banding table
Coil Stacking System
7- Station Lazy Susan
Electrics, Hydraulics, Controls, Lots Knives & Tooling
