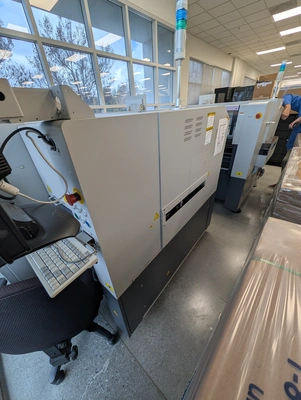

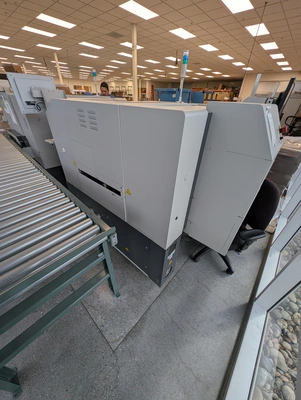

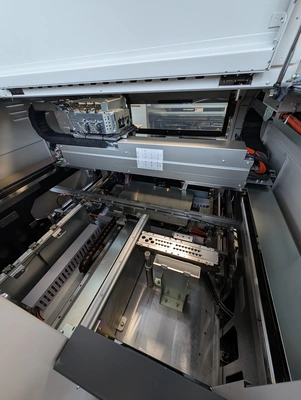

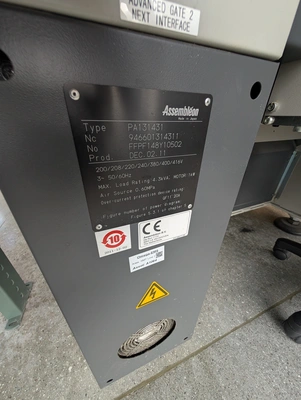

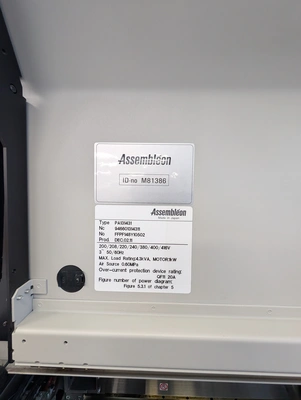

USED 2011 ASSEMBLEON MG5

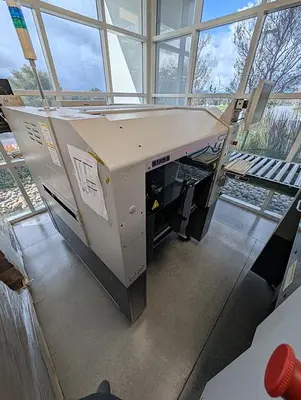

Assembleon MG5 Placement Machine

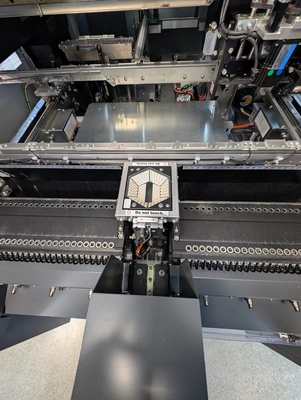

Pneumatic feeder interface (FT interface) for up to 107 Feeders (8mm type)
– 107 feeding positions on MG-5
– 48 feeding positions on MG-5 MTF and MG-5 ATS
Feeders Available
Feeder lock verification

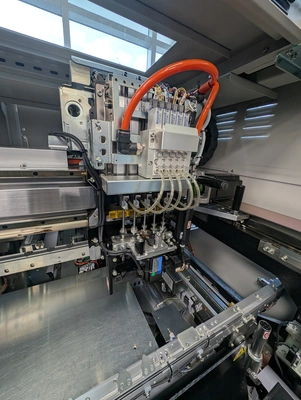

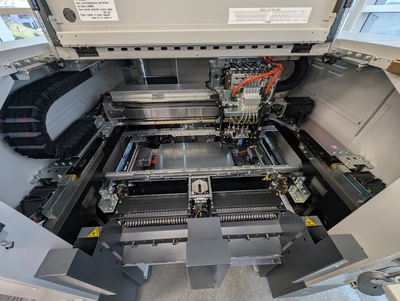

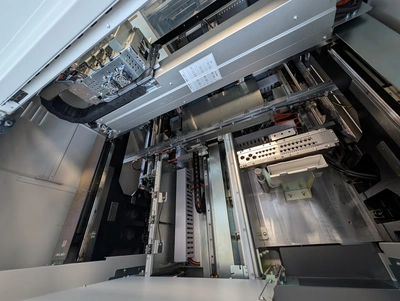

Beam with 5 heads

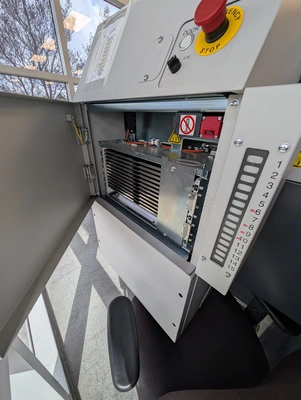

Operating panel front and rear (start, stop, clear)

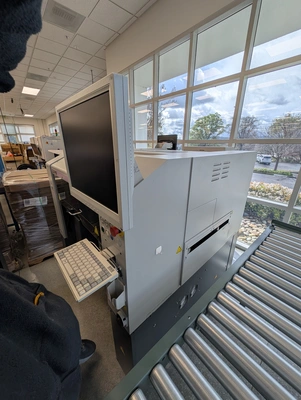

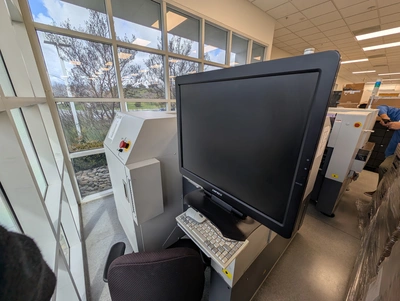

LCD monitor (incl. pad, mouse and keyboard)
Front: MG-5 basic & MG-5 MTF Front and rear: MG-5 ATS
Board Alignment camera
Full nozzle set
– 301A (5x) - 0201~0402, 302A (5x) - 0603~1206, 303A (3x) - 1812~ (RND 4.0),
304A (2x) - QFP ≤ 32mm, 307A (1x) - QFP ≥ 32mm
Automatic nozzle exchange system – 24 positions
Nozzle Cleaning station for automatic cleaning of nozzles
Line array camera
– Line array camera for components up to 100 x 45mm
Side illumination for BGA ball recognition
Board sizes up to:
- 420 x 460mm (16.54 x 18.1”) on MG-5
- 420 x 360mm (16.54 x 14.2”) on MG-5 MTF and MG-5 ATS
- For all MG-5 confi gurations optionally the board length can be expanded to
575mm (22.6”)
Warning lights
– White: Emergency stop, safety, cover interlock
– Blue : Soft Errors (pick up / empty reel)
– Green : In operation
Auto Width Conveyor
