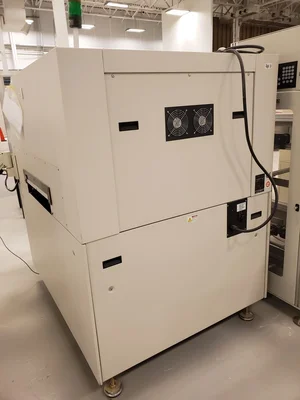

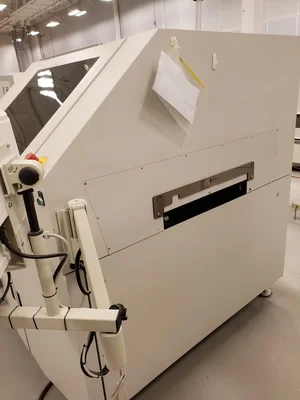

USED 2010 MPM MOMENTUM STANDARD

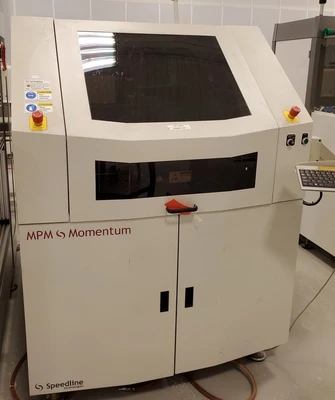

MPM Momentum Screen Printer
EdgeLoc Snugger System
Advanced Post Print Inspection Package
Contrast Based 2D Inspection (paste on pad) & BridgeVision

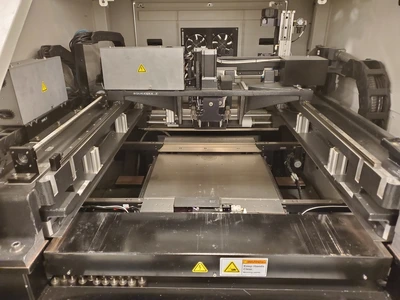

Programmable squeegee print head

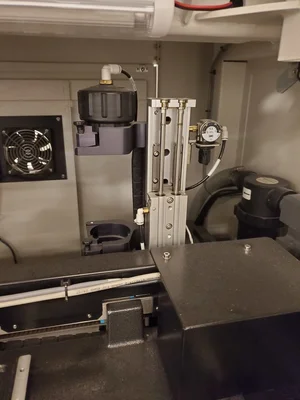

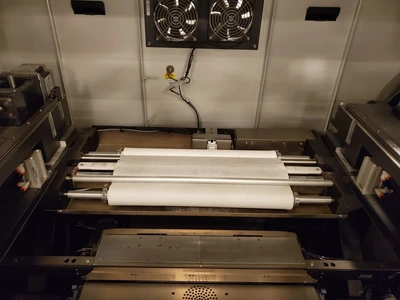

Closed Loop Stencil Wiper with Vacuum and Solvent
Digital probe with telecentric optics, ultrasonic board stop sensor, and LED flash lighting
IR Light - Enhances Inspection Recognition for OSP Boards
Automatic Stencil Positioning
Programmable Board Stop (Hardstop and Non Contact Stop included)
Centernest clamping includes: Fixed top clamps and centernest vacuum hold-down
Front Fixed Single Tracks
Board thickness range of 0.2mm to 5mm
Min Board: 50.8mm X 50.8mm (2" X 2")
Max Board: 609.6mm X 508mm (24" X 20")
Windows XP based Benchmark GUI software
Stencil Size: (29" X 29")
Signal Light Tower
17" flat panel display

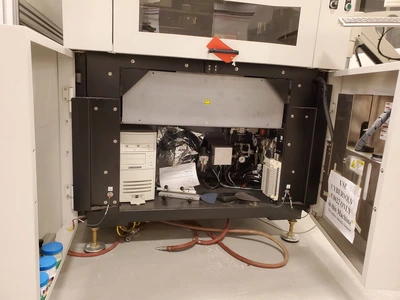

PC controlled with keyboard and trackball interface
SPC data collection
SMEMA handshake, Ethernet communication and CE certification

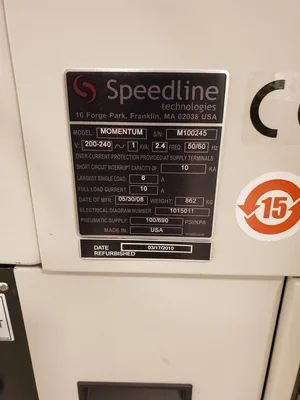

208V / 240V single phase power
(2) Trailing Edge Metal Squeegee Blades, (1) Plenum, (1) Paper Roll Standard Support Pin Tooling Kit (20 pins)
Grid-Lok, 6 module kit
Gerber EZ Teach
Automated Paste Dispenser (supports 6 oz. & 12 oz. cartridges)
EdgeLoc Snugger System
Advanced Post Print Inspection Package
Contrast Based 2D Inspection (paste on pad) & BridgeVision
Fully Functional

Process flow: Left to Right
Hours: ?
Software: Windows OS
Vintage: 2008 (OEM Refurbished 2010)
