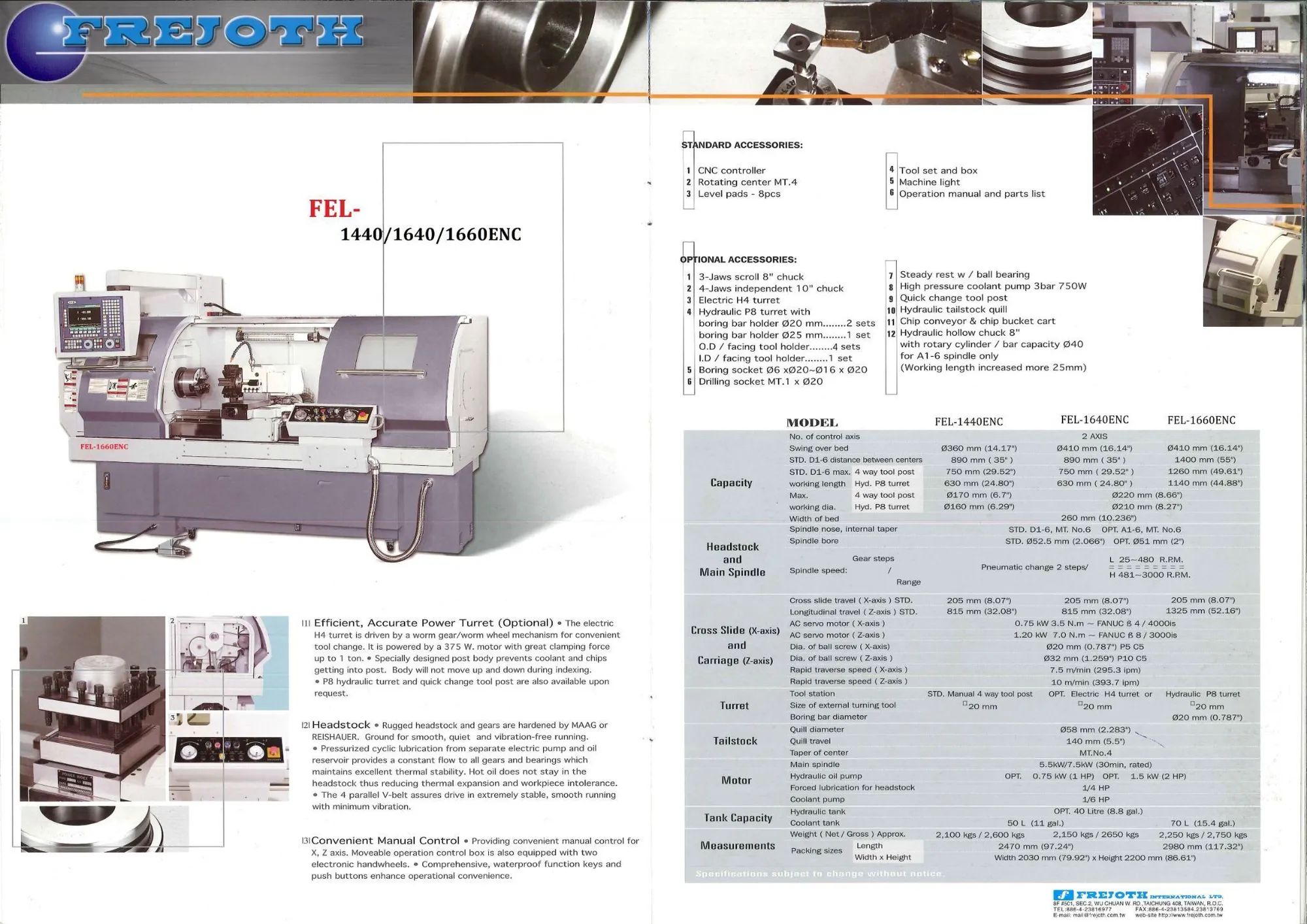

NEW 2026 ACRA FEL 1440ENC
Overview
Description
2026 ACRA Mode FEL 1440ENC Engine Lathe with Fanuc 0i Mate TD Conversational Control
The ACRA FEL-1440 CNC Lathes are versatile Teach type CNC flat bed Lathes with Manual, Conversational, Teach, and CNC operating modes. The bed features a rugged MEEHANITE casting, with thick widely spaced cross supports and induction hardened ground ways for accuracy and rigidity. Coolant system with removable tank is standard. Precision ground Ballscrews are driven by AC digital servo motors. The spindle is driven by an infinitely variable AC inverter and includes constant surface speed and threading functions.
This machine will be useful on day #1 with any level of operator, for production or prototype. It can be operated manually with jog joysticks and MPG hand wheels Teach and Repeat, user interactive Conversational, or full blown CNC G-Code / M-Function with macros. Some models include a Part Shape program generator, with graphics display
Specifications
| Swing | 14.17" | 359.92 mm |
|---|---|---|
| Machining Length | 35.82" | 909.83 mm |
| # Axis | 2 | 2 |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 1.41" | 35.814 mm |
| Power | 7.5 hp | 5.6 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 10" | 254 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (FANUC 0i Mate TC) | CNC (FANUC 0i Mate TC) |
| Dimensions | (L x W x H): 100" x 74" x 88" | (L x W x H): 100" x 74" x 88" |
| Weight | 4,640 lbs | 4,640 lbs |
Key Technical Specifications (Acra FEL-1440ENC):
Swing Over Bed: 14.17"
Distance Between Centers: 35.82"
Max Working Length: 26.77"
Max Working Dia: 8.27"
Width Of Bed: 10.236"
Spindle
Nose Taper: D1-6
Spindle Center Sleeve: MT#4
(#) Range of Spindle Speed: Inf. Variable 40~5000 RPM
Spindle Bore: 1.81" / Bar Capacity: 1.41"
Axis
Travel ( X / Z): 6.67" / 27.95"
X Axis Motor: 0.6 HP
Z Axis Motor: 1.13 HP
Turret
Tool Station: Hydraulic V8 Turret (Option)
Size Of External Turning Tool: 20 mm
Boring Bar Diameter: 0.787"
Tailstock
Quill Taper: MT #4
Quill Diameter: 2.28"
Quill Travel: 5.5"
Motor
Main Spindle Motor: 7.5 HP ( 10 HP Opt.)
Hydraulic Oil Pump: Opt. 1 HP
Coolant Pump: 1/6 HP
Tank Capacity
Hydraulic Tank: Opt. 6.6 Gal.
Coolant Tank: 11 Gal.
Rapid Traverse (X/Z): 100 in/min
Ballscrews: 25x5mm (X-axis), 32x5mm (Z-axis)
Positioning Accuracy/Repeatability: 0.0004" / 0.0002"
Halogen Lamp Standards
Measurements
Net Weight: 4,630 LBS
Shipping Weight: 5,732 LBS
Control: FANUC OI MATE TC
Footprint (L x W x H): 100" x 74" x 88"
Machine Weight: Approx. 4,640 lbs
Equipped With
Key Features:
Controls: Fanuc 0i Mate-TD, or optional conversational systems.
Operation: Full CNC, Teach-and-Repeat, and manual operation via MPG handwheels.
Construction: Induction hardened and ground ways, heavy-duty Meehanite casting.
Standard Equipment: Hydraulic tailstock quill, 6" hydraulic chuck, auto lubrication system, and coolant system. Moving door Splash Guard
4 Way Tool Post
Halogen Light
Options: Hydraulic V8 turret or 4-station electrical turret.
OPTIONS
Steady Rest $700.00
Follow Rest $400.00
Chip Conveyor $5,400.00
Hydraulic Turret or V8 turret $4,300.00
Hydraulic Tailstock Quill $2,800.00
