| Swing | 36" | 914.4 mm |
| Machining Length | 60" | 1,524 mm |
| # Axis | 2 | 2 |
| Chuck Size | 21" | 533.4 mm |
| Bar Capacity | 7.25" | 184.15 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 1,200 RPM | 1,200 RPM |
| Turning Dia | 24" | 609.6 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc 21i-TB CNC Control) | CNC (Fanuc 21i-TB CNC Control) |
| Dimensions | 186.6″ x 83.86″ x 82.28″ High Approx. | 186.6″ x 83.86″ x 82.28″ High Approx. |
| Weight | 24,200 lbs. Approx. | 24,200 lbs. Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Fanuc 21i-TB CNC Control
Long Bed Box Way Machine
10 Station Automatic Turret
35 HP High Torque Spindle
High Precision Geared Head Spindle for powerful Torque
PCMCIA Card Interface
Coolant System
Capacity:
Max Turning Diameter: 24.0″
Max Turning Length: 60.0″
Max Bar Capacity: 7.25″
Max Swing Over Bed: 36.0″
Travel:
X Axis Travel: 13.38″
Z Axis Travel: 60.00″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 944 IPM
Spindle:
Spindle Nose: A2-15
Spindle Bore: 7.87″
Spindle Speed: 12 – 1200 RPM
Spindle Motor: 35 HP

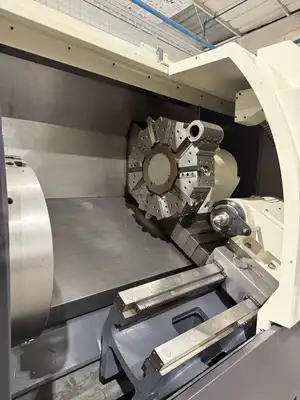

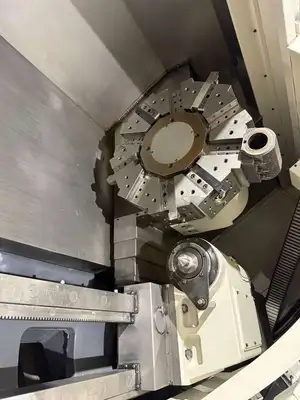

Turret:
Capacity: 10 Stations
Turning Tool Size: 1.26″
Boring Tool Diameter: 2.56″
Tailstock:
Tailstock Taper: MT-5
Tailstock Quill Stroke.: 7.87″
Tailstock Body Travel: 55.11″
General:
Power: 220v / 54 kva / 3-Phase
Overall Dimensions: 186.6″ x 83.86″ x 82.28″ High Approx.
Weight: 24,200 lbs. Approx.

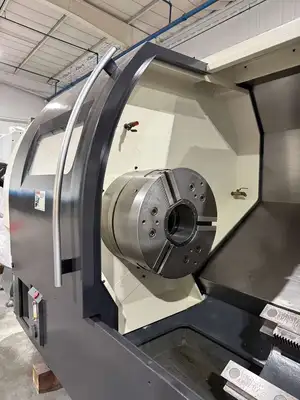

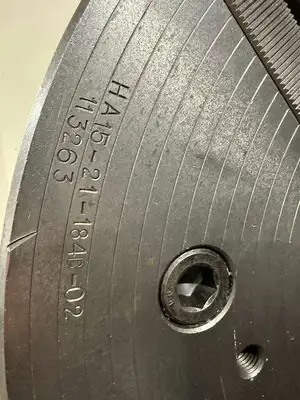

21″ 3-Jaw Hydraulic Chuck
7.87″ Big Bore, A2-15 Spindle
Hydraulic Tailstock and Power Quill
Spindle Chiller Unit

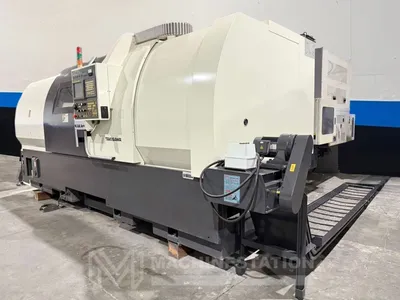

Chip conveyor
Foot Switch
