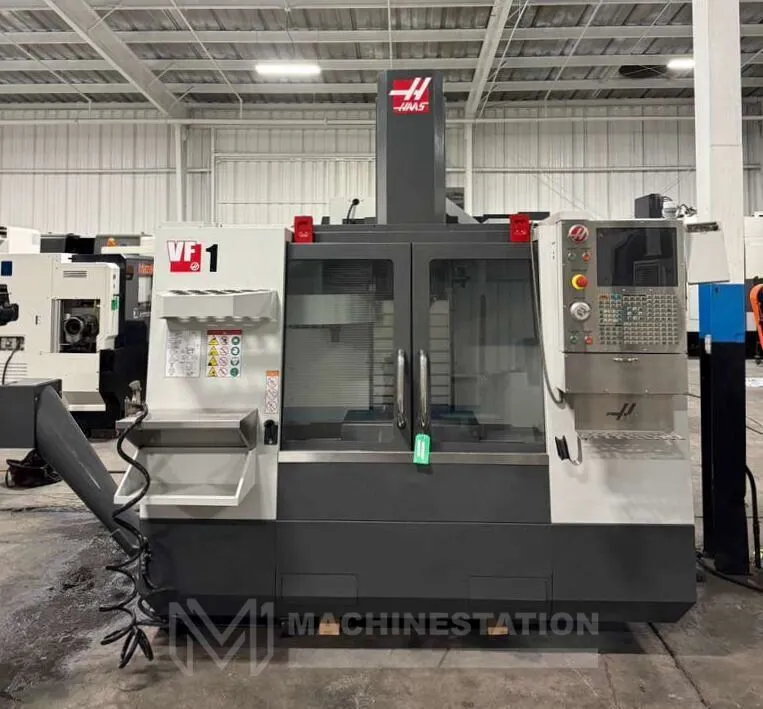

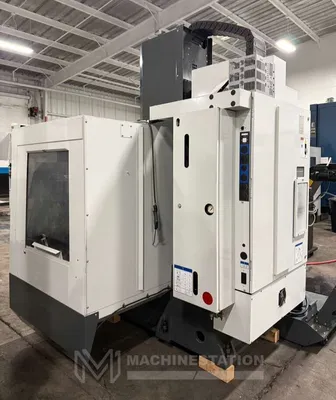

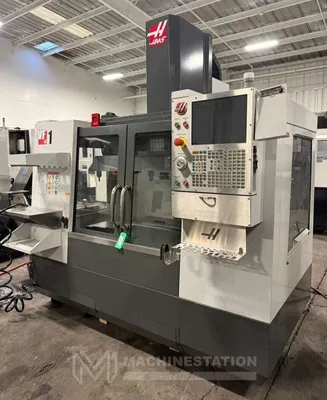

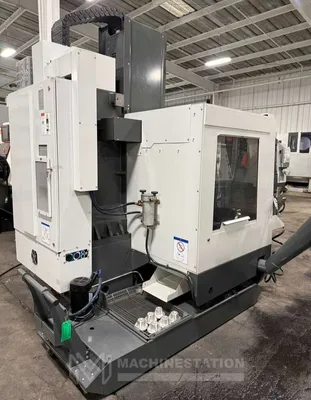

USED 2016 HAAS VF-1

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Replacement Cost Over $66,000 with Similar Options

Features:

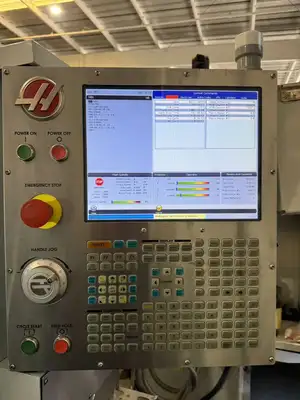

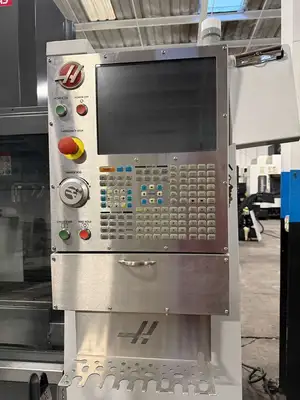

Haas CNC Control
Linear Ways Construction
Media Display
Compensation Tables
1GB Memory
Rigid Tapping

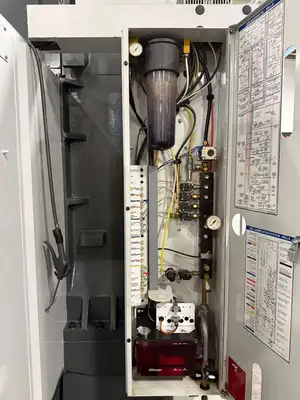

Automatic Lubrication System
Coolant System

Travels:
X-Axis: 20″
Y-Axis: 16″
Z-Axis: 20″
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

Table:
Length: 26.0″
Width: 14.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 3000 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 8,100 RPM
Spindle Power: 15 HP

Automatic Tool Changer:
Capacity: 20 Tools
Max Tool Weight: 5.5 lbs
Max Tool Dia: 2.0″
Max Tool Length: 7″
Tool Changing Time: 2 Seconds

General:
Air Required: 100 psi 4 scfm

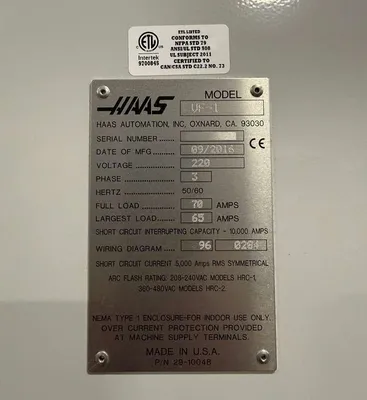

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 101″ x 99″ x 101″ High
Weight: 7800 lbs

8,100 RPM Spindle
CAT-40 Spindle Taper
20 Station Automatic Tool Changer

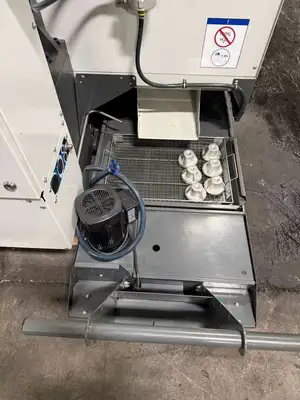

Chip Auger (Upgraded $4,095 value Included)
Levelling Pads
