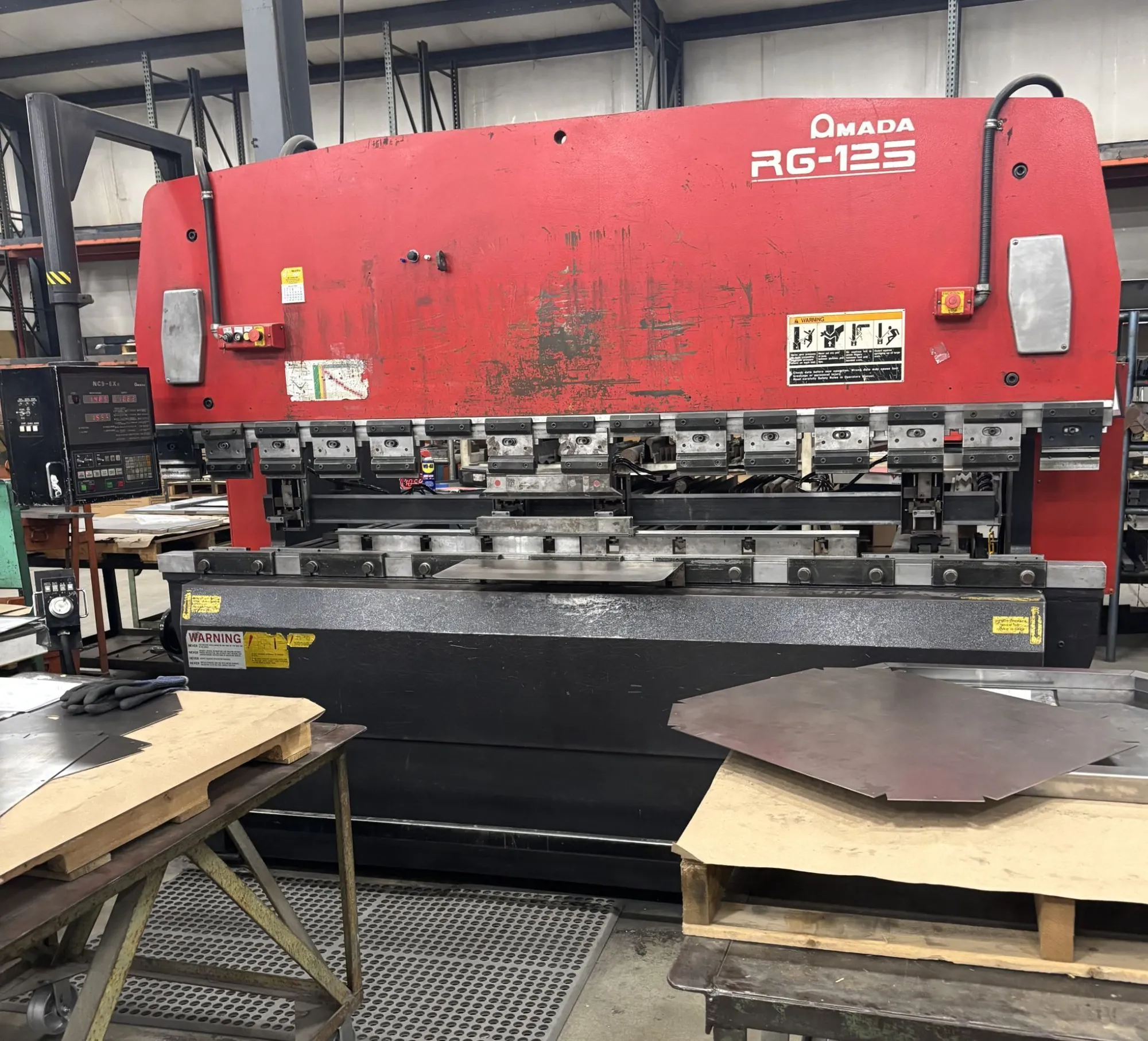

USED 1999 AMADA RG-125

AMADA RG-125 CNC PRESS BRAKE, NEW 1999

PRESS BRAKE:
- CAPACITY: 137 TONS
- MAX. BENDING LENGTH: 122"
- STROKE: 3.9"
- NO. OF CYLINDERS: 3
- MAX. PRESSURE: 4,203.3 PSI
- SPEED:
-- APPROACH: 1.9 IPS
-- FORMING: 0.35 IPS
-- RETURN: 1.57 IPS
- MOTOR: 15 HP
- APPROX. MACHINE WEIGHT: 15,653
- APPROX. DIMENSIONS: 120.28" (L) x 70.47"(W) x 90.5"(H)
CONTROL AND BACK-GAUGE:
- CONTROL: NC9-EX II
- NUMBER OF CONTROLLED AXES: 3
- INPUT METHOD: TEN-KEY NUMERIC PAD
- DATA DISPLAY: LED
- MEMORY CAPACITY: 99 STEPS
- MEMORY BACKUP: BACKUP BATTERY SYSTEM
- FINGER HEIGHT ADJUSTMENT: 3.54" TO 6.5"
- FEED SPEED:
-- L-AXIS: 98.4 FPM
-- D-AXIS: 3.28 FPM
- REPETITION ACCURACY:
-- L-AXIS: (+/-) 0.0004"
-- D-AXIS: (+/-) 0.0004"
MOVEMENT RANGE:
-- L-AXIS: 19.7"
-- D-AXIS: 3.9"
COMMAND UNIT:
-- L-AXIS: 0.0001"
-- D-AXIS: 0.0001"

NC9-EX II CNC CONTROL
HAND WHEEL
FULL LENGTH FOOT TREADLE
TOOL HOLDERS
