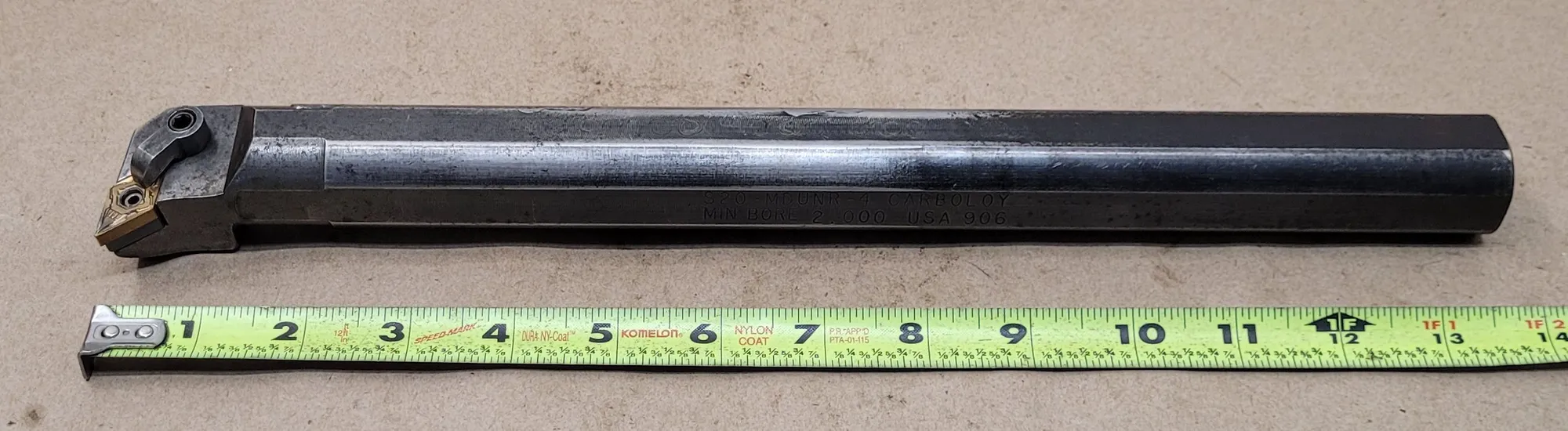

USED CARBOLOY S20-MDUNR-4

Carboloy S20-MDUNR-4 Indexable Boring Bar

Minimum Bore Diameter (Decimal Inch): 2.0000
Tool Material Steel
Hand of Holder Right Hand
Shank Diameter (Inch) : 1-1/4
Overall Length: 14”
Compatible Insert Size Code 432
Insert Holding Method: Pin & Clamp
Compatible Insert Shape Diamond
Rake Negative
Rake Angle -7.00
Lead Angle 3
Insert Inscribed Circle (Inch) 1/2
Insert Inscribed Circle (mm) 12.70
Multi-use Tool No
Cutting Tool Application Boring
Center to Cutting Edge (Decimal Inch) 1.0000
Coolant Through: NO
