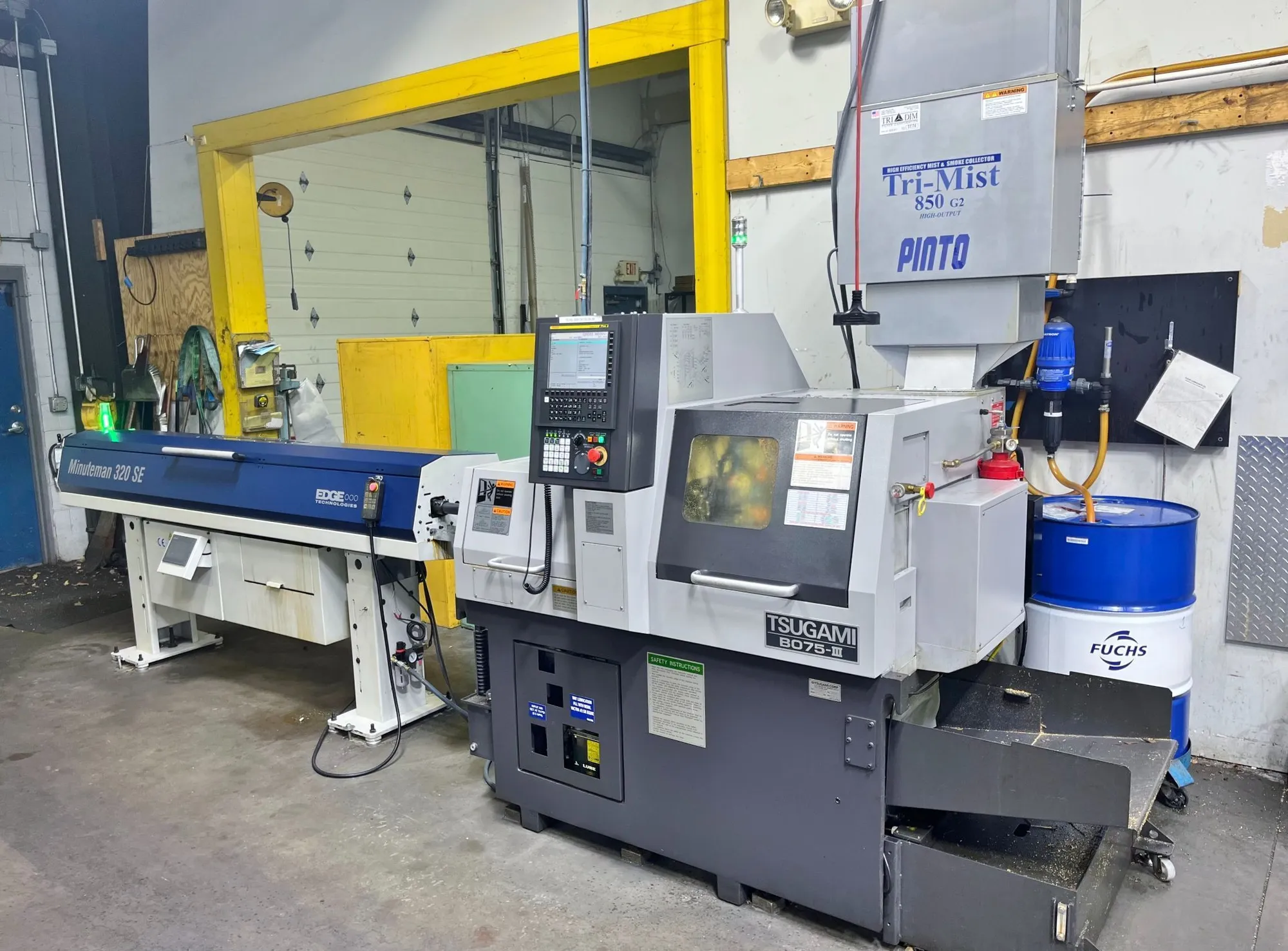

USED 2021 TSUGAMI B075-III
Overview
Description
Fanuc 0i-TF Plus Control, Edge Bar Feeder (6'), 7mm Bar Capacity, Chucker Kit, 15,000 RPM (Main), 12,000 RPM (Sub), MP Systems High-Pressure Coolant (2,000 PSI), Mist Collector, FireTrace. This 2021 Tsugami B075-III cnc swiss lathe is in plant, under power and available immediately.
Specifications
| BAR CAPACITY | 7 mm | 0.2756" |
|---|---|---|
| MAX HEADSTOCK STROKE | 2.76" | 70.104 mm |
| MAIN SPINDLE MOTOR | 2 hp | 1.5 kW |
| MAIN SPINDLE INDEXING | FULL C-AXIS | FULL C-AXIS |
| MAIN SPINDLE SPEED | 15,000 RPM | 15,000 RPM |
| BACK SPINDLE MOTOR | 3 hp | 2.2 kW |
| BACK SPINDLE INDEXING | FULL C-AXIS | FULL C-AXIS |
| BACK SPINDLE SPEED | 12,000 RPM | 12,000 RPM |
| TOTAL TOOL CAPACITY (POSITIONS) | 21 | 21 |
| TOTAL LIVE TOOL CAPACITY (POSITIONS) | 4 | 4 |
| LIVE TOOL SPEEDS | 8,000 RPM | 8,000 RPM |
| CONTROLLABLE AXES | 5 | 5 |
Equipped With
FANUC 0i-TF PLUS CONTROL
SIMULTANEOUS AXES CONTROL
EDGE MINUTEMAN 320SE MAGAZINE BAR FEEDER (6’)
CHUCKER KIT (CONVERTIBLE FROM GUIDE BUSHING TO NON-GUIDE BUSHING)
DIRECT DRIVE ROTARY GUILD BUSHING
TF10 COLLET CHUCKS ON MAIN & SUB
FULL C-AXIS MAIN & SUB
MP SYSTEMS HIGH-PRESSURE COOLANT UNIT (2,000 PSI)
TRI-MIST MIST COLLECTOR
FIRETRACE FIRE SUPPRESSION
WORK CONVEYOR & PARTS CATCHER BASKET
** AS OF JANUARY 2026, CUTTING TIME – 7,578 HOURS
** MADE IN JAPAN
** MACHINE RAN OIL
** BUILT IN 2021 & INSTALLED NEW IN 2022
** MACHINE CUT PRIMARILY BRONZE & BRASS
** FULL REPLACEMENT COST, AS EQUIPPED - $180,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
