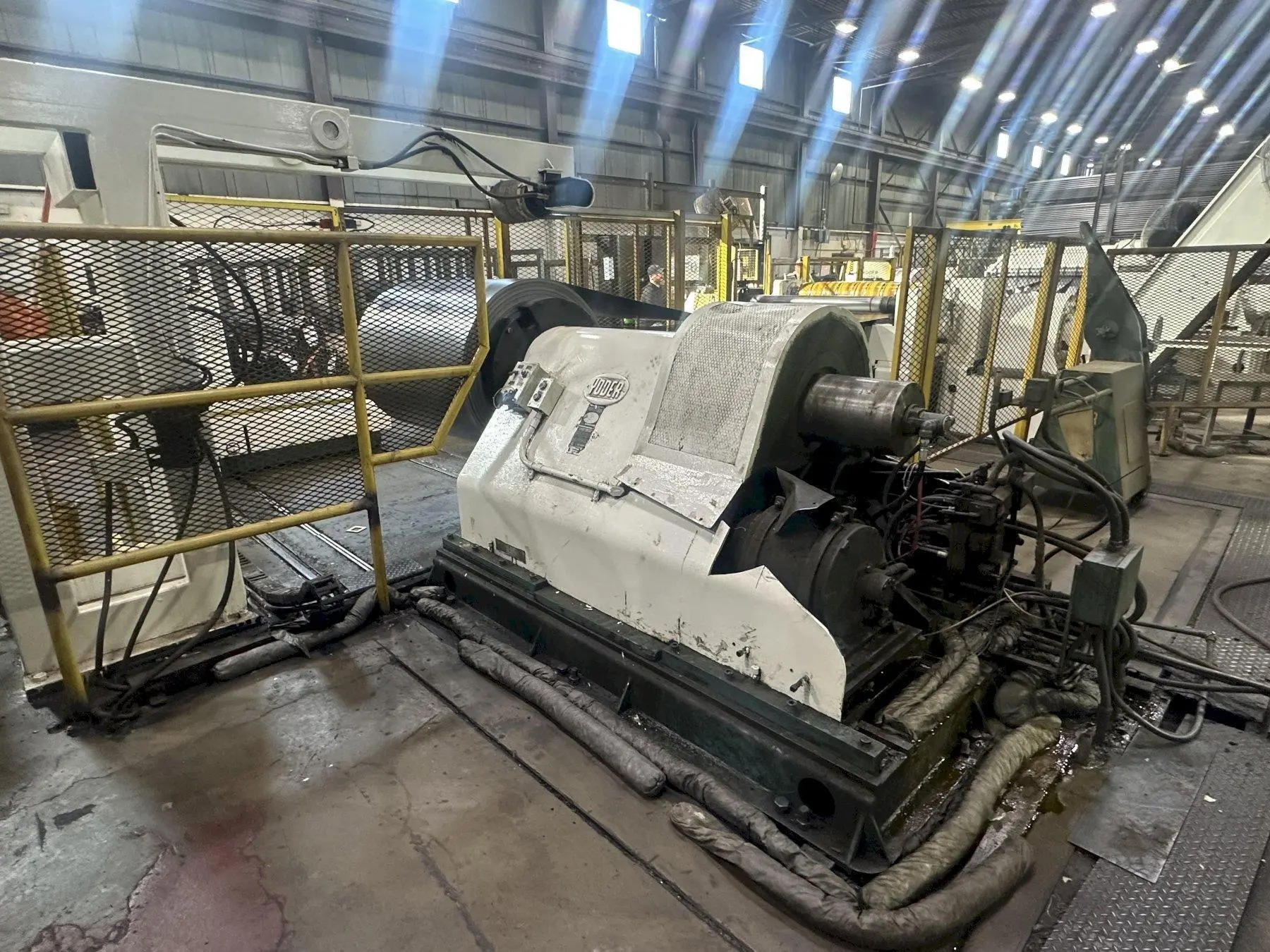

USED YODER 54" x .110" x 20,000Lbs Yoder Slitting Line

SERIAL ....................... Y5579-569
MODEL ........................ 7-S
LINE DIRECITION .............. RIGHT TO LEFT

YODER UNCOILER WITH COIL CAR:
COIL CAPACITY ................ 20,000 LBS
MANDREL LENGTH ............... 60"
COIL WIDTH ................... 54"
COIL I.D. .................... 16" - 24"
COIL O.D. .................... 60" MAX
EXPANSION .................... HYDRAULIC
POWERED ...................... YES
OVERALL HOLD DOWN ............ YES, POWERED

FEED UP TABLE ................ POWERED

YODER SLITTING HEAD:
SERIAL .......................
MAX WIDTH .................... 54"
ARBOR DIAMETER ............... 7"
SLITTING CAPACITY ............
............
ENTRY EDGE GUIDES ............ YES
EXIT PASS LINE GUIDES ........ YES
MOTOR ....................... 10 HP

YODER ROTARY SCRAP CHOPPER ... YES
INCLINED SCRAP CONVEYOR ...... YES

YODER RECOILER:
SERIAL ....................... Y5579-569
CAPACITY ..................... 20,000 LBS
MANDREL LENGTH ............... 54"
DRUM ID DIAMETER ............. 20" & 16"
TOP PUSHOFF CYLINDER ARM ..... YES
TOP HOLD DOWN GUIDE ARM ...... YES
MOTOR ....................... 40 HP

CONTROLS ..................... YES

*** LARGE AMOUNT OF TOOLING INCLUDED ***
