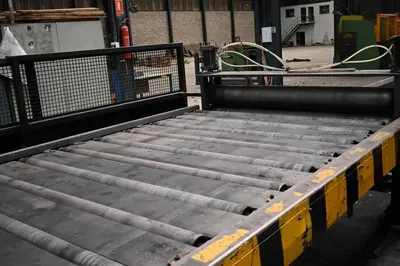

59” x .394” x 55,000 Lb Fagor Arrasate Cut-To-Length Line

Specifications:
Manufacturer: Fagor Arrasate

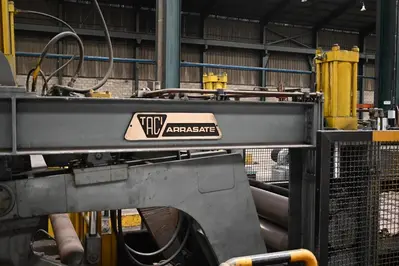

Manufacturer (Controls / Components): Taci Arrasate
Material Specifications:
Maximum Coil Width: 59” (1500 Mm)
Minimum Coil Width: 11.8” (300 Mm)
Maximum Coil Weight: 55,000 Lb (25 Metric Tons)
Thickness Range: .059” – .394” (1.5 – 10.0 Mm)
Finished Product Specifications:
Maximum Length: 472” (12,000 Mm)
Minimum Length: 19.7” (500 Mm)
Working Speed: 33 And 66 FPM (10 And 20 M/Min)
Maximum Line Speed: 82 FPM (25 M/Min)
Cutting Format Length: 39.4” – 394” (1000 – 10,000 Mm)
Cutting Tolerance: ±.039” (±1 Mm)
Line Direction: Left To Right

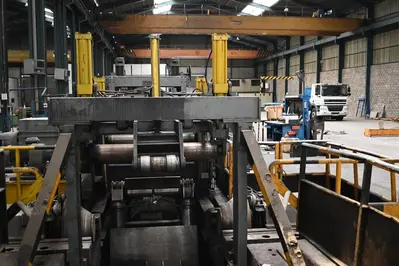

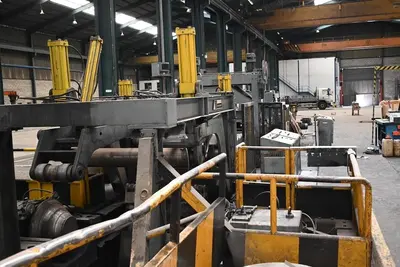

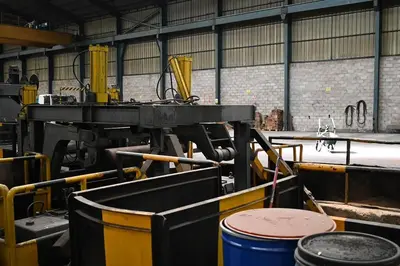

Uncoiler:
Type: Expanding Double Mandrel Uncoiler
Maximum Coil Weight: 55,000 Lb (25 Metric Tons)
Outer Coil Diameter: Max 78.7” / Min 23.6” (2000 Mm / 600 Mm)
Inner Coil Diameter: Max 29.9” / Min 20” (760 Mm / 508 Mm)
Motorized Clamping Roller
Hydraulic Expansion

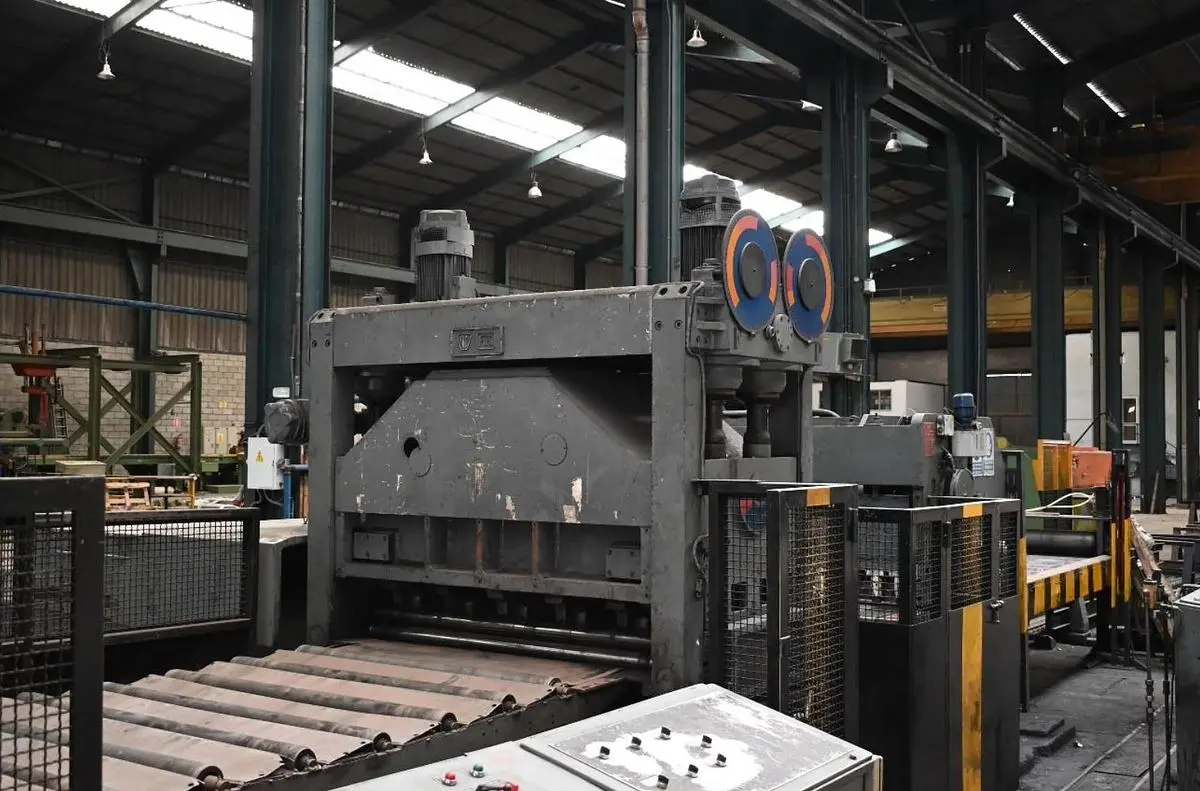

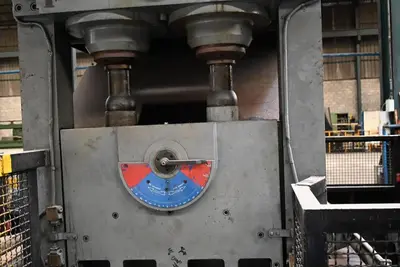

Leveller:
Leveller Roll Diameter: 2.95” (75 Mm)
Road Roller With 15 Working Rollers
Working Roller Diameter: 2.95” X 68.9” (75 Mm X 1750 Mm), 64 HRC
Support Roller Diameter: 2.56” X 4.72” (65 Mm X 120 Mm), 62 HRC
Brake-Clutch Unit
Flattening Machine Powered By Two-Speed Motor
Draw / Feed Unit:
Draw Roller With Flattening Unit

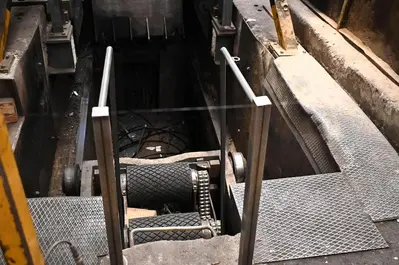

Measuring Table With Motorized Roller
Pneumatic Cutting Shear
Cutting System:
Static Cutting Shear
Stop-Start Operation
Always Cuts Straight, Flat Formats
Electric Motor And Clutch Driven
Blade Size: 80.3” X 3.94” X .98” (2040 X 100 X 25 Mm)
Motors And Power:
Main Engine Power: 53 – 75 HP
Adjustment Motor Power (2 Units): 7.5 HP Each
Lubrication Motor Power: 1 HP
Shear Motor: ABB 25 HP, 3000 RPM, 380/660 V
All Motors Are DC

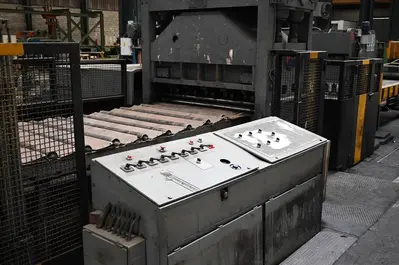

Controls:
Fagor Numerical Control Model 80
TT-12D Model Speed Variator
Additional Equipment:
Packaging Crates
Accessories With Hydraulic And Electrical Controls
Weights:
Total Roller Weight: 44,000 Lb (20,000 Kg)
Documentation:
Civil, Mechanical, And Electrical Engineering Plans
Foundation, Assembly, Hydraulic, And Pneumatic Plans
Recommended Spare Parts List Included
Operating Notes:
This Line Operates On A Stop-Start Cycle
Cutting Is Static And Performed In Flat Formats Only
Condition: All Maintenance Has Been Completed, The line has a maintenance book, mechanical and electrical.
Status: Under Power
