61” x .118” x 55,000 lb Bonak Cut-To-Length Line

Specifications:
Manufacturer: Bonak
Max Coil Width: 61” (1550 mm)
Min Coil Width: 11.8” (300 mm)
Thickness Range: .016” – .118” (0.40 – 3.00 mm)
Max Coil Weight: 55,000 lb (25 metric tons)
Line Direction: Right / Left
Max Sheet Length: 472” (12,000 mm)
Min Sheet Length: 19.7” (500 mm)
Max Line Speed: 262 fpm (80 mpm)

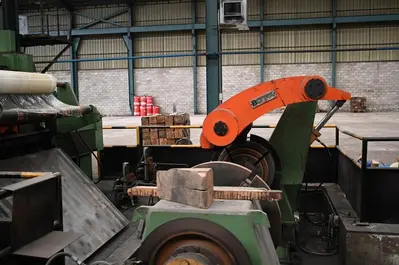

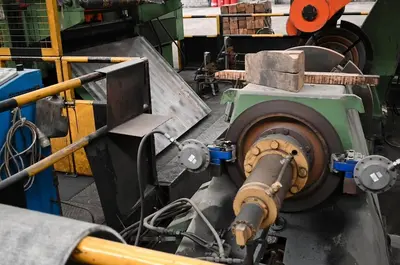

Uncoiler: Expanding double mandrel uncoiler
Coil OD: 23.6” – 78.7” (600 – 2000 mm)
Coil ID: 20” – 30” (508 – 760 mm)
Motorized clamping roll
Guide table

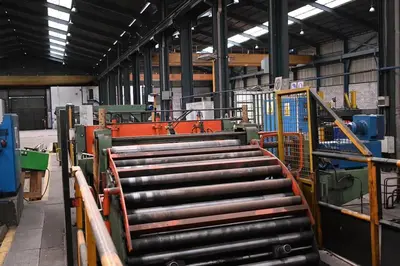

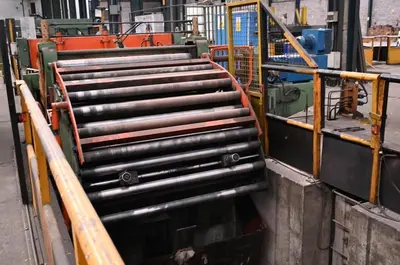

Flattener: 17-roll flattener with hydraulic adjustment
Folding tables for pit access

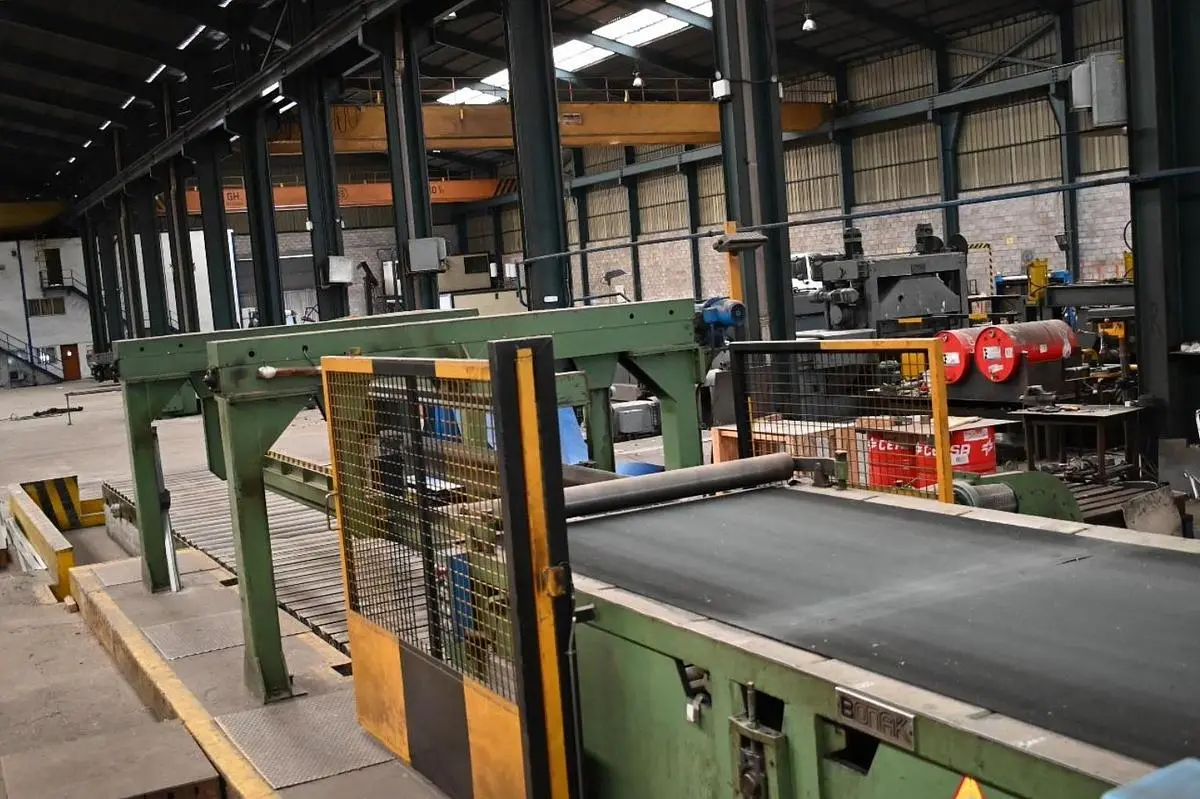

Belt conveyor table
Packaging hoppers
Accessories with hydraulic and electrical controls
Includes civil, mechanical, and electrical engineering plans
*Under power, all maintenance completed
