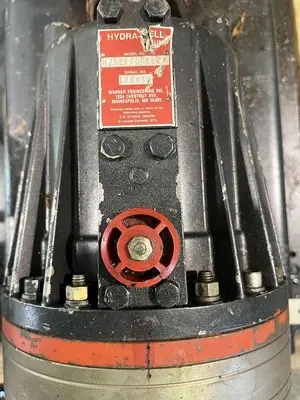

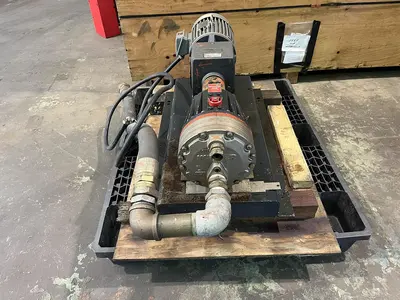

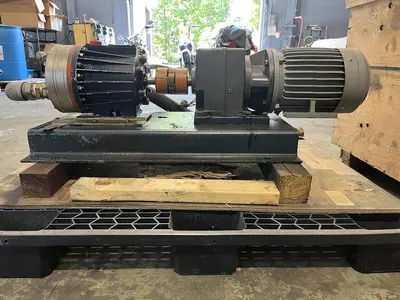

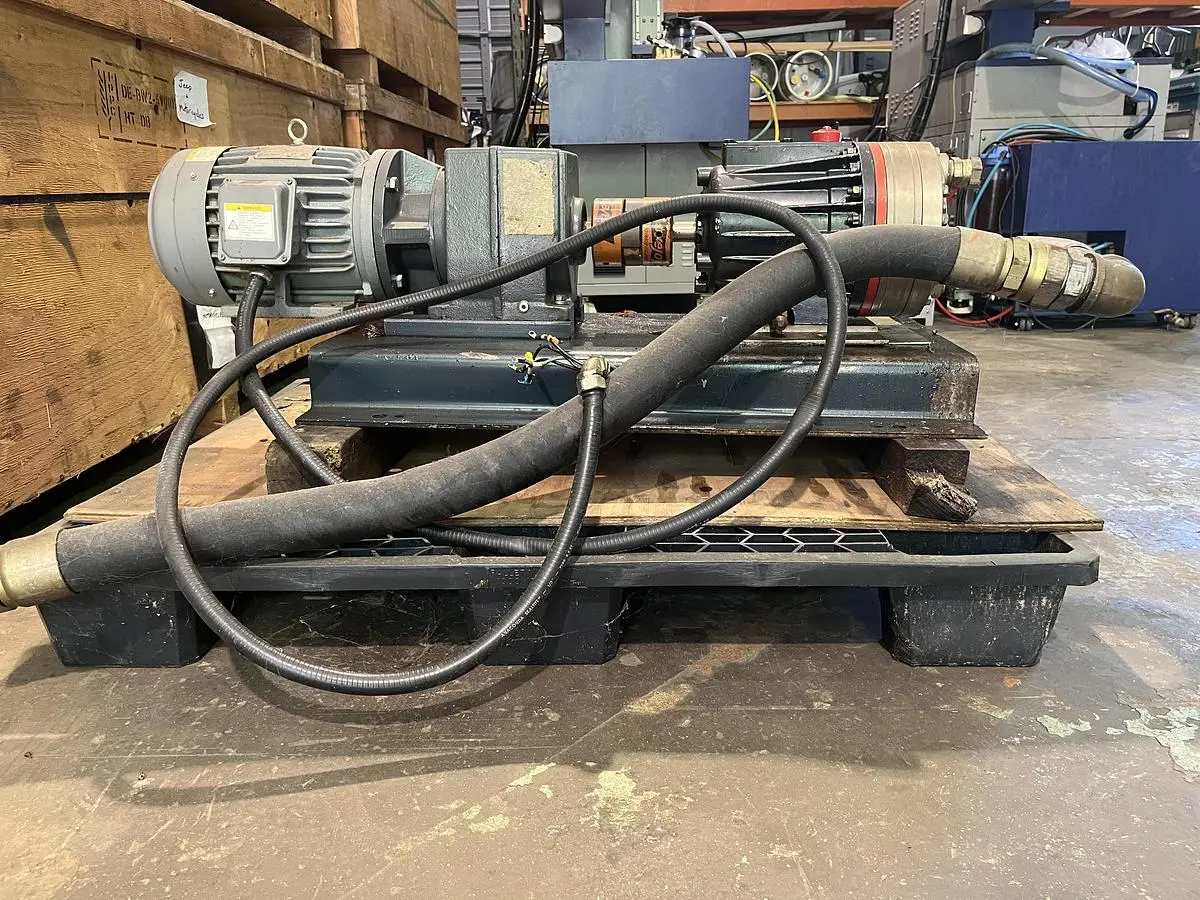

Pump Configuration: H25 (Shaft-driven with NPT Ports or ANSI Flanges)
Hydraulic End Cam: E (20.0 gpm maximum flow rate at 1150 rpm)
Hydra-Oil: A (10W30 standard-duty oil)

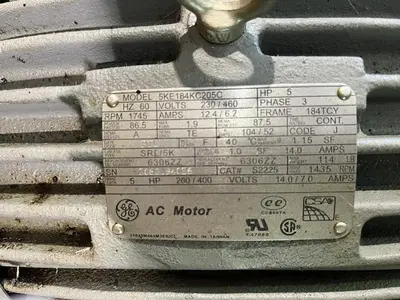

5HP GE AC Motor #5KE184KC205C

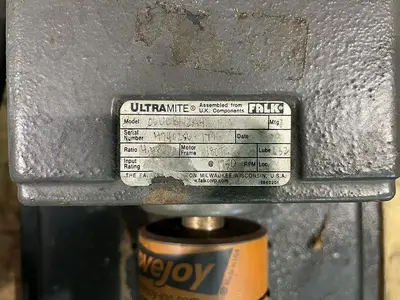

UltraMite Gear Drive
High Pressure, High Flow Applications
Max Flow Rate: 20.0 gpm (75.9 I/min)
Max Pressure Metallic Pump Heads: 1,000 psi (69 bar)
Max Pressure Non-Metallic Pump Heads: 350 psi (24 bar)
Max Solids Size: 800 microns
Inlet Port: 1-1/2" NPT or 150 lb ANSI RF flange
Discharge Port: 1" NPT or 150 lb ANSI RF flange
Shaft Diameter: 1-1/3" (28.6mm)
Shaft Rotation: Reverse (bi-directional)
Bearings: Tapered Roller Bearings
Oill Capacity: 3.3 US Quarts (3.1 liters)
Weight Metallic Heads: 125 lbs (56.8 kg)
Weight Non-Metallic Heads: 90 lbs (40.9kg)
