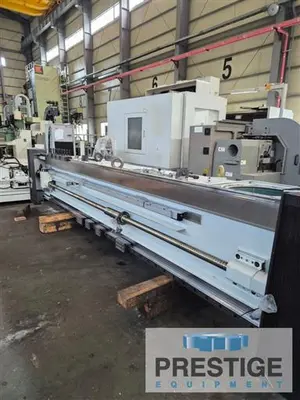

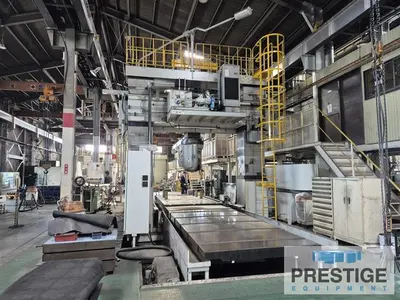

USED 2017 SNK RB-200F 5-AXIS

SPECIFICATIONS:
Table Size: 157.74" x 78.74"
Distance Between Columns: 112.2"
X-Axis Travel: 167.32"
Y-Axis Travel: 114.17"
Z-Axis Travel, Ram: 23.6"
W-Axis Travel, Cross Rail: 33.46"
B-Axis Spindle Tilt: +/-115 Degrees
C-Axis Spindle Head Rotation: 360 Degrees Contouring
Distance, Table Top To Spindle End: 0" - 57.08"
Table Load Capacity: 33,000 Lbs
Cross Section Of Ram: 17.7" x 17.7"
Spindle Speeds: 6,000 RPM
Spindle Drive Motor: 25 HP

Equipped With:

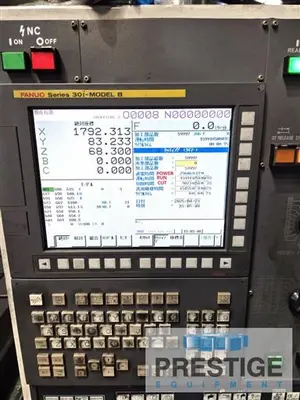

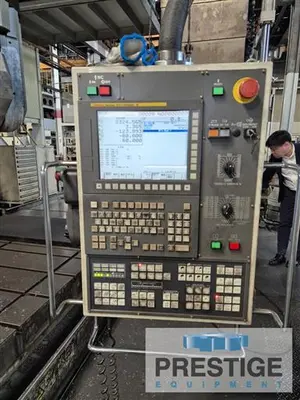

Fanuc 30i-A CNC Control

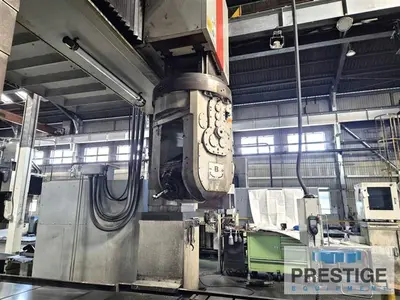

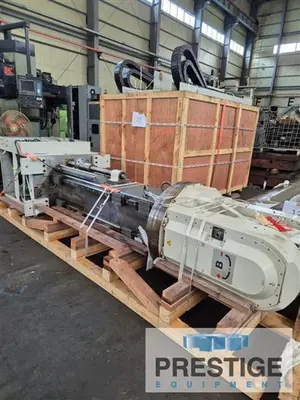

2-Axis B/C-Axis Swivel Head
40-Station Automatic Tool Changer
Tool Length Measurement System
Tool Breakage Detection
Scales on X/Y/Z/B/C Axes
Chip Conveyor
Splash Enclosures

Features:
Fanuc 30i-A CNC Control
2-Axis B/C-Axis Swivel Head
6000 RPM Spindle
40-Station Automatic Tool Changer
