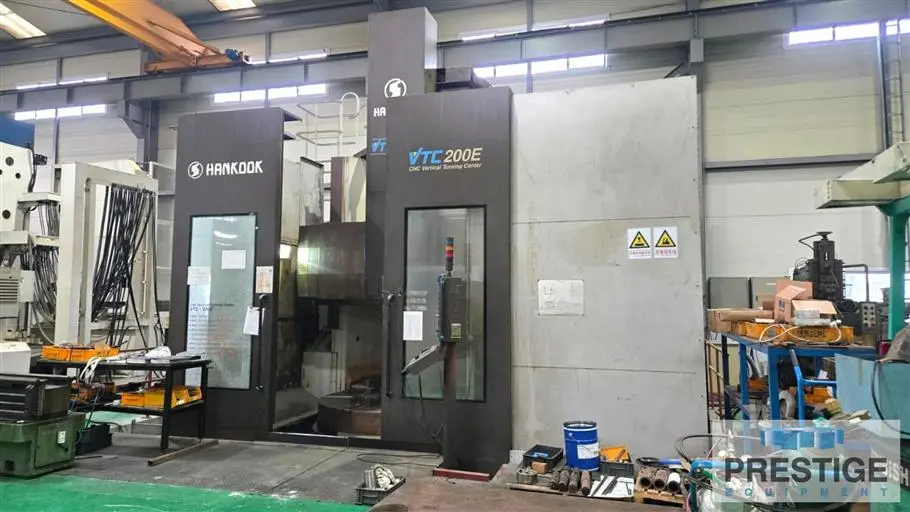

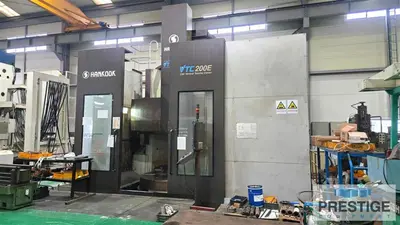

USED 2010 HANKOOK VTC 200E

SPECIFICATIONS:

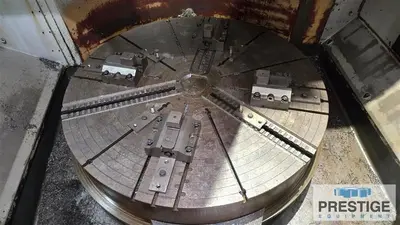

Table Diameter: 78.74"
Maximum Cutting Diameter: 98.42"
Maximum Swing: 106.29"
Maximum Turning Height: 78.74"
Z-Axis, Vertical Ram Travel: 33.5"
Vertical Travel of Cross Rail: 31.5"
Live Spindle Milling Speeds: 0 to 3000 RPM
Live Spindle Milling Motor: 25 HP /30 HP
Ram Cross Section...................... 9.44" x 9.44": 9.44" x 9.44"
Table Speeds: ................... 1 to 200 RPM
Table Speed Ranges: 2 Steps
Table Indexing: 360,000 degrees
Table Weight Capacity: 26,400 Lbs
Table Motor: 60 HP / 73 HP

Equipped With:

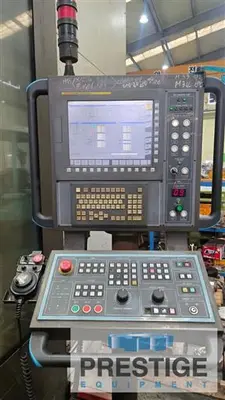

Fanuc System 32i-A CNC Control
Linear Scales
24-Station Automatic Tool Changer (12 Turning & 12 Milling)
C-Axis for Milling & Drilling Operations
Chip Conveyor
73 HP Main Table Drive Motor

Features:
Fanuc 32i-A CNC Control
24-Station Automatic Tool Changer
Live Spindle for Milling & Drilling
Linear Scales
Chip Conveyor
