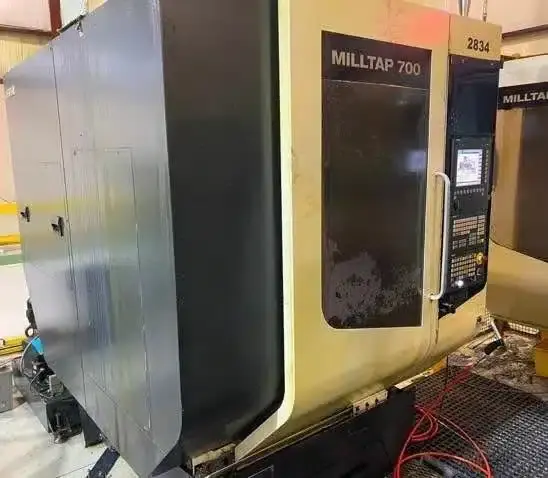

DMG MORI MILLTAP 700 (2014)
X 27.6″
Y 16.5″
Z 15″
POWER 15 hp
RPM 24,000 RPM
# ATC 25
TAPER 30
CONTROL CNC
DIMENSIONS 65″ x 112″ x 113H For Shipping ( 96″ Tall )
X-Axis Travel 27.6″
Max Table Load 882 Lbs
Spindle Motor 15 Hp
Spindle Speed 24,000 Rpm
Spindle Taper Bt-30
Table Size 33.1″ X 16.5″
Rapid Traverse Rate (X/Y/Z) 2,362 Ipm
Z-Axis Travel 15″
Y-Axis Travel 16.5″
Tool Changer 25 Tool Atc
Current Electrical Arrangement 230/400/3/60 16kVA 23 A Jn Max, 35 A
Siemens 840S CNC, 10.4″ Tft Screen
Digital Parts Counter & Timer
Programguide Via Sinumerik Cycles & G-Code
Manual Pulse Generator – Remote Jog Handwheel
Coolant Filtration
Manuals
