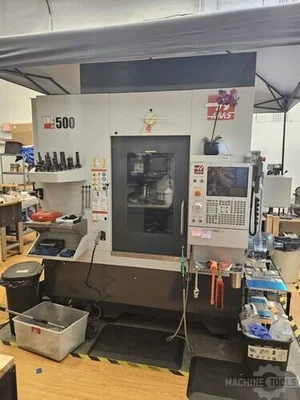

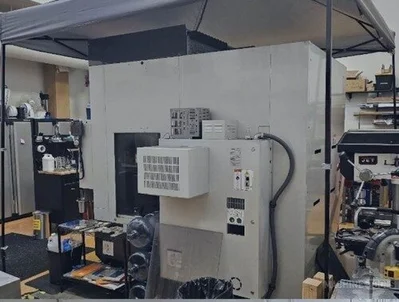

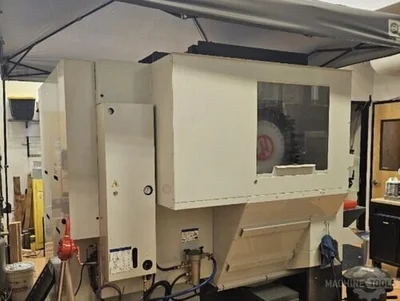

Haas UMC 500 5 Axis CNC Vertical Machining Center, VMC
| X | 24" | 609.6 mm |
| Y | 16" | 406.4 mm |
| Z | 16" | 406.4 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| # ATC | 31 | 31 |
| Taper | CT or BT 40 | CT or BT 40 |
General Info
Stock #: 151260003
Location: South West
Brand: Haas
Model: UMC 500
Year: 2023
Skidding Fee: Skidding Not Available
Loading Fee: Rigging Required
Specifications
X Axis Travel: 24"
Y Axis Travel: 16"
Z Axis Travel: 16"
Rapid Rate X Axis: 900 IPM
Rapid Rate Y Axis: 900 IPM
Rapid Rate Z Axis: 900 IPM
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40
B Axis Tilt: 120 to - 35 Degrees
B Axis Rotation: 50 Degrees Per Second
B Axis Torque: 1854 ft. lbs.
Max Part Swing: 18"
Brake Torque: 900 ft. lbs.
Max Tool Length: 12"
Equipped With
Haas CNC Control, 30 + 1 Auto Tool Changer, Standard Program Memory 1 GB, vector Drive, Inline Direct Drive, Control Cabinet Cooler, Dynamic Work Offsets and Tool Center Point Control, Ethernet Interface, Haas Connect, Haas Drop, Second Home Position, Remote Jog Handle, Rigid Tapping, Safe Run, Side Mount Tool Changer, Touch Screen Interface, WiFi Connection, Renishaw Wireless Probing, Haas Visual Programming
Additional Info
Very Nice Low Hours Machine!
