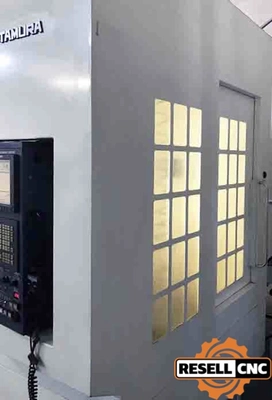

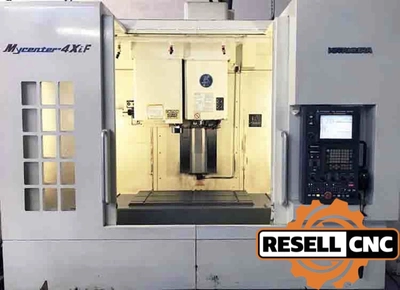

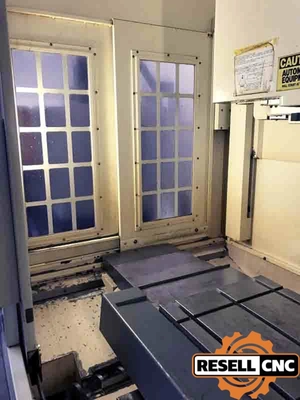

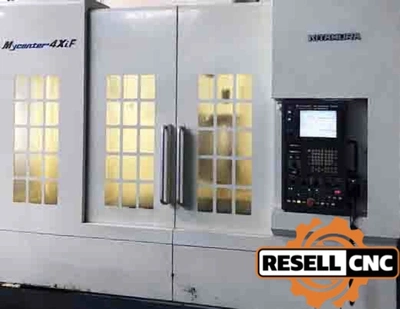

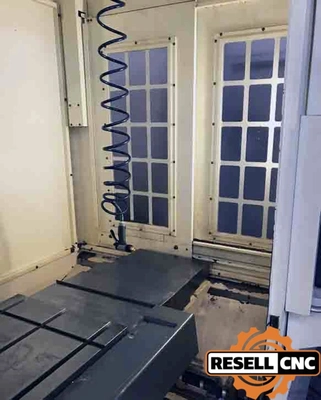

USED 2004 Kitamura MyCenter 4XiF

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: AI Nano High Precision Contour Control

Intelligent Advanced Control

1000 Blocks / Second Feedrate

500 Block Look Ahead

200 Block Multi Buffer

(4) Additional M-Functions

Additional Machine Specs: Spindle Chiller Unit

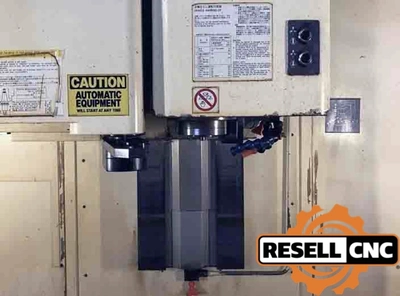

20,000 RPM 4-Step Gear Driven Dual Contact Spindle

Cycle Completion Lamp

Ballscrew Cooling System

Dual Chip Augers

Full Enclosure

Heavy Duty Box Way Construction

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Chip To Chip Time: 4.7
Control Make Model: Fanuc 16i-MB CNC Control
Control Options: Color Monitor, Rigid Tapping
Coolant Type S: Flood Coolant, Thru-Spindle Coolant
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 1320.0
Max Tool Diameter: 6.1
Max Tool Length: 13.8
Max Tool Weight: 22.0
Number Of Pallets: 2.0
Probe Make Model: Renishaw
Programmable Tailstock: false
Rapid Traverse: 1969/1417
Rotary Table Trunnion: None
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 25
Spindle Nose To Table Top: 6.9"-27
Spindle Speed: 20000.0
Spindle Taper Type: CAT#40
Sub Spindle: false
Tailstock: false
Tool Changer Type: Side Mount
Tool Change Time: 1.2

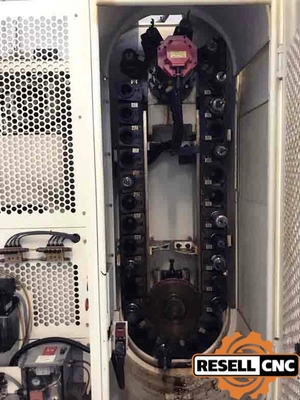

Tool Magazine Capacity: 30.0
Twin Turret: false

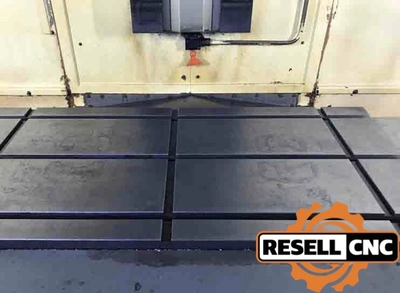

Vertical Table Pallet Size: 43.3" x 20.6
X Travel: 40.0
Y Axis: false
Y Travel: 20.1
Z Travel: 20.1
