X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Programmable Positioning Bracket
Bar Capacity: 4.6
B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

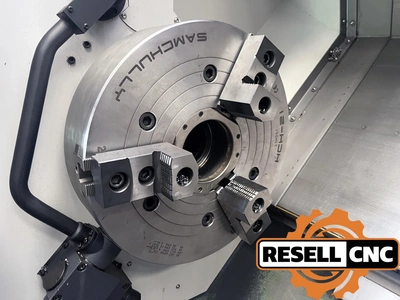

Chuck Description: Samchully 3-Jaw
Chuck Size: 21.0
Chuck Type: Hydraulic

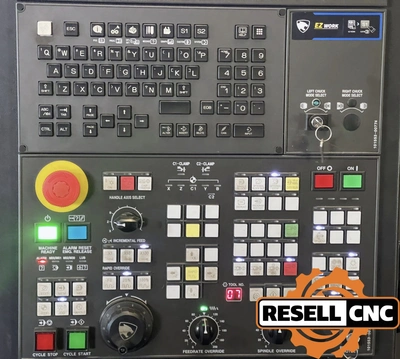

Control Make Model: Fanuc Series 0i-Plus CNC Control
Electrical: 44 KVA
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Cutting Turning Diameter: 21.7
Max Swing Over Bed: 31.1
Max Swing Over Saddle: 23.2
Max Turning Cutting Length: 41.1
Programmable Tailstock: false
Rapid Traverse: 629/787
Single Turret: true
Single Turret Live Tooling: false
Spindle Bore: 5.51
Spindle Motor: 47
Spindle Speed: 2000.0
Steadyrest Type: Hydraulic
Sub Spindle: false
Tailstock: false
Tool Positions: 10.0
Twin Turret: false
X Travel: 14.0
Y Axis: false
Z Travel: 85.0
