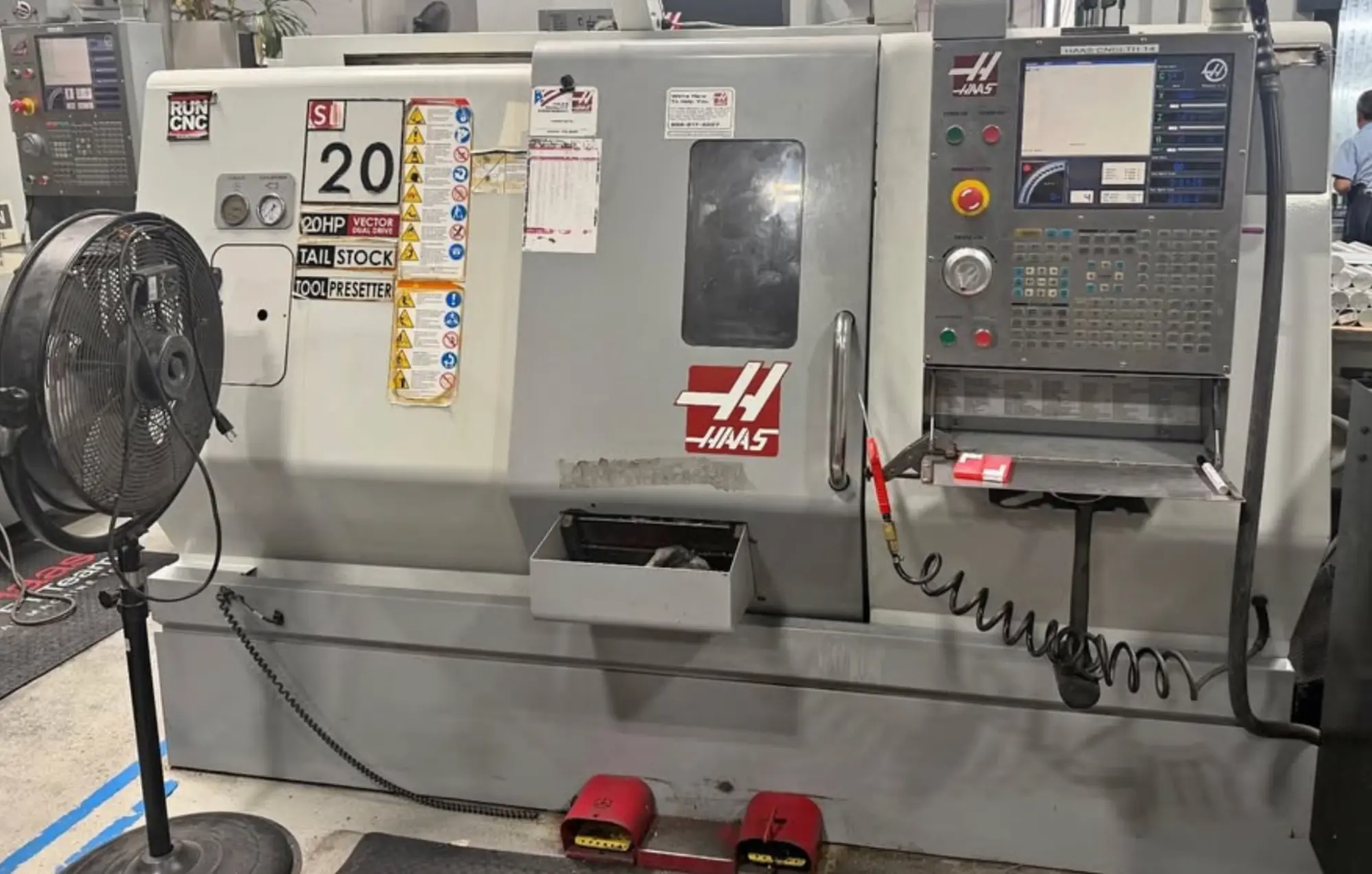

Used CNC Lathe: 23" swing, 24" machining length, 8" chuck, 2" bar capacity, 20 hp, 4,000 RPM, 10.3" turning dia, with tailstock. Features parts catcher, manual tool presetter, spindle orientation, and intuitive programming system.
| Swing | 23" | 584.2 mm |
| Machining Length | 24" | 609.6 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 10.3" | 261.62 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (HAAS) | CNC (HAAS) |
Swing 23"
Machining Length 24"
Chuck Size 8"
Bar Capacity 2"
Power 20 hp
Max RPM 4,000 RPM
Turning Dia 10.3"
Tailstock Yes
Live Tooling No
Sub Spindle No
Parts Catcher
Manual tool PResetter
High Intensity Lighting( need bulbs replaced)
Intuitive Programming System
Spindle Orientation
*toolholders not included
