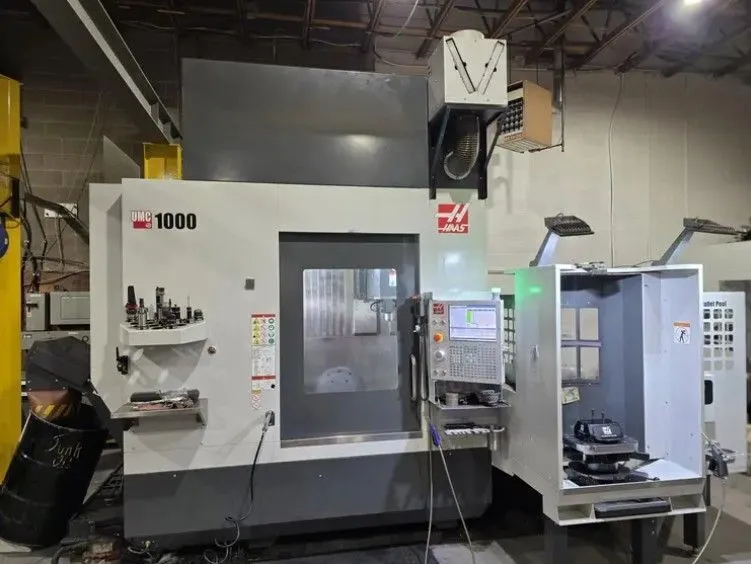

Haas UMC-1000 5-Axis Universal Machining Center, New in 2022
10+1 Station Pallet Pool, 50+1 SMTC, Through Spindle Coolant
| X axis | 40" | 1,016 mm |
| Y axis | 25" | 635 mm |
| Z axis | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 50 | 50 |
| Taper | CT 40 | CT 40 |
| Table-W | 25" | 635 mm |
| Table-L | 25" | 635 mm |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 168" x 94" x 116" | 168" x 94" x 116" |
| Weight | 15,600 lbs | 15,600 lbs |
General Specifications:
X-Axis Travel: 40"
Y-Axis Travel: 25"
Z-Axis Travel: 25"
B-Axis - Tilt: 120° to 35-°
C-Axis - Rotation: 360°
Platter Diameter: 25"
Spindle Speed: 15,000 RPM
Spindle Taper: CT 40
Spindle Motor: 30 HP
Tool Changer: 50+1 Side Mount
Max Weight on Platter: 1000 Lbs
Max Cutting Feedrate: 650 IPM
Rapid Feedrate: 900 IPM
Pallets: 10+1 - 15.75" x 11.75" Pallets
Haas CNC Control
15,000 30 HP Spindle
50+1 Side Mount Tool Changer
Wireless Intuitive Probe System
300 PSI Thru Spindle Coolant
Belt-Type Chip Conveyor
Programmable Coolant Nozzle
95 Gallon Coolant Tank with 1 HP Pump
Dynamic Work Offsets & Tool Center Point Control
10-Station Pallet Pool ($115k Upgrade)
Rigid Tapping
M-Code
Remote Jog Handle
*Replacement Cost: $411,365*
