NEW ESP-MACBORE BV1600

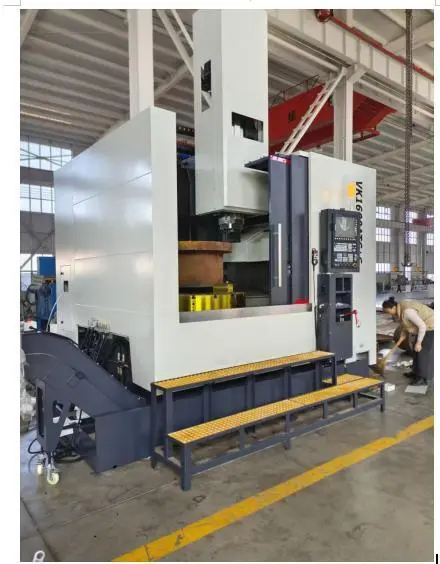

ESP-Macbore CNC Vertical Boring Mill
Fanuc with manual guide.
RAM type
Chuck 1600mm Diameter 3-jaw hydraulic chuck
Swing 2000mm
Z axis min 750mm
2000kg max load on the table.
Tool change minimum 4
Electronic control cabinet cooling
Spindle system:
Spindle unit A2-15;
Main servo motor power;
Equipped with an Italian dual -speed gearbox;
Equipped with an oil cooling device to ensure more stable operation.

Hydraulic centering chuck diameter :Φ1600(mm)
Maximum turning diameter : Φ1800mm
Maximum turning diameter : Φ1600mm
Maximum workpiece height : 800mm
Minimum machined hole diameter : Φ380mm
Maximum workpiece weight ： 2000kg
Spindle speed ：60-800 (r/min) (low speed: 60-
320(r/min) ; high speed: 320-800(r/min) )
1600mm Hydraulic chuck speed ： 300 (Maximum
speed)
Maximum torque of worktable ： 3100NM
Main motor power (continuous/30 minutes): 37kw
form of spindle end： A-15
two-speed gearbox 1:1/1:4
X-axis movement distance: -100 +750mm
Crossbeam lifting movement distance : 750mm
Z-axis slide block lifting movement distance : 900mm
Crossbeam lifting speed: 4(m/min)
X/Z axis speed :12/4(m/min)
Servo motor torque :X/Z Nm 30/22
Servo motor power :X/Z kW 4.7/3.5
Ball screw diameter :X/Z Φ5010mm /Φmm 5008
X specification of roller linear guide 2R-RGH55
Cross -sectional dimensions of square slide block :
240*240mm
Power supply for machine tool: 75 (kVA)
Volume (length × width × height: 3500x3250x3750 mm
total weight : 16000kg
