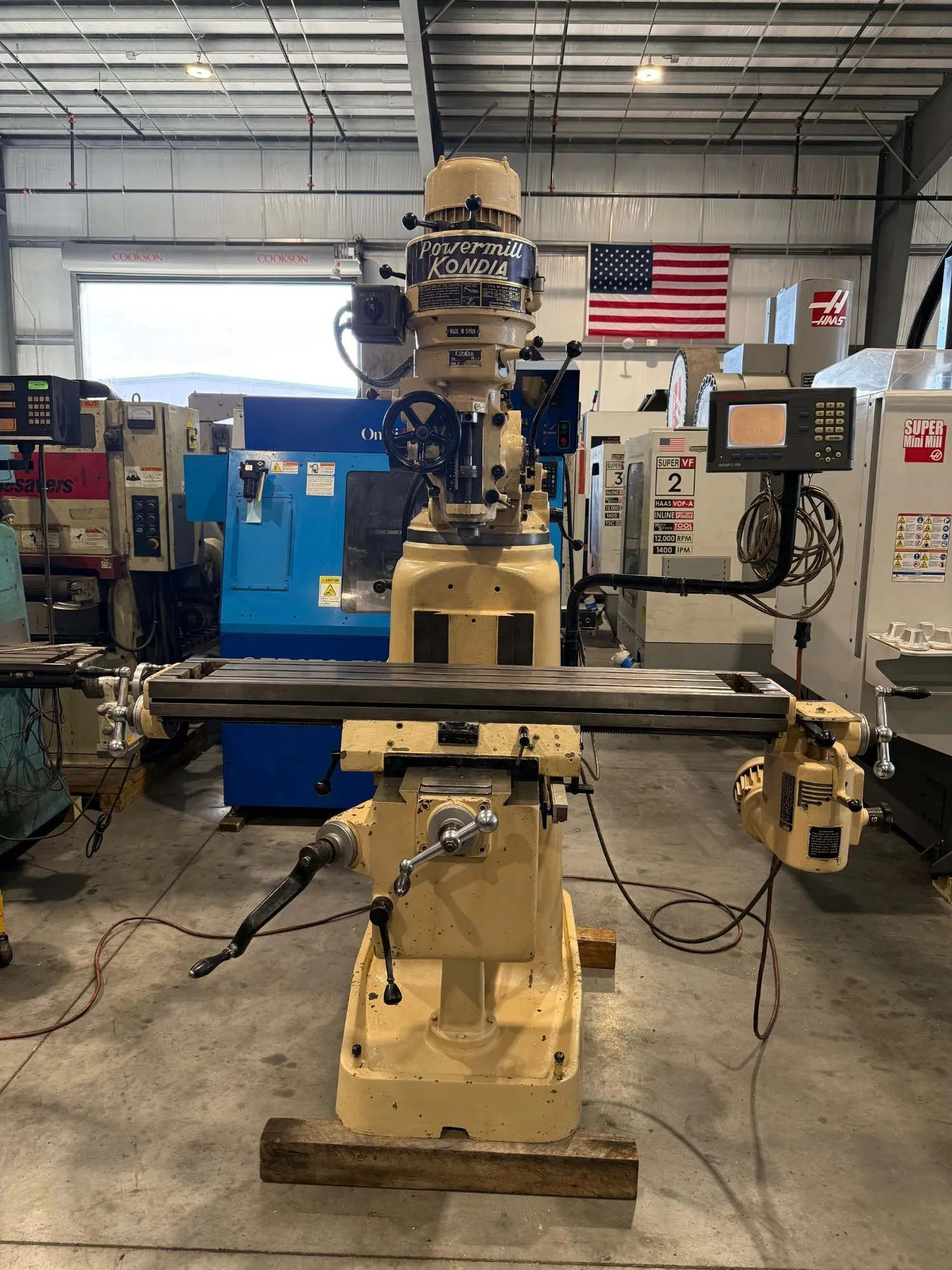

USED CLAUSING KONDIA FV-1

CLAUSING KONDIA # FV-1 Vertical Milling Machine #8124
Reference #8124
Model # FV-1
Serial # 100-15
Table working surface- 9” x 48”
Number of t-slots- 3
Range:
longitudinal (x)- 30”
cross (y)- 15”
vertical, knee (z)- 16-1/2”
quill- 5”
Maximum/Minimum distance, spindle nose to table- 18-1/2" / 0"
Maximum/Minimum distance, centerline of spindle to face of column- 21" / 6"
Ram travel- 14”
Head tilt, left and right- 90 degrees
Head tilt, front to rear, each way- 45 degrees
(3) Power quill feeds- .0015, .0028, .0047 I.P.R.
Spindle speeds- 70 -2,500 R.P.M.
Spindle taper- R-8
Maximum collet capacity- ¾”
