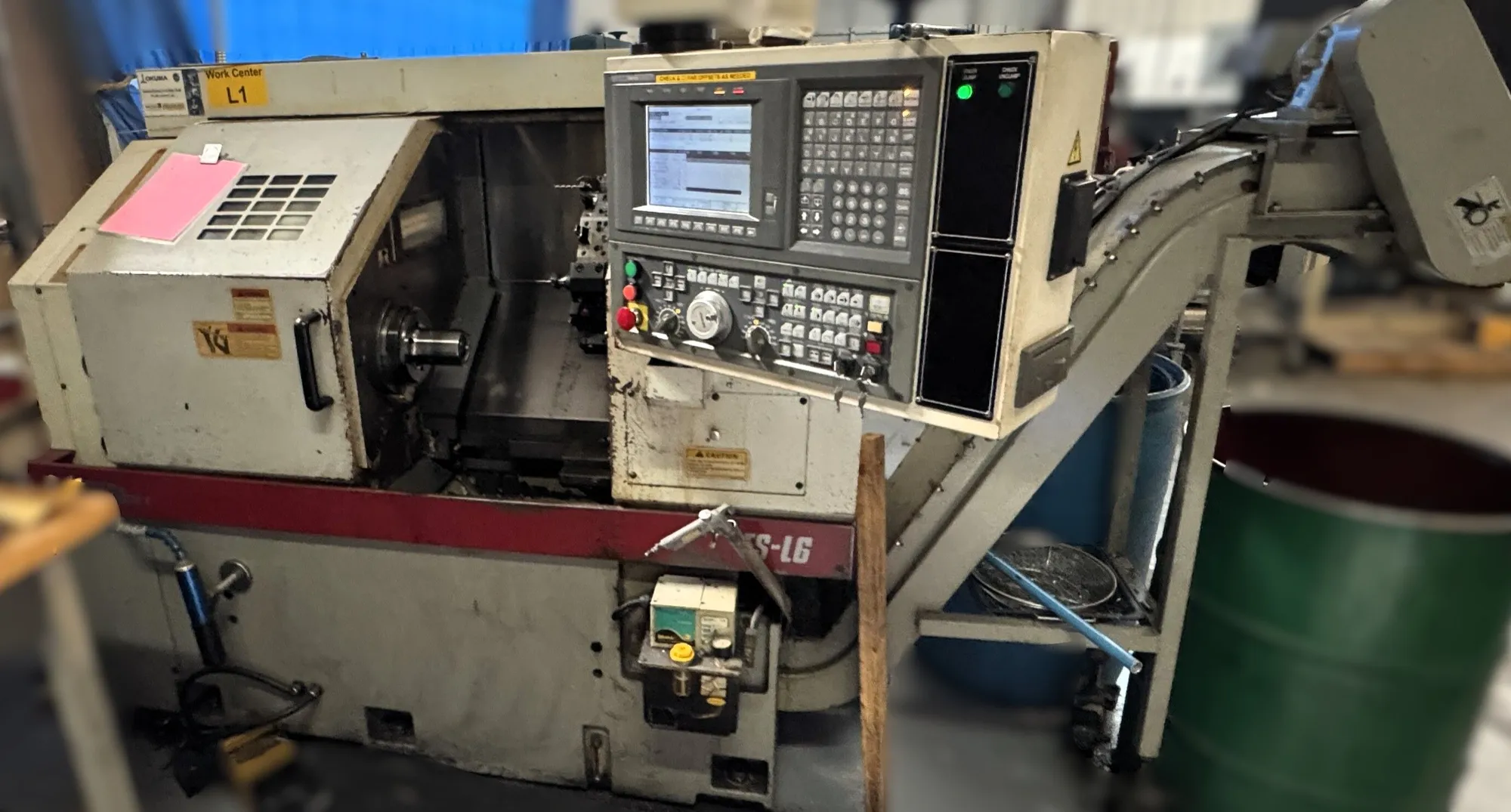

OKUMA ES-L6 CNC Turning Center, New in 2004.
17.72” X 12.6”.
OSP-U10L Control.
Chip Conveyor.
| Swing | 20" | 508 mm |
| Machining Length | 11.02" | 279.91 mm |
| Chuck Size | 6" | 152.4 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 8.27" | 210.06 mm |
| Control | CNC (OSP-U10L) | CNC (OSP-U10L) |
General Specifications:
Max Swing Over Bed: 17.72”
Max Swing Over Cross Slide: 11.81”
Max Swing Over Carriage: 13.78”
Max Distance Between Centers: 11.02”
X - Axis: 6.1”
Z - Axis: 12.6”
Tool Positions: 12
Spindle Bore: 2.36”
Bar Capacity: 2”
17.72” X 12.6”
OSP-U10L Control
Chip Conveyor.
