USED ALLIANCE MANUFACTURING CB-1600D

Benchmark Machine Tools LLC is pleased to submit the following quotation for a fully reconditioned industrial dunnage cleaning system manufactured by Alliance Manufacturing, Inc.

EQUIPMENT DESCRIPTION

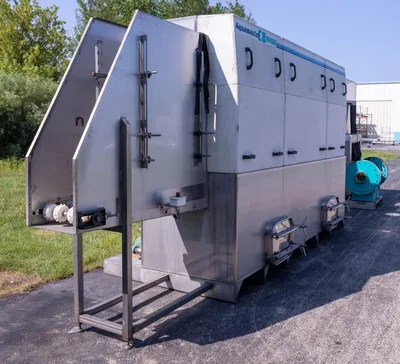

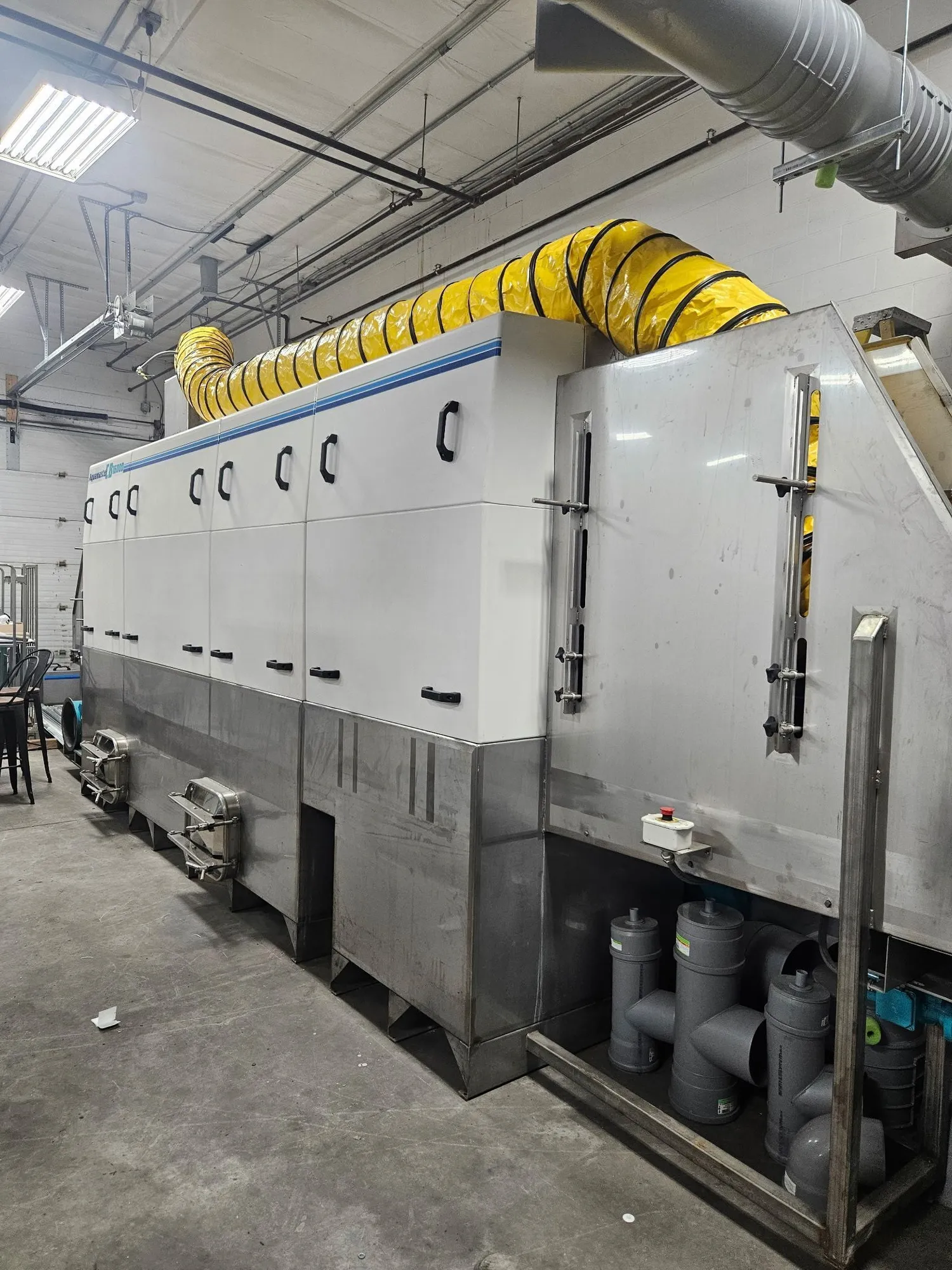

Reconditioned Alliance Aquamaster CB-1600D Conveyorized Dunnage Cleaning System
Machine No.: 718
Electrical: 480V / 3 Phase / 60 Hz

System configuration includes heated wash and ambient blow-off modules for removal of gross moisture from dunnage.

PRICING
Item Description
1.0 Reconditioned Aquamaster CB-1600D conveyorized dunnage cleaning system

F.O.B.: Fond du Lac, Wisconsin
Warranty: 30-day parts warranty from ship date
Factory Run-Off: Machine will be fully operational for customer inspection prior to shipment

Price of comparably equipped new machine today: $320,650.00

SYSTEM CONFIGURATION

RECONDITIONING PROCESS

Machine has been fully reconditioned under Alliance R³ process:

Full mechanical and electrical inspection

Removal and reconditioning of bolt-on components

Full interior and exterior cleaning

Repainting of components

Machine reassembly

Full operational checkout

Factory acceptance test

NEW COMPONENTS INCLUDED

New interior curtains

New spray nozzles

New electric heating elements

New blow-off air hoses

New tank clean-out gaskets

Reconditioned fiberglass canopy with new graphics

Parts: Dunnage (TBD)

Production rate: TBD

Contamination: TBD

Cleanliness: TBD

Dryness: Ambient blow-off

COMMERCIAL TERMS

40% deposit with order

50% prior to shipment

10% net 30 days after shipment

Shipment within one week after factory run-off acceptance

Estimated completion: 6–8 weeks from order

ACCEPTANCE

Please contact Benchmark Machine Tools to proceed with order placement or to schedule factory inspection and run-off.

Process Stages

Stage Description Length
1 Load 5'0"
2 Approach 3'6"
3 Heated Wash 5'0"
4 Drain 3'6"
5 Blow-off (ambient) 4'0"
6 Unload 5'0"

Total Length 25'0"
MACHINE DIMENSIONS

Overall Length: 25'3"

Overall Width: 7'8" (to external filter chamber)

Overall Height: 8'4" (12'2" to top of exhaust fan)

CONVEYOR SYSTEM

16" wide flat wire galvanized steel belt (1" x 1")

Supported by galvanized steel rollers

Adjustable stainless product guides (4" to 8" width)

50" product height clearance

Load/Discharge height: 3'4"

Variable speed conveyor drive (1–6 FPM)

Jam protection included

WASH MODULE

400 gallon stainless steel solution tank (10-ga Type 304 SS)

5 HP cast-iron wash pump (100 GPM @ 30 PSI)

Stainless spray headers with removable spray tubes

Adjustable clip-on spray nozzles (new)

Stainless debris chip basket (1/16" perforation)

Sloped tank bottom with 2" drain and overflow

Quick-access stainless clean-out doors

Watlow Firebar electric heating system (108 kW)

Operating temperature: 130–140°F

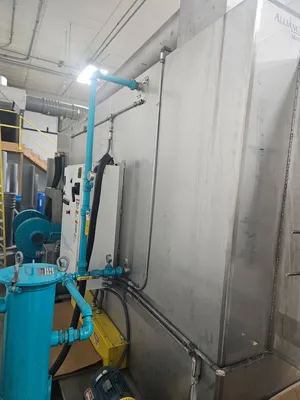

FILTRATION SYSTEM (Included)

External steel filter chamber

8" x 30" disposable filter bags (5 included)

100 micron filtration standard

BLOW-OFF MODULE

Eight (8) high-velocity air knives

Two (2) 10 HP pressure blowers

Combined airflow: 3,444 CFM

Air velocity: 17,108 FPM (194 MPH)

New air hoses included

CONTROL SYSTEM

NEMA 12 enclosure

200 amp fused disconnect

Magnetic starters with overload protection

120V control transformer

NEC compliant

Full load amps: 173.4

CANOPY SYSTEM

Fiberglass insulated canopy with gelcoat finish

Alliance FulAccess segmented lift-off canopy

Safety interlock pump shutoff

Sound dampening and thermal insulation

EXHAUST SYSTEM (Included)

3 HP axial exhaust fan

Stainless condensation precipitation box

Condensate returned to wash tank

Ducting by customer

OPTIONAL ACCESSORIES
Item Description Price
2.0 Product sensor at load end $1,750
2.1 Solution heat auto-timer $1290
2.2 Belt-type oil skimmer $5,490
APPLICATION (Customer to Confirm)
