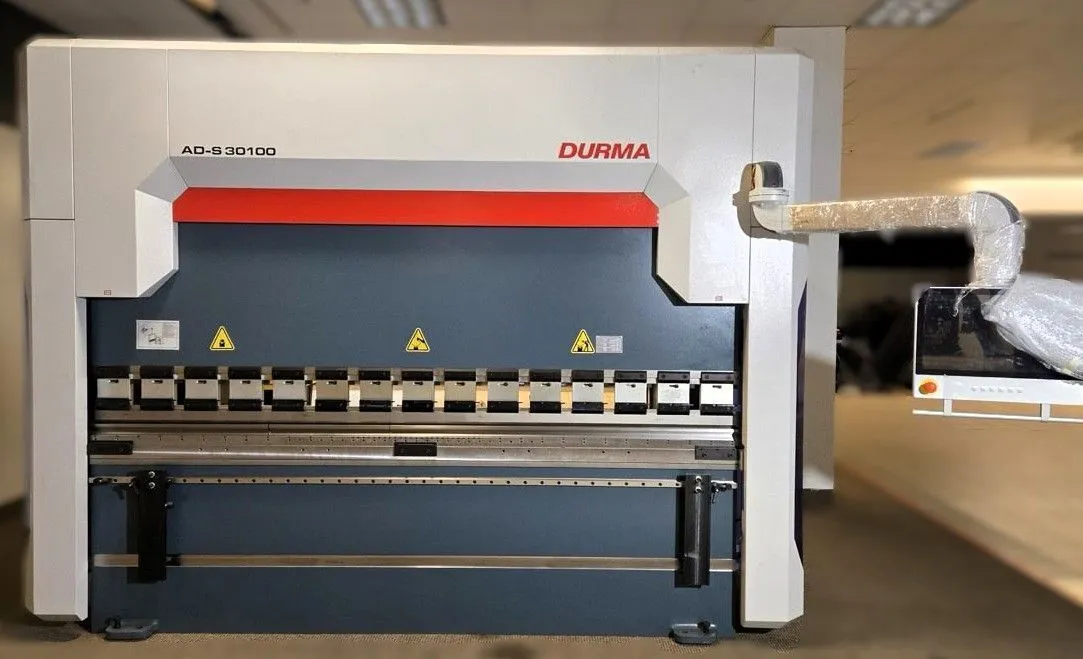

DURMA AD-S 30100 Hydraulic Press Brake 4-Axis Backgauge, New in 2022.
110 Ton x 10'.
4-Axis Backgauge (Y1, Y2, X, R)
Sky 22 Control Unit.
Sliding Front Arms.
Unused.
| Tonnage | 110 T | 99.79 t |
| Type | HYD | HYD |
| Overall Length | 120" | 3 m |
| Between Housings | 102" | 2.6 m |
| Stroke | 10.43" | 264.92 mm |
| # Axis | 4 | 4 |
| Control | CNC | CNC |
| Dimensions | 165.35" x 65.75" x 108.27" | 165.35" x 65.75" x 108.27" |
| Weight | 18,739 lbs | 18,739 lbs |
General Specifications:
Bending Force: 110 Tons
Bending Length: 120.08″
Distance Between Columns: 102.36″
Stroke: 10.43″
Y Rapid Speed: 0.39 in/sec
Daylight: 4.72″
Throat Depth: 16.14″
Y Working Speed: 0.43 in/sec
Y Return Speed: 5.91 in/sec
Motor Power: 15 HP
Length: 165.35″
Width: 65.75″
Height: 108.27″
Weight: 18,739 lbs
Sky 22 Control Unit
4 Axis Backgauge (Y1, Y2, X, R)
European / universal Type Tool Holding System
Sliding Front Arms Slide on Full-Length Linear Slides with T-Channel & Locking
Motorized bending controlled via CNC Unit
