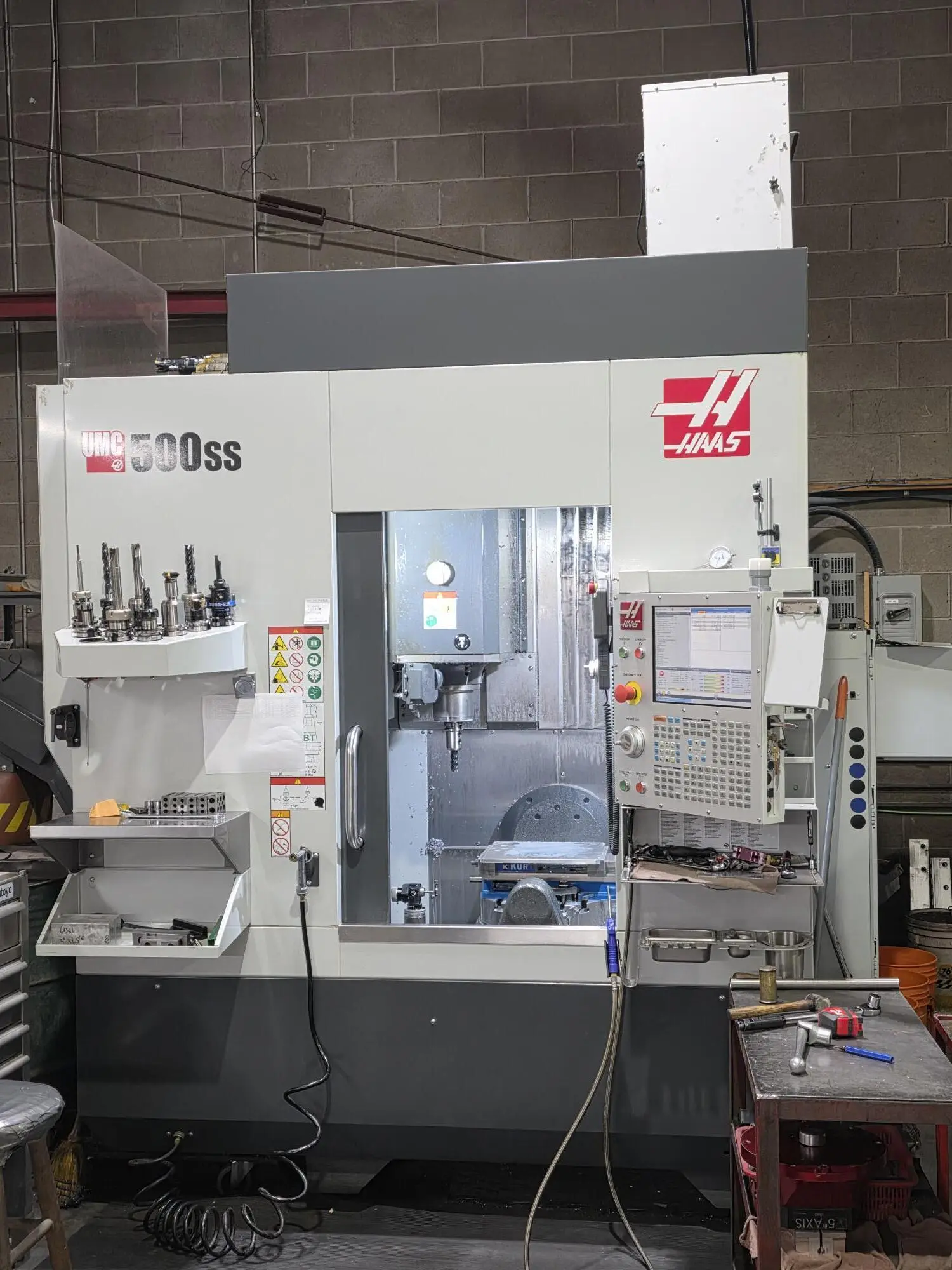

2021/2022 Haas UMC-500SS
12K RPM, 30 HP, 50+1 SMTC, Thru Spindle Coolant, Chip Conveyor - $200k replacement value! Approx 2000 Cutting Hours
| X | 24" | 609.6 mm |
| Y | 16" | 406.4 mm |
| Z | 16" | 406.4 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 31 | 31 |
| Taper | 40 | 40 |
Haas UMC-500SS 5-Axis Universal Machining Center
New: 11/2021; installed 01/2022
Specifications:
Travels:
X-Axis: 24"
Y-Axis: 16"
Z-Axis: 16"
Spindle Nose-Platter: 4" - 20"
B-Axis - Tilt: 120° to 35-°
C-Axis - Rotation: 360°
Platter Diameter: 15.7"
Spindle Speed: 12,000 RPM
Spindle Taper: #40
Spindle Motor: 30 HP
Tool Changer: 50+1 Side Mount
Max Weight on Platter: 500 Lbs
Max Cutting Feedrate: 650 IPM
Rapid Feedrate: 900 IPM
Equipped With:
Haas CNC Control
12,000 30 HP Direct Drive Spindle
50+1 Side Mount Tool Changer
Wireless Intuitive Probe System
300 PSI Thru Spindle Coolant
Belt-Type Chip Conveyor
Programmable Coolant Nozzle
Chip Strainer
Mist Away Mist Extractor
Part Pick Up Probe
Tool Length Measurement
55 Gallon Coolant Tank
Dynamic Work Offsets & Tool Center Point Control
Rigid Tapping
M-Code
Remote Jog Handle
Replacement Cost $214,080
