| Capacity | 3" | 76.2 mm |
| Bar Length | 48" | 1.2 m |
| Weight | 900 Lbs | 900 Lbs |
Bar Diameter Range 0.375" to 3"
Bar Length Capacity 48 "
Minimum Bar Length 10 "
Tray Capacity 30 EA x 1"
Max Weight of Total Bars 650 lbs
Machine Weight 900 lbs

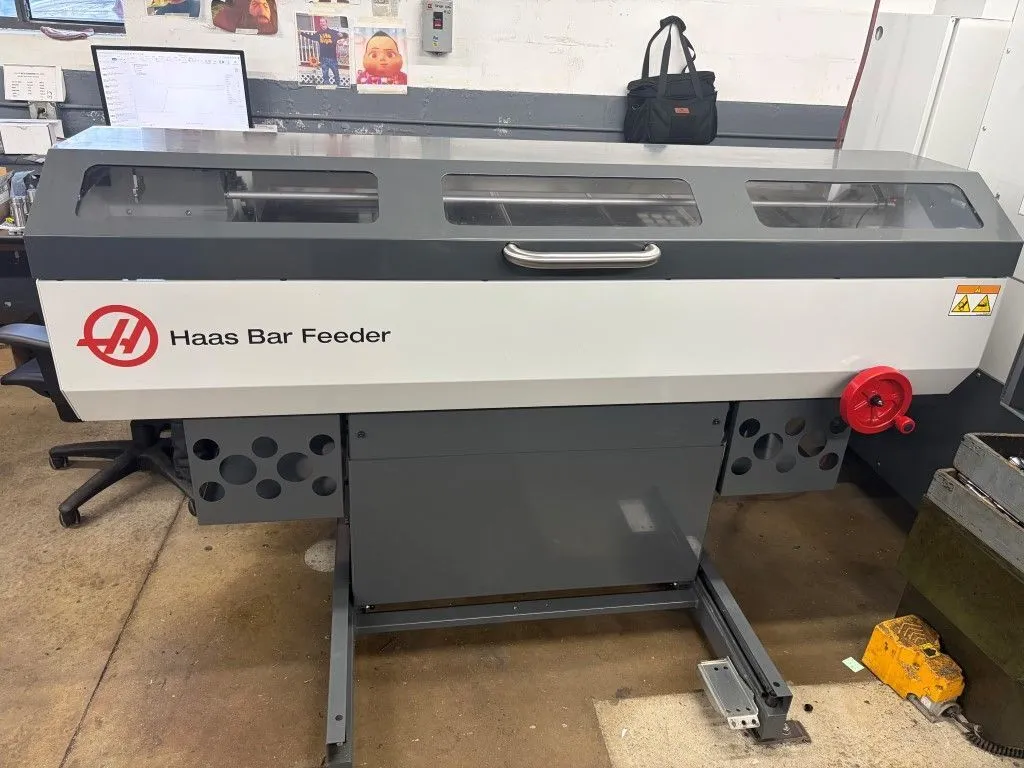

The V2 version of the Haas Bar Feeder is compatible with Haas lathes built after 03/01/2021, with NGC control. To use the V2 bar feeder on NGC lathes built prior to 03/01/2021, a software patch may be required (available through your local HFO). Haas Bar Feeder V2 version is NOT compatible with Haas lathes with the Classic Haas Control (Coldfire).
Spindle liners for 3/8" to 2-3/4" diameter bars
**Came off a Haas ST-28Y**
