Used

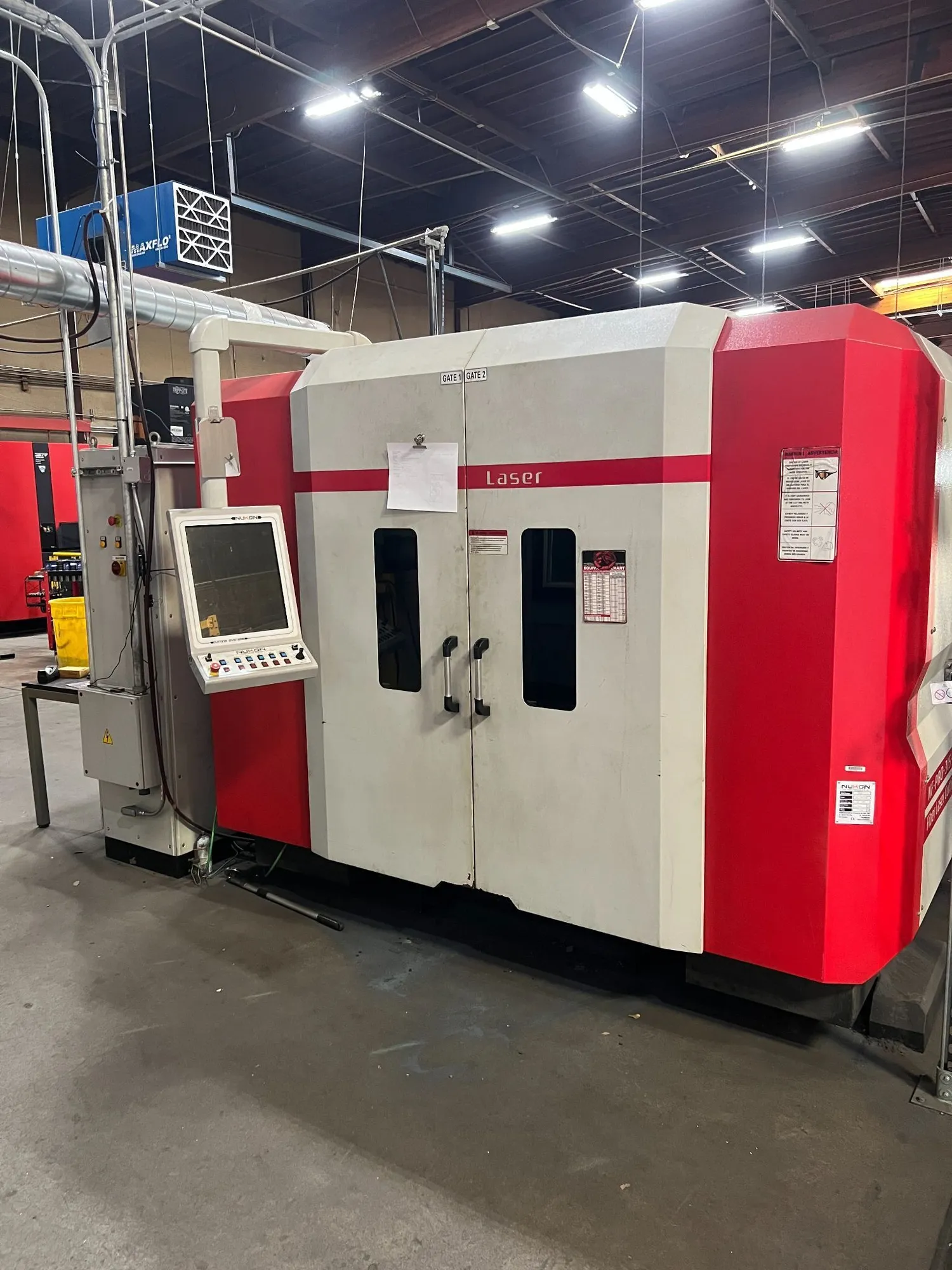

USED 2014 NUKON 315 ECO 4KW

Illinois, United States
263Listings|115Followers
Overview
Laser Cutters

For sale: NUKON 315 ECO 4KW laser cutter, 2014 model. A powerful and efficient choice for precision cutting tasks. Ideal for various industrial applications. Condition: used.

Specs
Sheet-W
60"
1,524 mm
Sheet-L
120"
3,048 mm
Wattage
4000 w
4,000 W
X
60"
1,524 mm
Y
120"
3,048 mm
Z
5.9"
149.86 mm
Control
CNC
CNC
Dimensions
8997 mm x 4830 mm x 2300 mm
8997 mm x 4830 mm x 2300 mm
Weight
15500kg
15500kg

- Laser Power: 4 kW (IPG resonator)
- Cutting Head: Auto-focus (NUKON BIMO-FSC)
- Control Unit: PA 8000 LW with 19" TFT touch screen
- Table Size: 1530 mm × 3050 mm (60" × 120")
- Z-Axis Travel: 150 mm (5.9")
- Table Height: 900 mm (35.5")
- Max Load Capacity: 2000 kg (4409 lbs)
- Machine Weight: 15,500 kg (34,171 lbs)
- Dimensions (L × W × H): Approximately 8997 mm × 4830 mm × 2300 mm
- 1 year installation and warranty included
