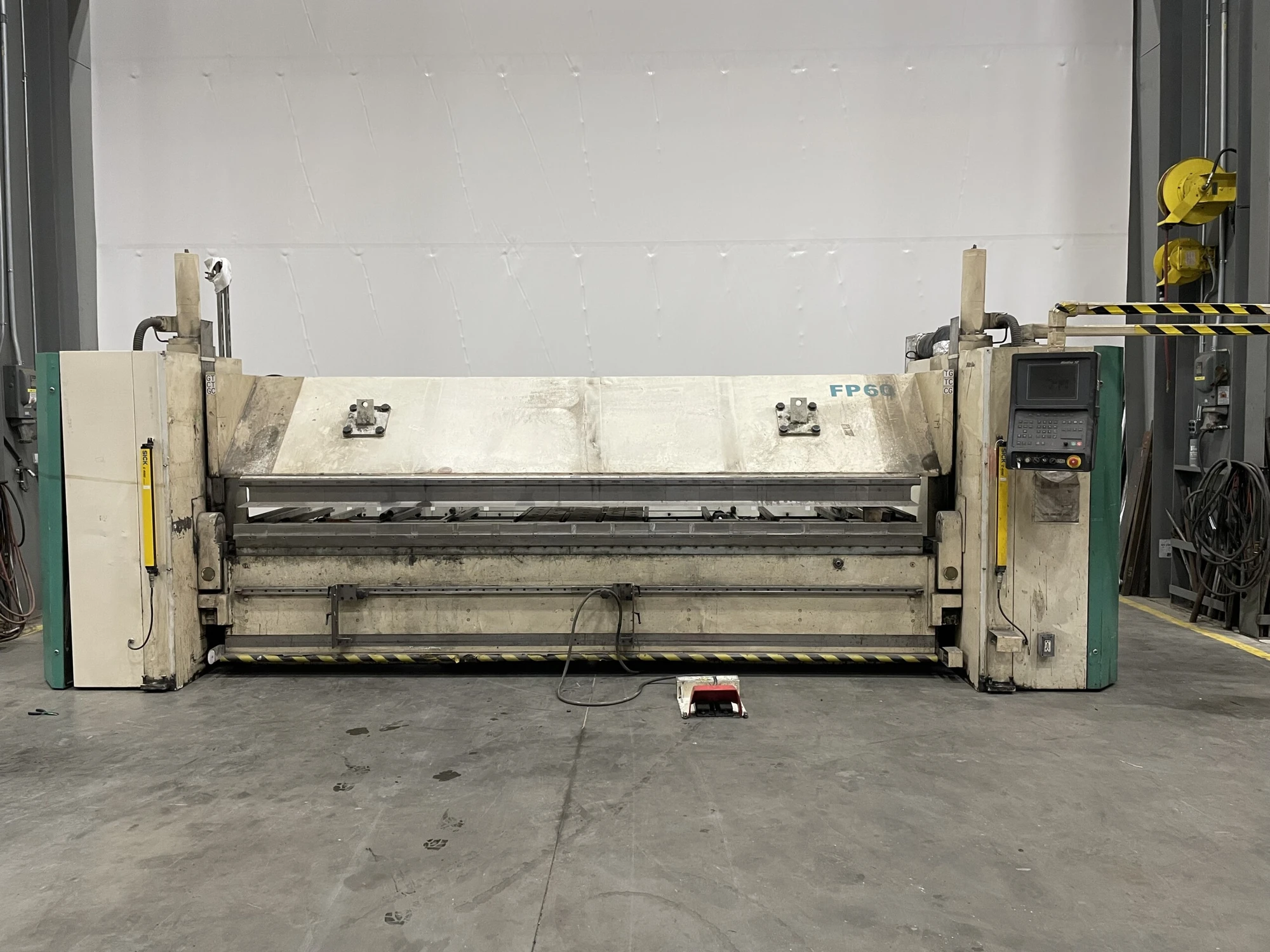

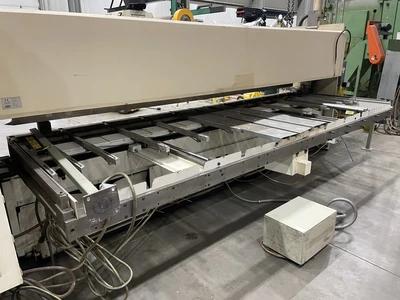

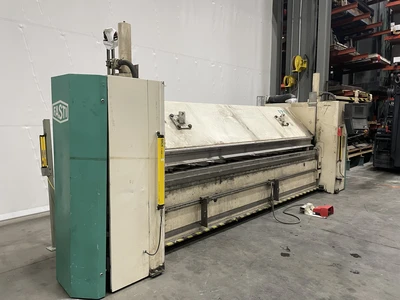

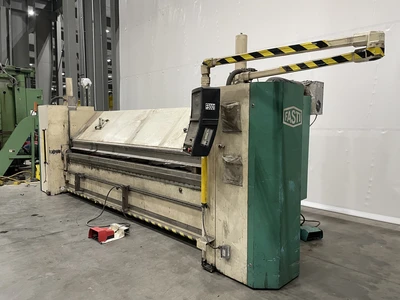

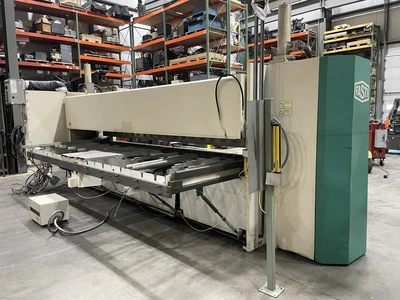

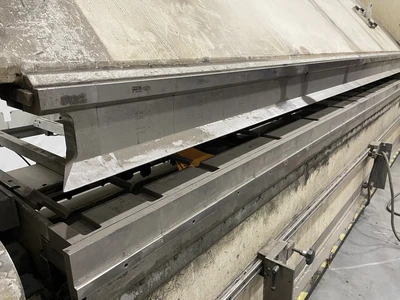

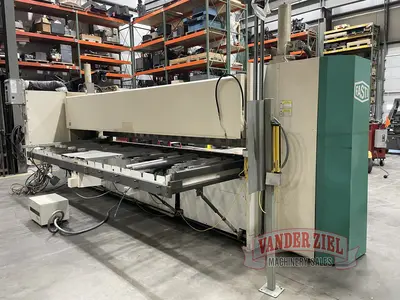

Fasti 159” x 11/64” CNC Folding Machine, Model FP60 – 40/4

Specifications:
Nominal Length 159”
Capacity .15748”
Clamping Beam Stroke 15.75”
Max. Clamping Speed Up/Down 2.36” / sec
Max. Bending Speed Up/Down 60º/sec
Max. Bending Angle 150º
Max Bending Leg Length, Angle 0-90º 7 x Sheet Thickness
Min. Bending Leg Length, Angle 90-150º 8 x Sheet Thickness
Min. Inner Bend Radius 1.5 x Sheet Thickness
Max. Inner Bend Radius 2 x Sheet Thickness
Motor Output Clamping Beam 4.0 kW
Motor Output Folding Beam 2 x 4.0 kW
Bed Height 35.5”
Overall Length 231”
Overall Height 79”
Weight 22,900 lbs.
Folder is equipped with SICK C400 Light Curtains.
Preliminary Specifications – Subject to Verification
