NEW TENNSMITH CB24

Specifications:
TENNSMITH’s cleat benders are manually operated tools that form uniform drive cleat edges on rectangular ductwork in seconds without set-up or adjustment. The upper handle forms the cleat and the lower handle opens the tool for easy removal of the material. Heavy cast iron and fabricated steel construction provides long life and trouble-free operation. A TENNSMITH cleat bender can save you time and money.

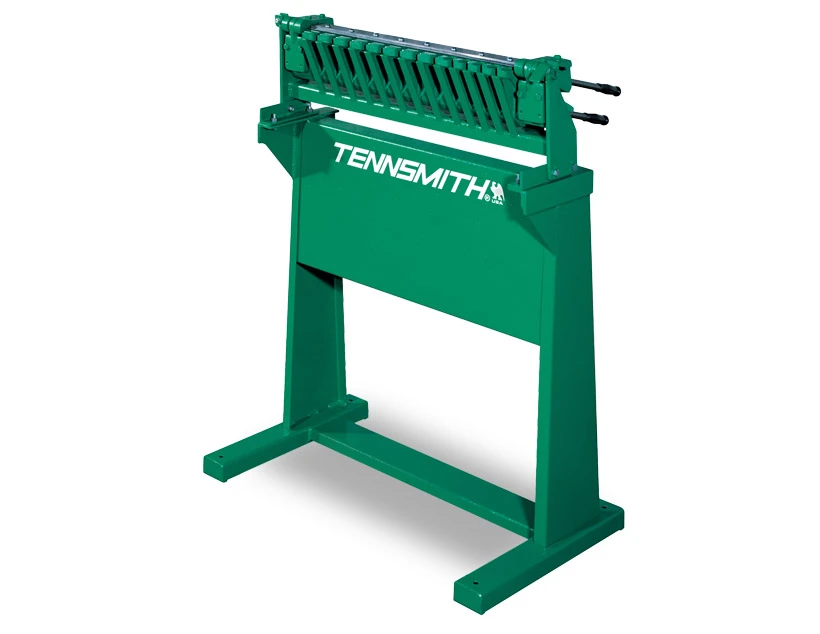

*Shown with Optional Stand

Cleat Benders
Model 24
Maximum capacity, mild steel
20 gauge/1.0 mm
Maximum bending
24 in./610 mm
Depth of drive cleat
1/2 in./12.7 mm
Dimensions, handles removed, LxWxH
32 x 10 x 11 in.
813 x 254 x 280 mm
Shipping weight
95 Ibs./44 kg
Available option: Heavy-duty fabricated stand.
