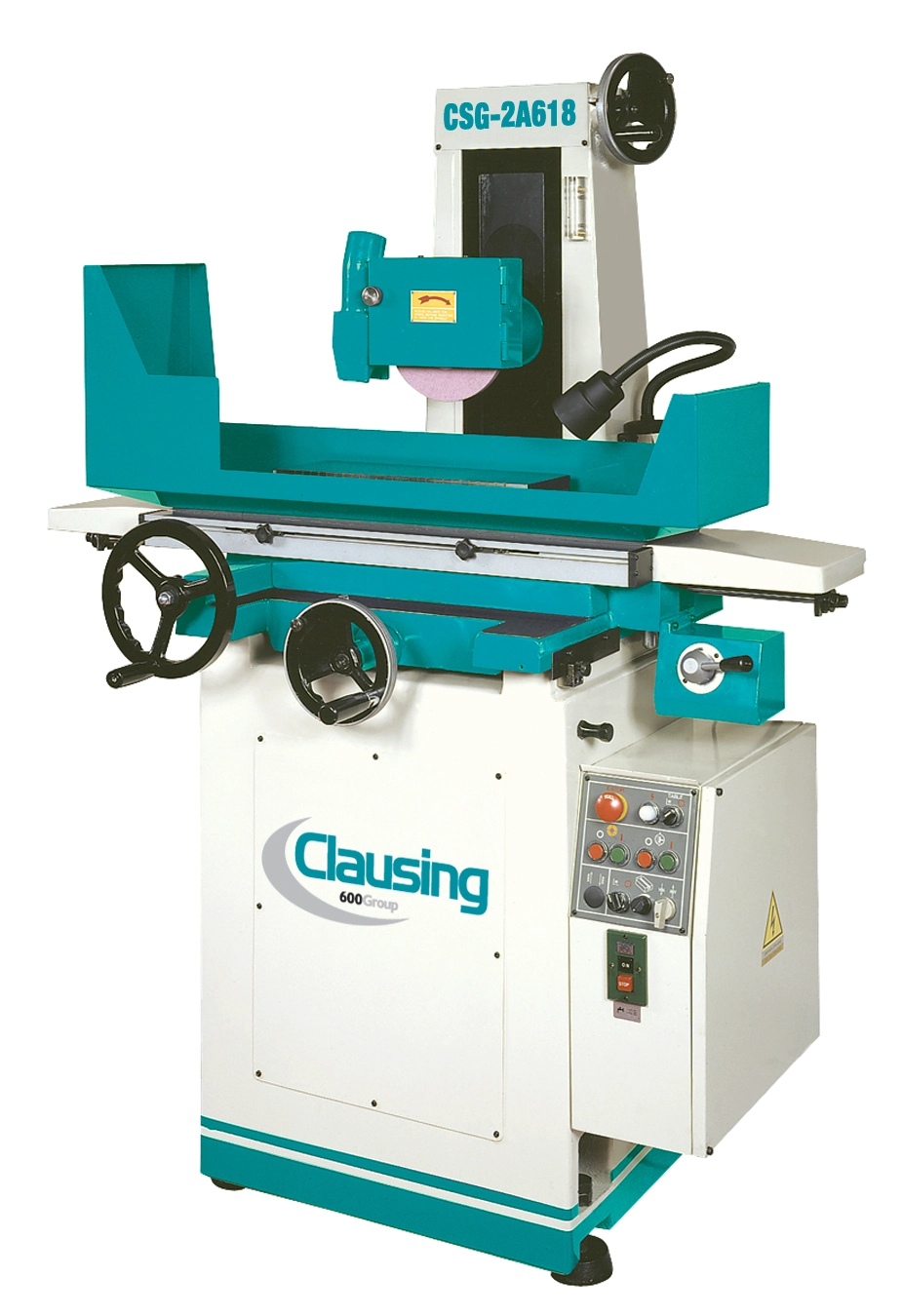

Clausing Model CSG-2A Hydraulic Surface Grinders – NEW
Models
CSG2A618
CSG2A818
CSG2A1020
CSG2A1224
Table Size
6″ x 18″ (152 x 460mm)
8″ x 18″ (203 x 460mm)
10″ x 20″ (254 x 508mm)
11.81″ x 23.62″ (300 x 600mm)
Max. grinding length (longitudinal)
19″ (480mm)
19″ (480mm)
20.47″ (520mm)
23.62″ (600mm)
Max. grinding width (crosswise)
6.61″ (168mm)
9″ (228mm)
11″ (280mm)
11.81″ (300mm)
Max. distance from table surface to spindle centerline (standard column)
18″ (460mm)
18″ (460mm)
19.68″ (500mm)
23″ (585mm)
(optional column)
23.62″ (600mm)
–
Standard magnetic chuck size
6″ x 18″ (150 x 450mm)
8″ x 18″ (200 x 450mm)
10″ x 20″ (250 x 500mm)
12″ x 24″ (300 x 600mm)
Longitudinal movement of table
Max. travel (hydraulic)
19″ (480mm)
19″ (480mm)
22.83″ (580mm)
25.59″ (650mm)
Max. travel (manual)
20″ (510mm)
20″ (510mm)
24.41″ (620mm)
28.74″ (730mm)
Table speed infinitely variable
196″-984″/min. (5-25 m/min.)
196″-984″/min. (5-25 m/min.)
196″-984″/min (5-25 m/min.)
196″-984″/min. (5-25 m/min.)
Crossfeed transverse travel
Auto transverse increment
.04″ – .4″(1-10mm)
.04″ – .4″(1-10mm)
.04″ – .5″ (1-13mm)
.04″ – .75″ (1-19mm)
Max. auto transverse travel
7″ (180mm)
9.25″ (235mm)
10.63″ (270mm)
12.2″ (310mm)
Max. manual transverse travel
7.68″ (195mm)
9.84″ (250mm)
11.81″ (300mm)
13.39″ (300mm)
Handwheel per revolution
0.2″ (5mm)
0.2″ (5mm)
0.2″ (5mm)
0.2″ (5mm)
Handwheel per graduation
0.0008″ (.02mm)
0.0008″ (.02mm)
0.0008″ (.02mm)
0.0008″ (.02mm)
Wheelhead vertical downfeed
Rapid Travel Approx.
N/A
N/A
Handwheel per revolution
0.04″ (1mm)
0.04″ (1mm)
0.04″ (1mm)
0.04″ (1mm)
Handwheel pe graduation
0.0002″ (.005mm)
0.0002″ (.005mm)
0.0002″ (.005mm)
0.0002″ (.005mm)
Grinding spindle drive
Speed (rpm)
3450
3450
3450
1750
Power rating
2 Hp
2 Hp
3 Hp
5 Hp
Standard grinding wheel
Diameter
8″ (203mm)
8″ (203mm)
8″ (203mm)
12″ (304mm)
Width
.5″(12.7mm) max .75″(19mm)
.5″(12.7mm) max .75″(19mm)
.75″(19mm) max 1″(25mm)
1.25″ (31.75mm)
Bore
1.25″ (31.75mm)
1.25″ (31.75mm)
1.25″ (31.75mm)
3″ (76.2mm)
Hydraulic motor (power rating)
1 Hp x 6P
1 Hp x 6P
2 Hp x 6P
2 Hp x 6P
Crossfeed motor (power rating)
1/6 Hp x 6P
1/6 Hp x 6P
80W
80W
Elevating motor (power rating)
–
–
N/A
N/A
Total space required (LxWxH)
71″ x 45″ x 65″ (1810 x 1133 x 1660mm)
71″ x 50.6″ x 66″ (1810 x 1285 x 1680mm)
94.5″ x 57″ x 68.9″ (2400 x 1450 x 1750mm)
106.3″ x 63″ x 73″ (2700 x 1600 x 1850mm)
Net weight
1,808 lbs (820kg)
2,579 lbs (1170kg)
3,916 lbs (1780kg)
4,299 lbs (1950kg)
Gross weight
2,138 lbs (970kg)
2,954 lbs (1340kg)
4,695 lbs (2130kg)
4,960 lbs (2250kg)
Rated power, approx
3 Hp (2.3 kw)
3 Hp (2.3 kw)
5 Hp (3.7 kw)
8 Hp (6 kw)
Packing dimensions (L x W x H)
65″ x 45″ x 76″ (1650 x 1140 x 1930mm)
67″ x 53″ x 76″ (1710 x 1340 x 1930mm)
91″ x 84″ x 83″ (2290 x 2130 x 2100mm)
91″ x 84″ x 83″ (2290 x 2130 x 2100mm)
