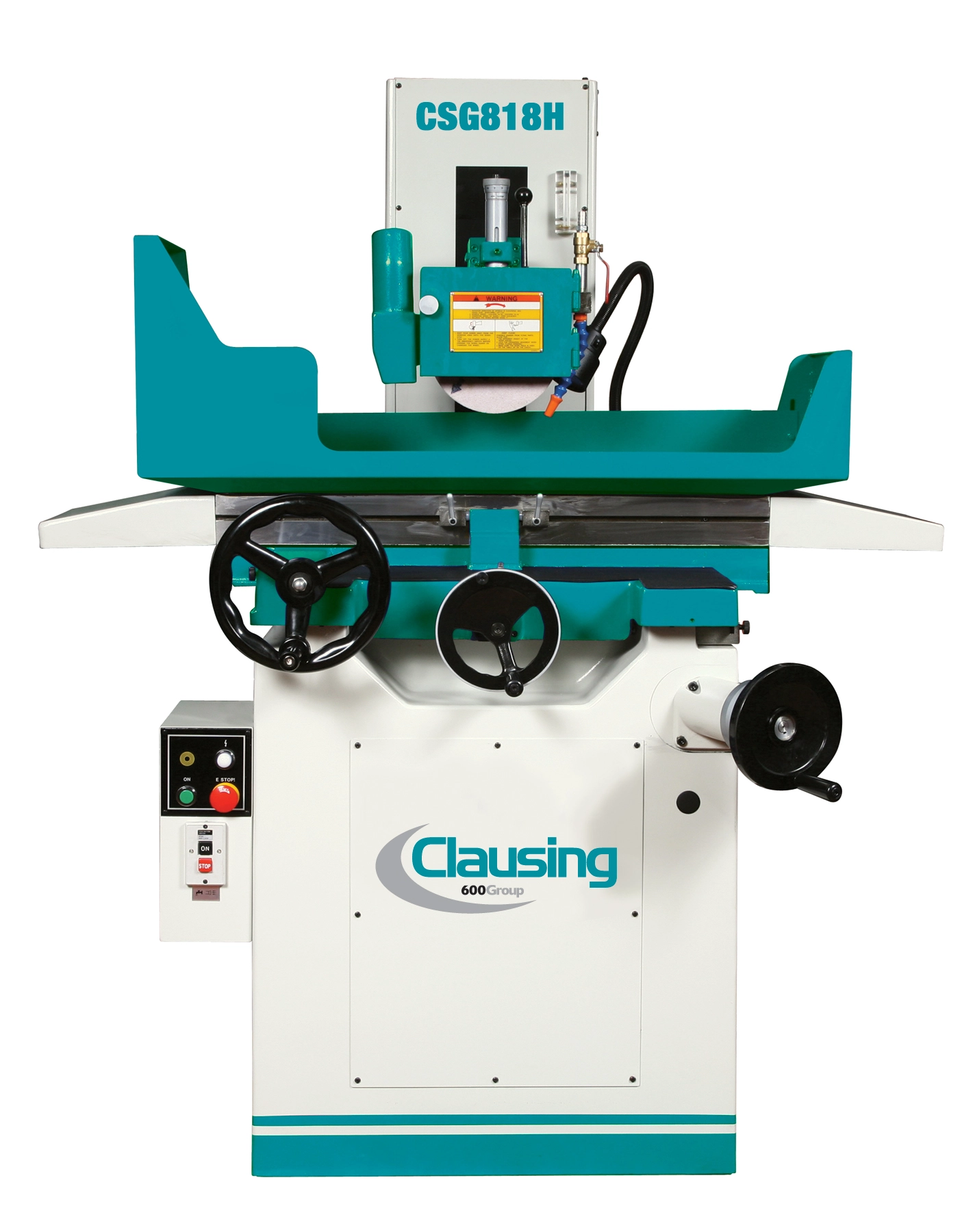

Clausing Model CSG-H Hand Surface Grinders – NEW
Models
CSG618H
CSG818H
Table Size
6″ x 18″ (152 x 460mm)
8″ x 18″ (203 x 460mm)
Max. grinding length (longitudinal)
19″ (480mm)
19″ (480mm)
Max. grinding width (crosswise)
7″ (179mm)
9.375″ (238mm)
Max. distance from table surface to spindle centerline (standard column)
18″ (460mm)
18″ (460mm)
Standard magnetic chuck size
6″ x 18″ (150 x 450mm)
8″ x 18″ (200 x 450mm)
Longitudinal movement of table
Max. travel (hydraulic)
–
–
Max. travel (manual)
20″ (510mm)
20″ (510mm)
Table speed infinitely variable
–
–
Crossfeed transverse travel
Auto transverse increment
–
–
Max. auto transverse travel
–
–
Max. manual transverse travel
7.68″ (195mm)
9.84″ (250mm)
Handwheel per revolution
0.2″ (5mm)
0.2″ (5mm)
Handwheel per graduation
0.0008″ (.02mm)
0.0008″ (.02mm)
Wheelhead vertical downfeed
Handwheel per revolution
0.04″ (1mm)
0.04″ (1mm)
Handwheel per graduation
0.0002″ (.005mm)
0.0002″ (.005mm)
Grinding spindle drive
Speed (rpm)
3450
3450
Power rating
2 Hp
2 Hp
Standard grinding wheel
Diameter
8″ (203mm)
8″ (203mm)
Width
.5″(12.7mm) max .75″(19mm)
.5″(12.7mm) max .75″(19mm)
Bore
1.25″ (31.75mm)
1.25″ (31.75mm)
Hydraulic motor (power rating)
–
–
Crossfeed motor (power rating)
–
–
Elevating motor (power rating)
–
–
Total space required (LxWxH)
71″ x 45″ x 65″ (1810 x 1133 x 1660mm)
71″ x 50.6″ x 66″ (1810 x 1285 x 1680mm)
Net weight
1,587 lbs (720kg)
2,332 lbs (11060kg)
Gross weight
1,873 lbs (850kg)
2,662 lbs (1210kg)
Rated power, approx
2 Hp (1.5 kw)
2 Hp (1.5 kw)
Packing dimensions (L x W x H)
51″ x 45″ x 76″ (1300 x 1140 x 1930mm)
60″ x 45″ x 76″ (1530 x 1300 x 1930mm)
