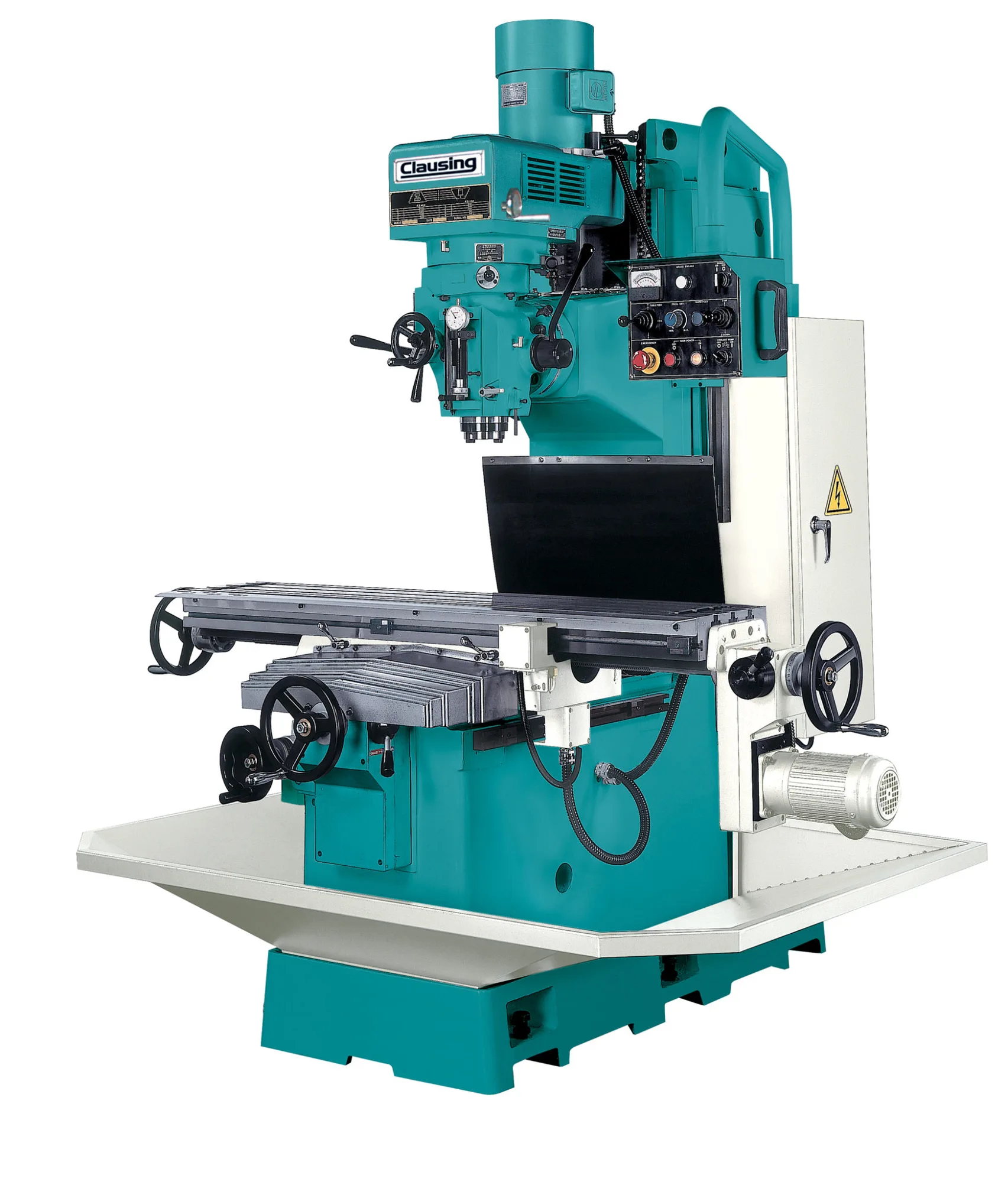

Clausing 4BVSCNC40 Bed Mill, 10″ x 54″ Table, 5 HP – NEW

Clausing 4BVS40 Bed Mill, 10″ x 54″ Table, 5 HP – NEW

Standard Features…
Powerful 5 Hp spindle drive motor
Mechanical variable speed drive with 2 speed ranges
Hardened and ground spindle with NT40 taper
Hardened and chromed quill with 5″ travel
CP4 ABEC7 angular contact spindle bearings
C7 double nut X/Y/Z axes 1.26″ diameter ballscrew
Hardened and ground table surface
Ground T-slots to provide accurate reference edge
Hardened and ground, square X/Y ways
Turcite B coating on saddle X/Y axes ways
Meehanite castings for superior rigidity and wear resistance
Stainless steel front Y axis way cover
Rubber Z axis and rear Y/Z axes way covers
Automatic lubrication with alarm with alarm
Transformer
Long arm halogen work light
Coolant system with pump
Tools, toolbox and parts
Models
4BVS40
SUP4BVS40
Table Size
10″ x 54″ (254x1371mm)
10″ x 54″ (254x1371mm)
Table Load Capacity
1,500 lbs. (680kg)
1,500 lbs. (680kg)
Number of T-Slots
3
3
T-Slot Width
.63″ (16mm)
.63″ (16mm)
T-Slot Center Distance
2.48″ (63mm)
2.48″ (63mm)
Table Ways (X Axis) Turcite B coated
Dovetail
Dovetail
Bed Ways (Y Axis) Turcite B coated
Square
Square
Column Ways (Z Axis)
Square
Square
TRAVELS
Longitudinal (X Axis)
29.8″ (775mm)
30.51″ (775mm)
Cross (Y Axis)
19.6″ (445mm)
17.52″ (445mm)
Vertical (Z Axis)
18.5″ (500mm)
19.69″ (500mm)
Quill Diameter
4.13″ (105mm)
4.13″ (105mm)
Quill Travel
5″ (127mm)
5″ (127mm)
Head Tilt (left or right)
90°
90°
Feedrate X & Y Axes
100 (in/min) (18-788mm/min)
.71-31 (in/min) (18-788mm/min)
Feedrate Z Axis
75 (in/min) (18-788mm/min)
.71-31 (in/min) (18-788mm/min)
X & Y Axes AC Motor with Brake
1/2 Hp
1/2 Hp
Z Axis AC Motor with Brake
1/2 Hp
1/2 Hp
SPINDLE
Motor
5 Hp (mechanical V.S.)
5 Hp (Inverter V.S.)
Spindle Speeds (Infinitely Variable)
70-4300 rpm
65-5160 rpm
No. of Speed Ranges
2
2
Low Gear Range
70-500 rpm
65-590 rpm
High Gear Range
570-4300 rpm
575-5160 rpm
Spindle Taper
NT 40
NT 40
Quill feed in/revolution (mm/revolution)
.0016/.003/.006 (0.04/0.08/0.015)
.0016/.003/.006 (0.04/0.08/0.015)
CONSTRUCTION
Height
78.74″ (2000mm)
78.74″ (2000mm)
Working Width
71.46″ (1815mm)
71.46″ (1815mm)
Working Depth
66.14″ (1680mm)
66.14″ (1680mm)
Width Across Column Ways
11.73″ (298mm)
11.73″ (298mm)
Length of Saddle on Bed
25.98″ (600mm)
25.98″ (600mm)
Width Across Bed Ways
16.53″ (420mm)
16.53″ (420mm)
Spindle Nose to Table
3.15″-22.83″ (80-580mm)
3.15″-22.83″
Center of Spindle to Column ways
17.32″ (440mm)
17.32″ (440mm)
Floor to Table Surface
36.2″ (920mm)
36.2″ (920mm)
Table to Column Ways
3.15″-20.87″ (80-530mm)
3.15″-20.87″ (80-530mm)
Ball Screw Dia./Pitch
1.26″/.2″ (32/5mm)
1.26″/.2″ (32/5mm)
Ball Screw Class
C7
C7
Gross Weight (approximately)
4,400 lbs (2000kg)
4,400 lbs (2000kg)
