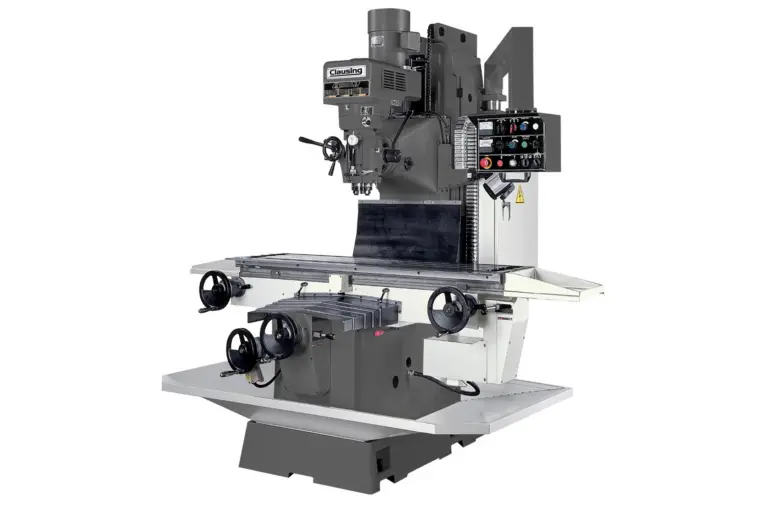

Clausing 6BVS40 Bed Mill, 15″ x 60″ Table, 5 HP – NEW

Clausing 6BVS40 Bed Mill, 15″ x 60″ Table, 5 HP – NEW

Standard Features…
Powerful 5 Hp spindle drive motor
Mechanical variable speed drive with 2 speed ranges
Hardened and ground spindle with NT40 taper
Hardened and chromed quill with 5″ travel
CP4 ABEC7 angular contact spindle bearings
C7 double nut X/Y/Z axes 1.26″ diameter ballscrew
Hardened and ground table surface
Ground T-slots to provide accurate reference edge
Hardened and ground, square X/Y ways
Turcite B coating on saddle X/Y axes ways
Meehanite castings for superior rigidity and wear resistance
Stainless steel front Y axis way cover
Rubber Z axis and rear Y/Z axes way covers
Automatic lubrication with alarm with alarm
Transformer
Long arm halogen work light
Coolant system with pump
Tools, toolbox and parts
Models
6BVSCNC40
SUP6BVCNCS40
Table Size
15″ x 60″ (380x1524mm)
15″ x 60″ (380x1524mm)
Table Load Capacity
1,800 lbs. (817kg)
1,800 lbs (817kg)
Number of T-Slots
3
3
T-Slot Width
.709″ (18mm)
.709″ (18mm)
T-Slot Center Distance
3.15″ (80mm)
3.15″ (80mm)
Table Ways (X Axis) Turcite B coated
Dovetail
Dovetail
Bed Ways (Y Axis) Turcite B coated
Square
Square
Column Ways (Z Axis)
Square
Square
TRAVELS
Longitudinal (X Axis)
40.37″
40.37″ (1050mm)
Cross (Y Axis)
18.25″
18.25″ (500mm)
Vertical (Z Axis)
21.00″
21.00″ (600mm)
Quill Diameter
4.13″
4.13″ (105mm)
Quill Travel
5″
5″ (127mm)
Head Tilt (left or right)
90°
90°
Feedrate X & Y Axes
0-100 (in/min)
0-100 (in/min)
Feedrate Z Axis
0-75(in/min)
0-75 (in/min)
X & Y Axes AC Motor with Brake
1 Hp
1 Hp
Z Axis AC Motor with Brake
1/2 Hp
1/2 Hp
SPINDLE
Motor
5 Hp (mechanical V.S.)
5 Hp (Inverter V.S.)
Spindle Speeds (Infinitely Variable)
70-4300 rpm
65-5160 rpm
No. of Speed Ranges
2
2
Low Gear Range
70-500 rpm
65-590 rpm
High Gear Range
570-4300 rpm
570-5160 rpm
Spindle Taper
NMTB 40
NT 40
Quill feed in/revolution (mm/revolution)
.0016/.003/.006 (0.04/0.08/0.015)
.0016/.003/.006 (0.04/0.08/0.015)
CONSTRUCTION
Height
85.43″
85.00″ (2170mm)
Working Width
131″
131″ (2360mm)
Working Depth
90″
90″ (1950mm)
Width Across Column Ways
11.73″
11.73″ (298mm)
Length of Saddle on Bed
47.24″
47.24″ (1200mm)
Width Across Bed Ways
20.47″
20.47″ (520mm)
Spindle Nose to Table
3.93″-27.55″
3.93″-27.55″
Center of Spindle to Column ways
20.47″
20.47″ (520mm)
Floor to Table Surface
37″
37″ (940mm)
Table to Column Ways
2.05″-21.73″
2.05″-21.73″ (52-552mm)
Ball Screw Dia./Pitch
1.26″/.2″
1.26″/.2″ (32/5mm)
Ball Screw Class
C7
C7
Gross Weight (approximately)
6,600 lbs (3000kg)
6,600 lbs (3000kg)
