NEW CHICAGO SB

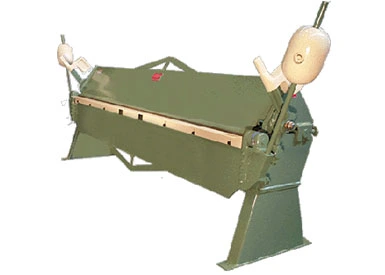

Standard Hand Brakes
All Hand Brakes are designed for accurate and economical bending of standard and special design forms. Ideal for bending mild steel with a 1 inch minimum flange to the rated capacity of the machine. Capable of 1/4 inch reverse bends on lighter material.
ACCESSORIES:
Back Gauge – 25 1/2 inch travel
Insert Bar – 1/4 inch

Model Number
Bending Length
Capacity Mild Steel
Capacity Stainless Steel
Shipping Weight
Dimensions-L
Dimensions – W
Dimensions- H
SB 412
48.5″
12 GA.
16 GA.
1800
90″
53″
60″
SB 612
73″
12 GA.
16 GA.
2275
117″
53″
60″
SB 812
97″
12 GA.
16 GA.
3300
141″
56″
65″
SB 816 (Old)
97″
16 GA.
20 GA.
2100
140″
51″
62″
SB 1014
121″
14 GA.
18 GA.
3860
165″
56″
65″
SB 1016
121″
16 GA.
20 GA.
3400
165″
53″
64″
SB 1218
145″
18 GA.
22 GA.
4200
189″
56″
65″
