USED ERCOLINA TOP BENDER WITH DIES

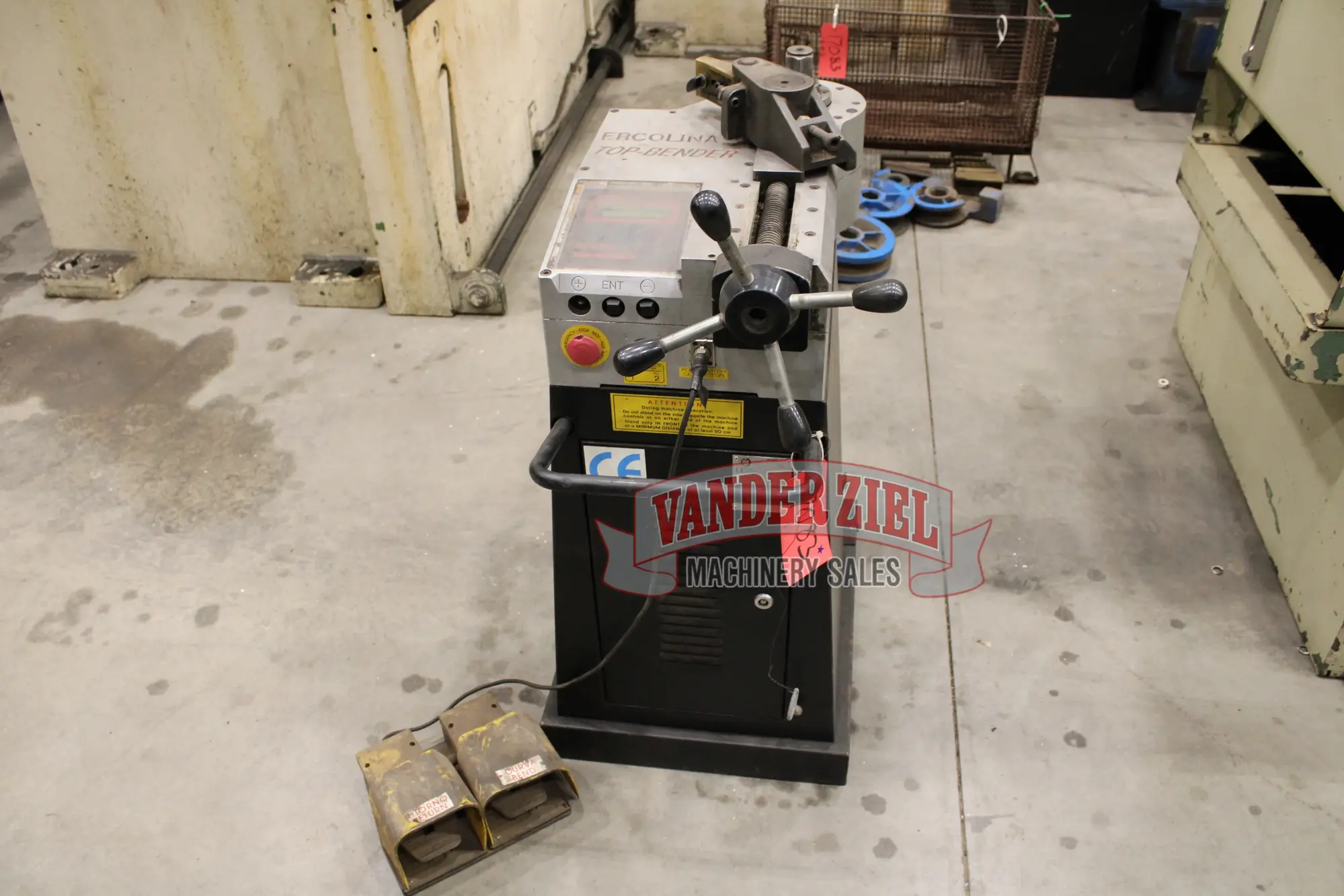

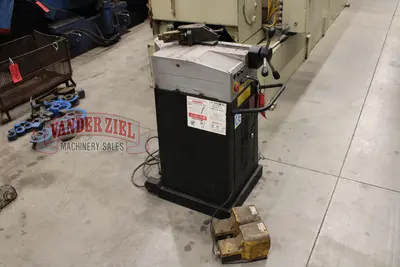

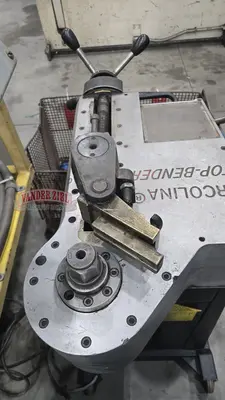

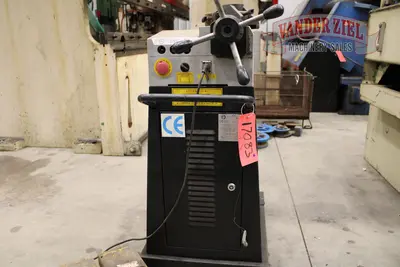

Ercolina 2" Tube Bender, Model Top Bender with Dies
Asset 17083
Serial # 5980172
Machine Capacities
Maximum Material Diameter        Maximum Thickness
Pipe 2" ID                                          Schedule 40
Mild steel tube 2 1/2"                        .120
Stainless steel 2 1/2"                          .157
Hydraulic tube 2 1/2"                         .065
Hard copper and aluminum 2 1/2" .187
Round solids 1 1/2"                            NA
Rectangular solids 1/2" x 2"           NA
Rectangular tube 1" x 2"               .120
Square tube 2" x 2"                        .125
Square solids 1 1/4" x 1 1/4"              NA
All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile
materials reduce machine capacity.  Consult supplier for material specifications.
Dimensions and

Specifications
Length x Width x Height 27" x 20" x 39"
Bending speed 1.2 RPM
Motor 220V 1ph
Minimum and Maximum CLR 1/4" - 11 7/8"
Bending angle range 0 to 210◦
Weight 430 lbs.

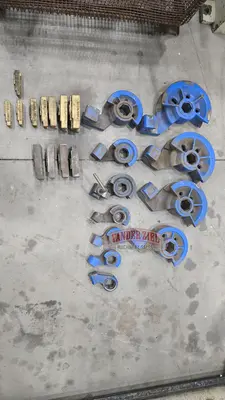

Center form Dies Provided

R130 2" 60

R130 1.5" 88

R100 1.5" 48

R120 2" 50

R90 1.25" 47

R67 1"

R67  7/8" 22

R56 .75"

R46 7/8" 22

R46 1/4"

R36 3/8"

Counter Bend Dies
Ercolina 2", 1 1/2", 1 1/4", 1", 3/4", 2) 7/8", 1/2"
Off Brand 2", 1 1/2", 2) 3/4"
Preliminary Specifications - Subject to Verification
