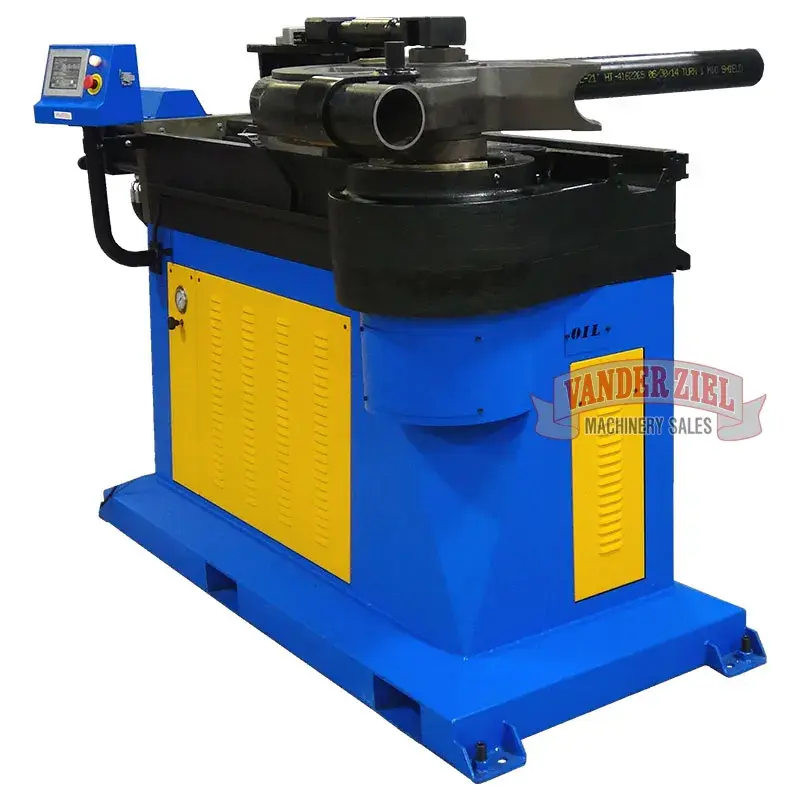

Ercolina TB180 Top Bender with 6" Tube or 6" Sch. 40 Pipe Capacity. Control offers Multiple Program Storage with Individual Bend Angle and Springback Memory, Variable Bend Speed

Ercolina TB180 Top Bender with 6" Tube or 6" Sch. 40 Pipe Capacity. Control offers Multiple Program Storage with Individual Bend Angle and Springback Memory, Variable Bend Speed
SKU #1425013
Ercolina's TB180 Top Bender is ideal for producing consistent quality bends in larger pipe, tube, squares, solids and other profiles.
Key Features

Tube capacity 6" .120 wall

Pipe capacity 6" Sch. 40

Square tube capacity 4"

Maximum CLR (standard machine) 23-1/2"

Maximum CLR (machine with case extension) 31-1/2"

Bend to CLR as small as 3D or 4.5 CLR

Touch screen programming of bend angle with system diagnostics in multiple languages

Quick-change tooling system

Digital display of bend angle

Material spring back compensation

Hand-held remote control of bend, return and emergency stop functions

Counterbending die positioning monitored electronically for accuracy and repeatability

Heavy-duty steel gear case

Optional hydraulic clamping system available
